10k 20k 30k 100k 200k 300k High - Frequency Uninterrupted Power Supply Online UPS Lightweight

Minimum Order Quantity : 2PCS Modular UPS Price : 1-10000 USD
Packaging Details : Wooden Packing for Modular UPS Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000PCS Per Month for Modular UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: MPS9335C 10-300KVA Modular UPS

Detail Information

Product: High Frequency Online UPS-Modular UPS Capacity: 10kva-30kva
Output Voltage: 380/400/415VAC Loads: 3Phase Unbankanced Loads
LCD Display: 13 Type Languages Transfer Time: 0ms
Power Factor: 1.0 Parallel Function: 6PCS UPS
Application: Uninterrupted Power Supply For Precision Equipment
High Light:

uninterruptable power supply


ups power supply

Product Description

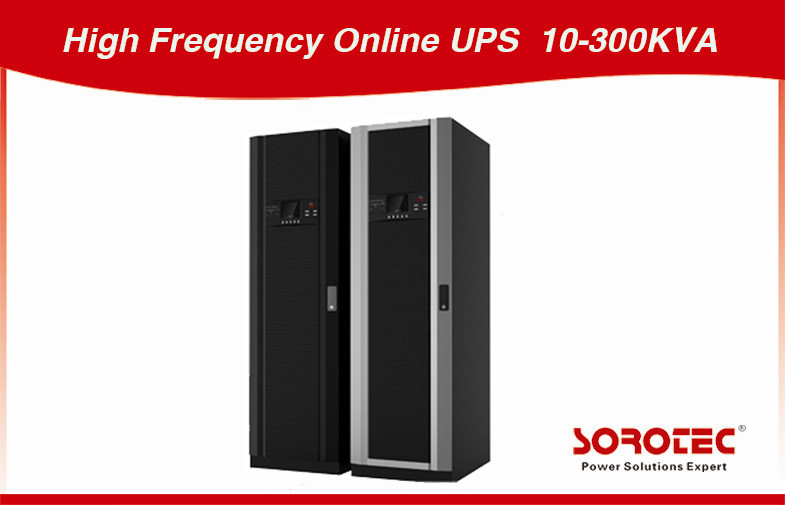

10k 20k 30k 100k 200k 300k High - Frequency Uninterrupted Power Supply Online UPS Lightweight



MPS9335C series High Frequency Online UPS 10-300KVA (3Ph in/3Ph out)

is extramely  flexible.the concept of power modular designing can be easy removed at runtime and installed without affecting  sysytem operation and output ,implement investment planning with  the need to expand,allowing users to achieve dynamic growth with business development,it saves customers coasts for initial equipments purchasing, future expansion.  when user estimated UPS capacity ,often underestimated  or high expected ,MPS9335C series power can slve the above problems effectively .help user to carry out construction investment in phase under the condition  that future development direction is not clear.When users want to add load to the UPS,only adding the required number of modules for expansion.




Key Features:

  •  Easy-to-install, Superior energy saving  ,Easy-to-maintain, Easy-to-modify
  • Extra large LCD that can display 12 language
  • Provide large LCD touch screen (optional)
  • Each UPS modules provide 4.5KW charge capacity. equivalent to 10 to 12A
  • Advanced DSP full digital control technologies realize higher system stability, online capacity expansion and maintenance
  • Advanced distributed active parallel technology realizes parallel operation of 4 UPS
  • Super wide input voltage & frequency ranges suiatable for severe grid environment
  • Intelligent battery management maintains battery auto  to prolong the battery life
  • The machine system for modular structure, Max.10 pcs module's   and the biggest single module to 30 kw
  • UPS power module supporting hot swappable, capacity upgrade extremely simple.
  • Super ability for overload and short circuit, ensure the system stability and safety under the limit state of system





Technical Specifications of Modular UPS, MPS9335 10-300KVA:

Model MPS9335 10-300KVA
Capacity 10-300KVA
Main input
Input voltage 380V/400V/415AC(Optional South America 208v)
Input Frequency Range 50/60Hz
Power Factor Full load>0.99 ,Half load >0. 98
THDi THDi <3%
Input power soft-start fantion 5-30s settable
Input Voltage Ranges 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40%
Frequency Range 40-70Hz
Battery Voltage ±240VDC(Default),12V Battery30-40pcs can be choose
Charge Voltage accuracy ± 1%
Bypass Input voltage 380/400/415VAC 3-phase 4-wire
Voltage Ranges Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software
Overload Capacity 150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms
Inverter Output Voltage 380/400/415VAC 3-phase 4-wire
Voltage Accuracy ± 0.5%(balanced load), ± 1% (unbalanced load)
THDi THD<1%(linear load), THD<3%(nonlinear load)
Power Factor 0.9
Three Phase Angle accuracy 120°c ± 0.5°c
Current Crest Ratio 3:1
Overload Capacity 110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time 0ms,15ms(ECO Mode)
Frequency 50Hz/60Hz (Settable)
Mains synchronization range ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection Level IP20
Communication Ports RS232,RS485,dry contact,SNMP card,EPO,generator port
System efficiency > 96% at load above 50%, >95% at load above 25%
Operation Temperature 0-40 °c
Storage Temperature -25 °c -70 °c (without battery)
Humidity 0-95%(no-condensing)
Noise(dB) 55-62dB,Adjusted with load
  5 module cabinet module :RMS050/10, RMS100/20, RMS150/30 150KG
  10 module cabinet module :RMS100/10, RMS200/20, RMS300/30 150KG
  module :PM10 10KVA power module :20KG
Weight module :PM20 20KVA power module :21KG
  module :PM30 30KVA power module :32KG
Dimendion(W XD XH)mm 5 module cabinet 600X1400X850
10 module cabinet 600X2070X850
power module 440X132X660(10KVA/20KVA/30KVA)



Typical Application:

Application IDC(Internet Data Center),computer center,ISP(Internet Service Provider),Telecom,Finance bank and securities,Tax,hospital system,industrial automation,precision equipment,etc



1. Installation :  Top or bottom cabling, no need of input cabling cabinet.

2.Maintenance:  Full front access, UPS, failed part can be replaced shortly

3. Modified:    The number of batter y cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the batter y cell can be replaced in time when it fails without interrupting the normal operation of UPS.
