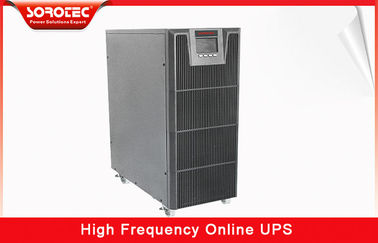

10KVA 9KW Double Conversion High Frequency Online UPS for Personal Computer

Minimum Order Quantity : 1pcs Price : 1-500 USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : Western Union, L/C, T/T
Place of Origin: China Brand Name: SOROTEC /OEM
Certification: CE,ROHS,RSO9000 Model Number: HP9116C PLUS 1-20KVA

Detail Information

Product Name: High Frequency Online UPS Phase: 1Ph In/1Ph Out
Capacity: 10kva /9kw Input Voltage Range: 120~275VAC (±3VAC)
Output Voltage: 220±1%VAC Rated Frequency: 40-70Hz(50/60hz Auto-sensing)
Protection: Overload,output Short Circuit Application: Personal Computer
Size: 248X500X565mm Weight: 62Kg
High Light:

ups uninterruptible power supply

,

pure sine wave ups

Product Description



10KVA 9KW Double Conversion High Frequency Online UPS For Personal Computer





Typical application

Data centre, bank station, network , communication equipment, office, automatic equipment,

monitor equipment, control system







Key Features:



Highly flexible and extendable&Input topology design&Charge current can be adjust

  • Battery voltage can be choice depend on capacity
  • Easy to get more back up time and lower system invests
  • Convenience to save cost of battery
  • Intelligent battery monitors
  • Standant charge current 4A
  • Support more discharge time and more capacity battery for 8A charger
  • Support three phase input or single phase input for three phase UPS
  • Super wide input voltage and frequency range suitable for bad power electirc environment
  • Digital control DSP technology and best power component make the system safe and reliable



Multifunction friendly design &Advanced parallel technology&Flexible strategy

  • Stable parallel control technology make sure current sharing to 1%
  • Select trip technology can avoid and isolation system fault then improved system availability
  • Flexible extension capacity and redundance management that can satisfy all kinds of requirements
  • Support maximum 3 units for parallel working
  • On line mode provides higher system availability
  • High efficiency mode provides more economic operation
  • Frequency conversion provides more stable output





Output power factor up to 0.9 &The efficiency up to 94%

  • Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.
  • Three phase input model support three phase PFC , input THDI<5%
  • Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
  • Efficiency up to 93.5%when take the 30%load
  • ECO mode efficiency up to 98%



Technical Specifications:



Model HP9116C Plus  6-10KVA
6KT 6KT-XL 10KT 10KT-XL
Rated Power 6KVA/5.4KW 10KVA/9KW
Rated Voltage 220/230/240VAC
Rated Frequency 40-70Hz
Input
Voltage Range 120~275VAC (±3VAC)
THDi <5%
Power Factor ≥0.99
Output
Voltage Regulation 220±1%VAC
Frequency Regulation 50/60 Hz±0.2Hz
Waveform Pure sine wave
Power Factor 0.9
Voltage Distortion Linear load<2% Non-linear load<4%
Overload Capability 105%~125% for 1 min;125%~150% for 30 s; >150% for 0.5 s
Efficiency >94%
Current Crest Ratio 3:01
Transfer Time 0ms (AC mode→Battery mode)
Battery
DC Voltage 180VDC 192/240VDC 180VDC 192/240VDC
Recharge Time 5hours to 90% of capacity
Recharge Current 1A 4.2A 1A 4.2A
Display
LCD Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Communication
Interface Smart RS232, SNMP(Optional),USB (Optional)
Environment
Operation Temperature 0~40℃
Humidity 20~90% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <55dB
Physics Characteristic
Weight
(KG)
59 14 62 16
Dimensions: Wx D x H )mm 248X500X565 212X500X420 248X500X565 212X500X420







Why Choose SOROTEC ?



The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.



We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.







1.Output wave when take the full load

This product provide pure sine wave output when take the resistance load.

...................................................................................................................................................

2.About THDI

Because this series product is not rectifier function, so can’t make the THDI when use it.

...................................................................................................................................................

3. About service

We are keep the most closely relationship with customers ,In order to satisfy the customer enjoy the most

perfect after- sales service.

...................................................................................................................................................

4.About SORO technology

We have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research ,developing new product, perfecting the product . We are provide invests 10% of its annual revenue in researchand development ,aims to offer customers in order to suited to their ever-changing environment enabling themto benefit from the last technological developments.

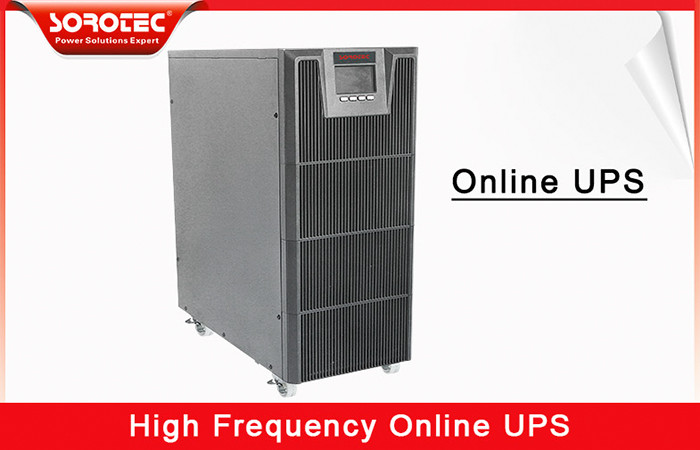

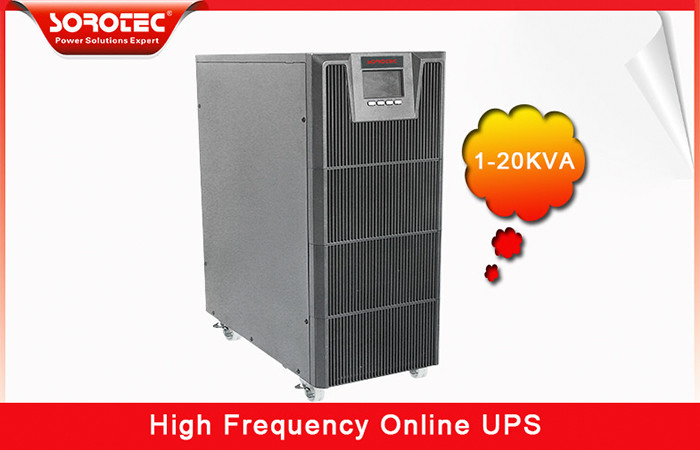

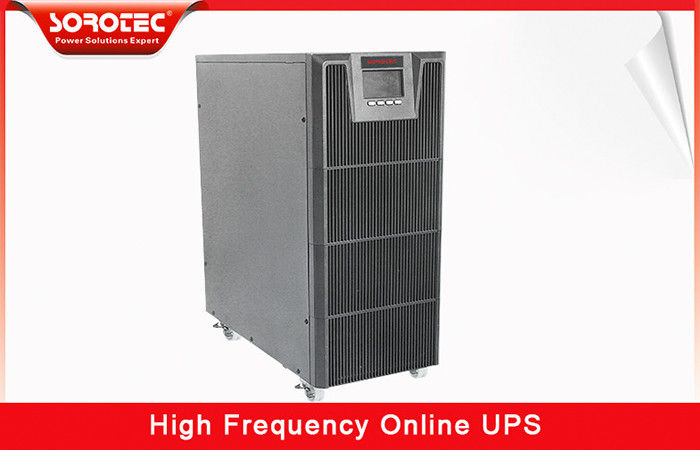

10KVA 9KW Double Conversion High Frequency Online UPS for Personal Computer 0

10KVA 9KW Double Conversion High Frequency Online UPS for Personal Computer 1
