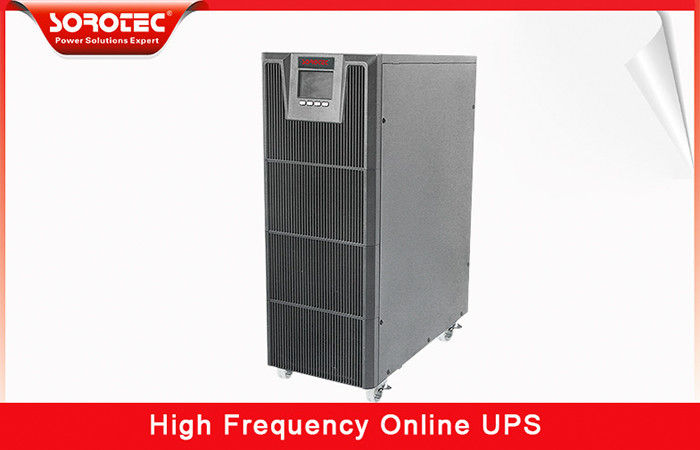

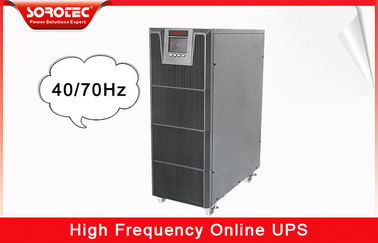

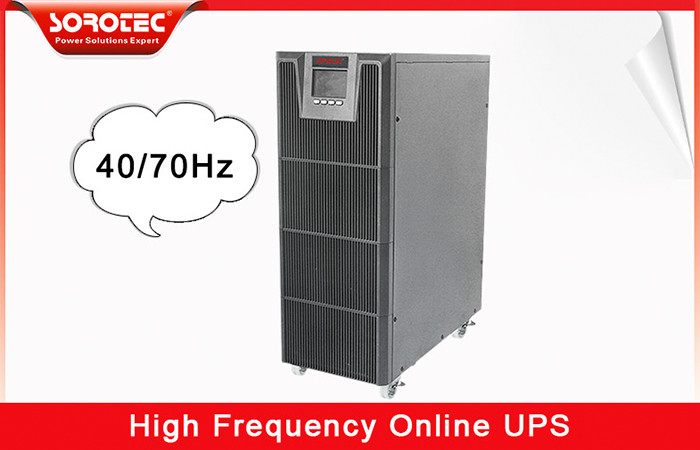

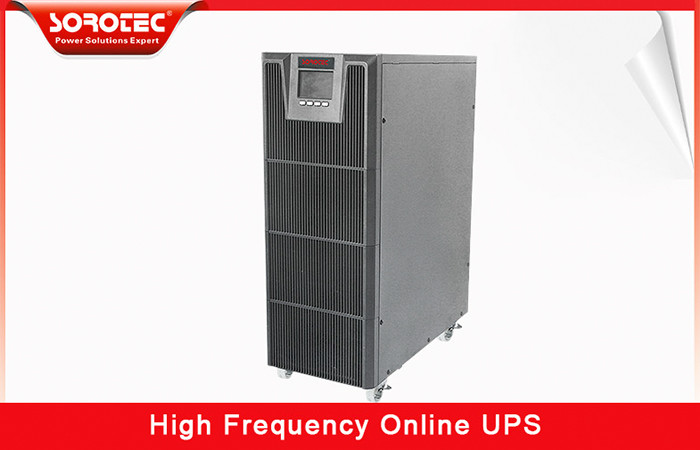

10KVA uninterupted power supply , LCD Display ups data center with Battery

Minimum Order Quantity : 2PCS High Frequency Online UPS Price : 1-1000USD
Packaging Details : Standard Exported Cartons and Pallets for High Frequency Online UPS Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000PCS/Month for High Frequency Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: HP9116C Plus 6-10KVA Online UPS

Detail Information

Product Name: 10KVA UPS Uninterruptable Power Supply UPS Capacity: 10KVA/9KW
Power Factor: 0.9 Input Voltage: 120-275VAC(±3VAC)
Frequency: 50/60HZ Battery Voltage: 192VDC
Recharge Current: 1A/1.2A Display: LCD
Suitable: Data Centre, Bank Station, Network ,communication Equipment, Office,
High Light:

pure sine wave ups


high frequency ups

Product Description

10KVA uninterupted power supply , LCD Display ups data center with Battery


Product Name UPS Uninterruptable Power Supply
Function Stable to output and Uninterrupted Power Supply for loads
Advantages High Efficiency ,Small Size,Light Weight,Low Noise ,Stable to output
Model HP9116C PLUS
Capacity 6kva-10kva
Output Power Factor 0.9
Interface Smart RS232,SNMP(optional),USB(optional)
Service oem/odm produce and sample are available,welcome to inquiry us!

Data centre, bank station, network , communication equipment, office, automatic equipment,monitor equipment,control system




Key Features

1.High power factor 0.9 can take more loads

2.Optional battery voltage depend on load capacity

3.Frequency conversion more stable to output

4.High Efficiency Operation Mode Low comsumption

5.Stable parallel technology support 3 units for parallel working

6. Digital control DSP technology make the system more reliable

7.Three phase input mode support three phase PFC,input THDI<5%

8.Wide input voltage and frequency range adapt to bad grid environment

9.High efficiency up to 94% when take 30% loads,ECO mode efficiency up to 98%

10.Select trip technology can avoid and isolation system fault ,improve system availability



High Frequency Online UPS HP9116C PLUS 6-10KVA

Model HP9116C 6-10KVA
Rated Power 6KVA/5.4KW 10KVA/9KW
Rated Voltage 220/230/240VAC
Rated Frequency 40-70Hz
Voltage Range 120~275VAC (±3VAC)
THDi <5%
Power Factor ≥0.99
Voltage Regulation 220±1%VAC
Frequency Regulation 50/60 Hz±0.2Hz
Waveform Pure sine wave
Power Factor 0.9
Voltage Distortion Linear load<2% Non-linear load<4%
Overload Capability 105%~125% for 1 min;125%~150% for 30 s; >150% for 0.5 s
Efficiency >94%
Current Crest Ratio 3:01
Transfer Time 0ms (AC mode→Battery mode)
DC Voltage 180VDC 192/240VDC 180VDC 192/240VDC
Recharge Time 5hours to 90% of capacity
Recharge Current 1A 4.2A 1A 4.2A
LCD Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Interface Smart RS232, SNMP(Optional),USB (Optional)
Operation Temperature 0~40℃
Humidity 20~90% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <55dB
Physics Characteristic
59 14 62 16
Dimensions: Wx D x H )mm 248X500X565 212X500X420 248X500X565 212X500X420



10KVA uninterupted power supply , LCD Display ups data center with Battery 0
