1KVA to 3KVA dual conversion ups power supply for computer , Pure Sine Wave

Minimum Order Quantity : 2PCS High Frequency Online UPS Price : 1-1000USD
Packaging Details : Standard Exported Cartons and Pallets for High Frequency Online UPS Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000PCS/Month for High Frequecy Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: HP9116C Plus 1-3KVA Online UPS

Detail Information

Product Name: Uninterrupted Power Supply (UPS) Product Type: High Frequency Online UPS
UPS Power: 1-3KVA Power Factor: 0.9
Rated Frequency: 40-70HZ Input Voltage: 115-300VAC
Output Voltage: 220/230/240vac Input Phase: 1Ph In/1Ph Out
UPS Function: Continous Power Supply And Stable Output Application: Personal Computer
High Light:

ups uninterruptible power supply

,

pure sine wave ups

Product Description



1KVA to 3KVA dual conversion ups power supply for computer , Pure Sine Wave



Product Name High Frequency Online UPS
Product Model HP9116C PLUS
Capacity 1-3Kva
Power Factor 0.9
Input Voltage 115-300VAC
Waveform Pure Sine Wave
Frequency Range 40-70HZ
Application personal computer,network,industry,medical,telecom,security.etc





Multifunction friendly design

Stable parallel  control technology

  1. Support maximum 3 units for parallel working Flexible strategy
  2. On line mode provides higher system availability
  3. High efficiency mode provides more economic operation
  4. Frequency conversion provides more stable output
  5. Select trip technology can avoid and isolation system fault then improved system availability
  6. Flexible extension capacity and redundance management that can satisfy all kinds of requirements



Highly flexible and extendable

Battery voltage can choose depend on capacity

  1. Convenience to get more back up time and lower system invests
  2. Convenience to save cost of battery
  3. Intelligent battery monitors Charge current can be adjust
  4. Standant charge current 4A
  5. Support more discharge time and more capacity battery for 8A charger Input topology design
  6. Support three phase input or single phase input for three phase UPS
  7. Super wide input voltage and frequency range suitable for bad power electirc environment
  8. Digital control DSP technology and best power component make the system safe and reliable



Higher function

Output power factor up to 0.9,The efficiency up to 94%

  • Can take more load, if you take same load that can get higher reliability.
  • Three phase input model support three phase PFC , input THDI<5%
  • Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
  • Efficiency up to 93.5%when take the 30%load
  • ECO mode efficiency up to 98%



Mainly application

Data centre, bank station, network , communication equipment, office, automatic equipment,

monitor equipment, control system





Technical Parameters

Model HP9116C Plus 1-3KVA
1KT 1KT-XL 2KT 2KT-XL 3KT 3KT-XL
Rated Power 1KVA/0.9KW 2KVA/1.8KW 3KVA/2.7KW
Rated Voltage 220/230/240VAC
Rated Frequency 40/70 Hz
Rated Frequency
Voltage Range 115~300VAC (±3VAC)
THDi 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ)
Power Factor > 0.98
Output
Voltage Regulation 220±2%VAC
Frequency Regulation 50/60 Hz±0.05Hz
Power Factor 0.9
Voltage Distortion Linear load<4% Non-linear load<7%
Overload Capability 110%~150% for 47-25 sec;150%~200% for 25 -300ms; >200% for 200m
Current Crest Ratio 3∶1
Transfer Time 0ms (AC mode→Battery mode)
Efficiency(on line mode) 89% 90% 90%
Battery
DC Voltage 24 VDC 36 VDC 48 VDC 72 VDC 72VDC 96VDC
Recharge Time 7hrs to 90% of capacity
Recharge Current 1A 6A 1A 6A 1A 6A
Display
LCD Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate.
Communication
Interface Smart RS232, SNMP(Optional),USB (Optional)
Environment
Operation Temperature 0~40℃
Humidity 20~90% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <45dB <50dB
Physics Characteristic
Dimensions: Wx D x H )mm 145X345X229 192X393X328

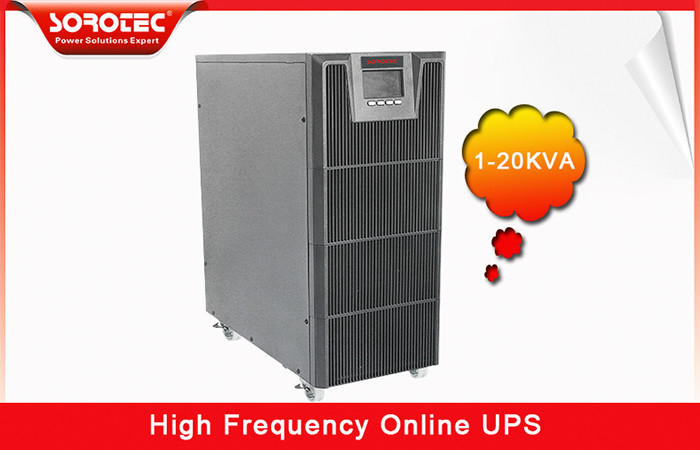

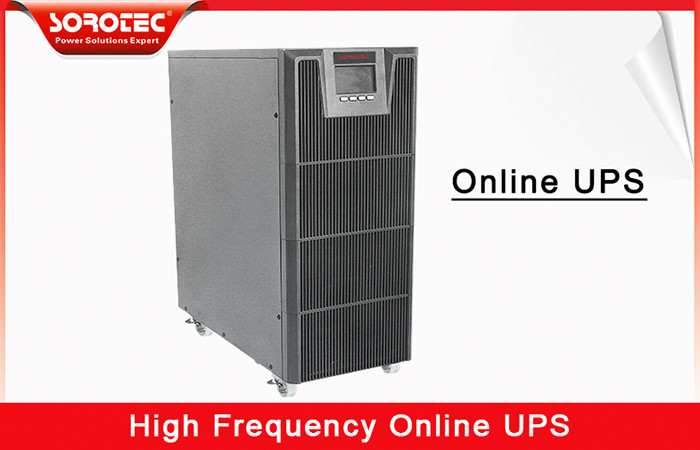

Product Show:

1KVA to 3KVA dual conversion ups power supply for computer , Pure Sine Wave 0
