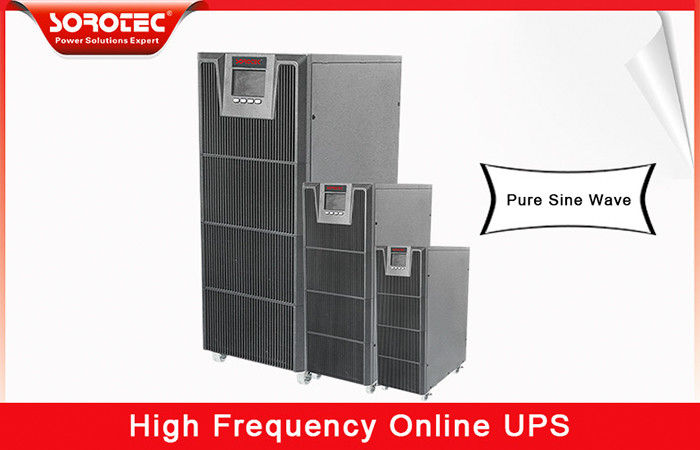

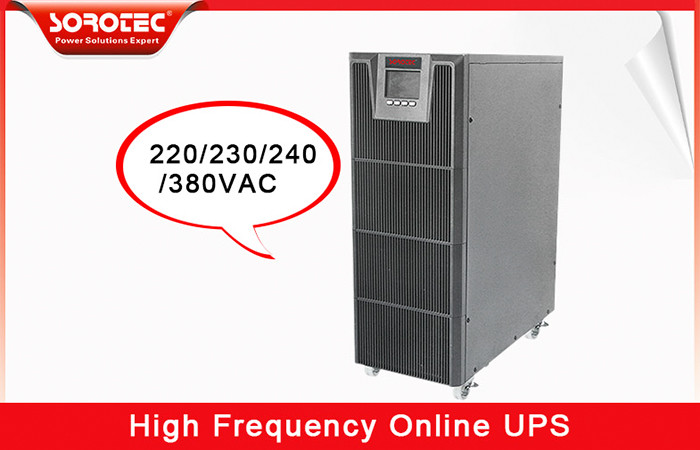

220V / 230V 40HZ - 70HZ High Frequency Online UPS for Bank Station

Minimum Order Quantity : 2PCS High Frequency Online UPS Price : 1-1000USD
Packaging Details : Standard Exported Cartons and Pallets for High Frequency Online UPS Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000PCS/Month for High Frequency Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: HP9116C Plus 6-10KVA Online UPS

Detail Information

Product Name: High Frequency Online UPS Power Supply Color: Black Color
Power Factor: 0.9 Input Voltage: 120-275VAC
Frequency: 40-70HZ Inbuilt Battery: 180VDC
Rated Power: 1KVA/0.9W Dimension: 248*500*565mm
Capacity: 1-20kva
High Light:

ups uninterruptible power supply


high frequency ups

Product Description

Highly Flexible And Extendable High Frequency Online UPS 9116C 1-3k


Product snapshot



Nominal frequency :40-70HZ

Output power factor: 0.9


Typical application

Date centre,bank station,network,communication equipment,office,automatic equipment,monitor equipment,control system.


Advanced Parallel Technology

1.Frequency conversion provides more stable output

2.Select trip technology avoid and isolation system fault

3.Flexible extension capacity and redundance management

4.On line mode provides higher system availability.

5.High efficiency mode provides more economic operation


Multifunction friendly design

1.Advanced parallel control technology make sure current sharing to 1%.

2.Flexible extension capacity and redundance management.

3.Select trip technology can avoid and isolation system fault .

4.High efficiency mode provides more economic operation.


Typical function

1.Intelligent battery monitors.

2.Charge current can be adjusted

3.Battery voltage optional depend on capacity.

4.Stable parallel control technology support 3 units for parallel working

5.More discharge time and more capacity battery

6.Support 3 phase input or 1 phase input for three phase UPS

7.Super wide input voltage and frequency range for bad power quality


Powerfull Function,Output PF.= 0.9

1.Output Power Factor 0.9 can take more loads

2.Three phase input model support three phase PFC

3.Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.

4.Efficiency up to 93.5%when take the 30%load,ECO mode efficiency up to 98%





Technical Parameters of High Frequency Online UPS HP9116C PLUS 6-10KVA

Model HP9116C 6-10KVA
Rated Power 6KVA/5.4KW 10KVA/9KW
Rated Voltage 220/230/240VAC
Rated Frequency 40-70Hz
Voltage Range 120~275VAC (±3VAC)
THDi <5%
Power Factor ≥0.99
Voltage Regulation 220±1%VAC
Frequency Regulation 50/60 Hz±0.2Hz
Waveform Pure sine wave
Power Factor 0.9
Voltage Distortion Linear load<2% Non-linear load<4%
Overload Capability 105%~125% for 1 min;125%~150% for 30 s; >150% for 0.5 s
Efficiency >94%
Current Crest Ratio 3:01
Transfer Time 0ms (AC mode→Battery mode)
DC Voltage 180VDC 192/240VDC 180VDC 192/240VDC
Recharge Time 5hours to 90% of capacity
Recharge Current 1A 4.2A 1A 4.2A
LCD Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Interface Smart RS232, SNMP(Optional),USB (Optional)
Operation Temperature 0~40℃
Humidity 20~90% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <55dB
Physics Characteristic
59 14 62 16
Dimensions: Wx D x H )mm 248X500X565 212X500X420 248X500X565 212X500X420

220V / 230V 40HZ - 70HZ High Frequency Online UPS for Bank Station 0
