220vac 48vdc 3000w DC Output Power Supply Solar Power System for Telecom Bse Station,Remote Monitoring

Minimum Order Quantity : 2PCS Price : 1000USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SHW48500

Detail Information

Type: 48VDC Solar Power System System: Off-Grid Solar System
Transfer: AC To DC Power Factor: 0.9
Phase: Single Phase Wave Form: Pure Sine Wave
Solar Power: 3000w With 50A Mppt Solar Charge Controller: Yes
With 50A 48VDC Rectifier Module: Yes With Solar Dc Power System Cabinet: Yes
With Monocrystal Solar Panel: Yes With Solar Panel Braket: Yes
Application: Telecom Base Station AC Input Voltage Range: 90-290vac
Frequency: 45-65hz (standard 50/60hz) Display: LCD&LED
Protection: Overload Overcharge Over-temperature Altitude: 0-3000m
With Monitoring Module: Yes Maximum Input Current: 50A(max:61A)
High Light:

telecom dc power systems

,

telecom battery backup systems

Product Description

220vac To 48vdc 3000w DC Output Power Supply Solar Power System for Telecom  Bse Station



Brief Introduction

SOROTEC SHW48500 Series is an off-grid type 48VDC  Solar power system which support 220vac input and 48vdc output power supply.it adopts advanced Maximun Power Point Tracking and MCU microprocessor control technology to make sure the system more reliable and more economical to make full use of solar energy to provide reliable long time back up 48vdc power supply for outdoor telecom equipments,traffic lights and so on  independent DC systems .





Execellent Dustproof and waterproof  Structure
According to the overall standard of design dust-proof and water-proof IP55 and with sun protection, heat insulation, roof ventilation,with waterproof and the filtration dust inlet, the cabinet front door shutters





Key Features

1.Adopt advanced MCU microprocessor control technology
2.Advanced MPPT Technology.High converting efficiency higher than 97% for
   minimizing energy loss.
3.Reversed current protection at night.over voltage and reverse polarity protection
4.Capable of selection different charging mode fo various types of batteries
5.Protection degree:IP55
6.Industy-leading power density compact size and high reliability
7.Doorframe designed with waterproof structure, posted on the seal and equipped

  with wateerproof lock in the door double insulation design
8.Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material,

  surfce coating anti-UV power
9.Suitable for outdoor installation
10.With remote monitoring system operation





Application

-Power plant or substation power for controlling,

-protection and automatic device,

-Emergency lighting,

-Communications,

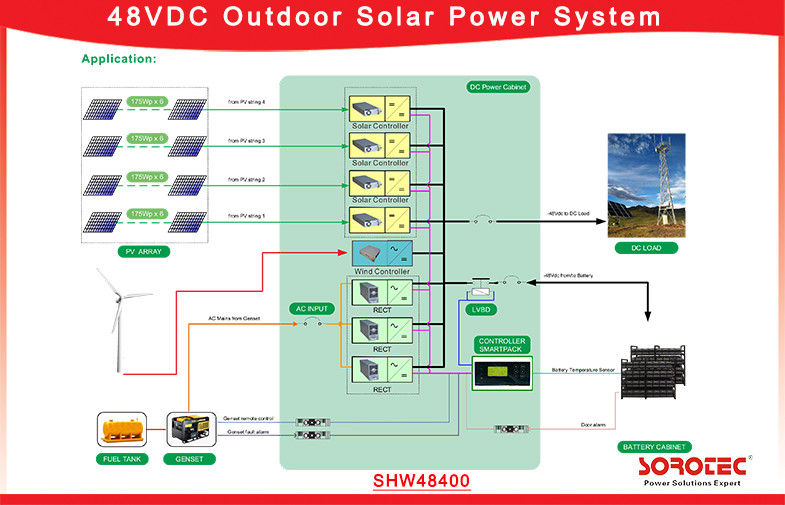

-steam turbine DC oil pump and so on .220vac  48vdc 3000w DC Output Power Supply Solar Power System for Telecom Bse Station,Remote Monitoring 0



Remote Monitoring System Interface

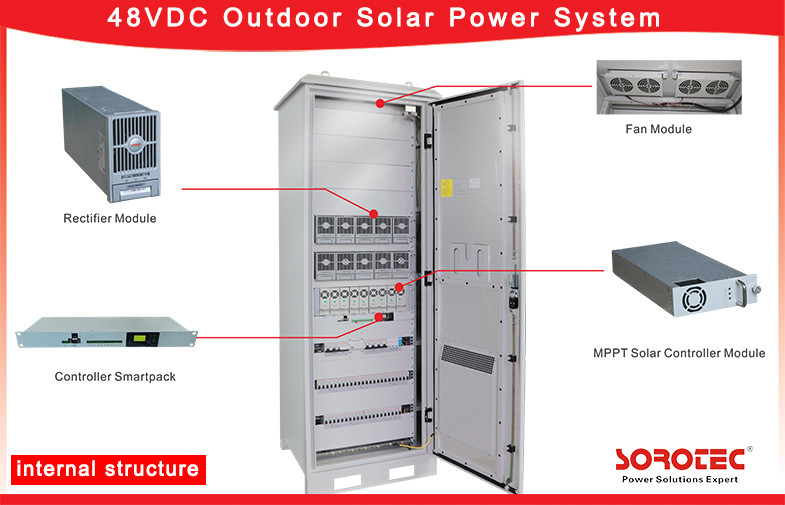

220vac  48vdc 3000w DC Output Power Supply Solar Power System for Telecom Bse Station,Remote Monitoring 1

Technical Parameter



SHW48500 Solar System Rectifier Module(1-10) MPPT Solar Charge Controller(1-10)
INPUT
MPPT Range @Operating Voltage 60 ~150VDC
Maximum PV Array Power 3000W
Maximum Input Current 62A
OUTPUT
Nominal Battery Voltage 42-58VDC
​Maximum Charge Current 50A(max:61A)
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
PROTECTION
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
INDICATORS
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
WIND CONTROLLER:
Input Power 1KW/2KW
Input Voltage 150-300VAC
Output Voltage 48VDC
Ouput Current 30A/50A
ENVIRONMENT
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m

220vac  48vdc 3000w DC Output Power Supply Solar Power System for Telecom Bse Station,Remote Monitoring 2
