6 Pulse 12 Pulse Low Frequency 3 - Phase Online UPS with Maintain Bypass Switch

Minimum Order Quantity : 2PCS Price : 10000USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: GP9335C 10-800KVA

Detail Information

Type: Low Frequency Online UPS Capacity: 10-800KVA
Phase: Three Phase Output Voltage: 380/400/415VAC
Input Voltage: 380/400/415VAC 3-phase 4-wire DC Voltage: 360/384432/480VAC
Output Power Factor: 0.9 Communication Port: SNMP Card,Parallel Card,Dry Contact
Parallel Function: 6PCS UPS Frequency: 50/60HZ
Application: Industry,data Center,servers ...... OEM Service: Available
High Light:

backup power supply


ups power supply

Product Description

6 Pulse 12 Pulse Low Frequency 3 - Phase Online UPS with Maintain Bypass Switch


Quick Detailes:

SOROTEC GP9335C Series Low Frequency Online UPS 10-800KVA (3Ph in/3Ph out)

Model: 10-800KVA

Nominal Voltage: 380/400/415VAC

Nominal Frequency:50/60HZ

Output Power Factor: 0.9

Parallel:maximum 6PCS UPS

Indicated Language:12 types(En.Ru.Sp.Fr...)



Key Features:

1. On-Line Dual Conversion, fully isolating the influences  of  power   grid pollution and power failure

    from  utility power supply and diesel generator to load.


2. Advanced 6th generation DSP and full digital control technologies to realize higher system stability.


3. Extra strong capability to withstand output overload  and short circuit,  ensuring the system stability

   and system safety  under extreme conditions.


4. Intelligent battery management maintains battery , automatically to prolong the battery life.


5. Advanced distributed active parallel technology can realize parallel operation of 6 UPS units without

    the need of centralized bypass cabinet.


 6. Extra  widely input voltage  and frequency range make it  adapt  to severe  power  grid  environment.


7. Rated at  0.9  output power factor,  more applicable to server computer and network center that use

     PFC technology in a large scale, and deliver more     Active power than conventional UPS.


8. Standard input/output filter improves the system EMC performance.


9. 6-inch extra large LCD that can display 12 language( Chinese .English.Russian.Spanish.French ..)


10. Layered independently - sealed ventilation channel and redundant fan, circuit boards with protective paints and a

     dust  filter embedded make it highly   efficient to dissipate heat and protect the product effectively under severe environment.


11. Multi input harmonic suppressing technology improves the utility rate of electric Power Output isolation

      transformer with zero phase shift reduces the influences of Neutral to Ground voltage and load harmonic current to inverter



Technical Specifications:

GP9335C 120-800KVA
Rectifier Type 6p 12p 6p 12p 6p 12p 6p 12p 6p 12p
Rated Nominal 120KVA/108KW 160KVA/144KVA 200KVA/180KW 300KVA/270KW 400KVA/36W
Rated input voltage 380/400/415VAC 3-phase 4-wire
Rated frequency 50/60HZ
Input parameters
Input voltage range ±25%
Input frequency range 45Hz~65Hz
Input soft start function 0-100% 5-300settable
Input power factor >0.98(If harmonic filter is added)
Input harmonic current (THDi) <4.5%(If harmonic filter is added)
Bypass voltage range -20%~+15%
Bypass frequency range 50/60HZ±10%
Output parameters
Inverter output voltage 380/400/415VAC 3-phase 4-wire
Voltage stability ±1%(Steady status), ±3%(Transient status)
Frequency 50/60Hz
Mains power synchronization window ±5%
Actually measured frequency accuracy (internal clock) 50/60Hz±0.01Hz
Output power factor 0.9(Output 90kW per 100kVA)
Transient response time <5ms
Inverter overload capability At 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s


Short circuit current from inverter

3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds
Maximum Bypass capability 1000% for 100ms


Phase shift

With 100% balanced load <1°
With 100% imbalance load <1°


Total harmonic

100% linear load <1%
100% non-linear load <3%
System efficiency (full load) Up to 94% (inverter efficiency is up to 98%)
Rectifier output parameters
Charger output voltage stability 1%
DC ripple voltage ≤1%
Operating environment
Operating temperature range 0~40℃
Storage temperature -25~70℃(Without battery)
Relative humidity 0~95% No condensation
Maximum operating height ≤Elevation 1000m, for elevation above 1000m, derate by 1% for every increase of 100m
Noise (1m) 58-68dB
Protection level IP20
Standard Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design and Test IEC62040-3
Physical parameters
Weight (kg) 980 1420 1200 1750 1350 2000 1600 2200 2100 2750
Width(mm) 900 1250 1250 1640 1250 1640 1640 2280 2280 2280
Depth (mm) 855 855 855 855 855 855 855 855 855 855
Height (mm) 1900 1900 1900 1900 1900 1900 1900 1900 1900 1900



Mainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product

lines and large automation production and its control system. According to the special needs of users was improved, and used  in large

sports venues, conference room, theater and highway and railway tunnels metal halide lamp lighting system.

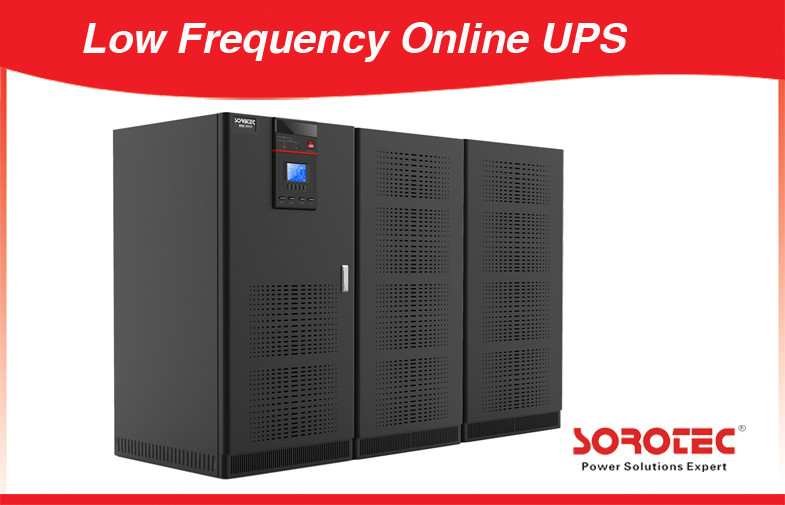

6 Pulse 12 Pulse Low Frequency 3 - Phase Online UPS with Maintain Bypass Switch 0

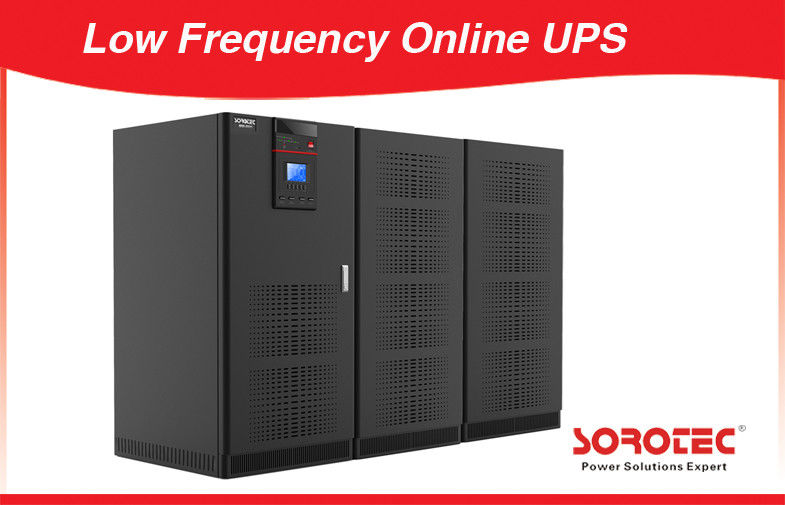

6 Pulse 12 Pulse Low Frequency 3 - Phase Online UPS with Maintain Bypass Switch 1
