|Minimum Order Quantity :||2PCS||Price :||10000USD|
|Packaging Details :||Standard Exported Cartons and Pallets||Delivery Time :||Within 15-30days after receiving your 30% TT deposit|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||3000PCS Per Month|
|Place of Origin:||China||Brand Name:||SOROTEC|
|Certification:||CE,ROHS,RSO9000||Model Number:||GP9335C 10-800KVA|
|Product Name:||GP9335C||Phase:||Three Ph/in Three Ph/out|
|Output Power Factor:||0.9||Capacity:||10KVA-800KVA|
|Nominal Frequency:||50/60HZ||Nominal Voltage:||380/400/415vac|
|Protection Level:||IP20||Weight:||980 -7390KG|
|Dimension(w*d*h):||900*855*1900MM||System Efficiency:||94% (Full Loads)|
|Application:||Data Center,industry,servers||Screen:||LCD Display|
pure sine wave ups,
uninterruptable power supply

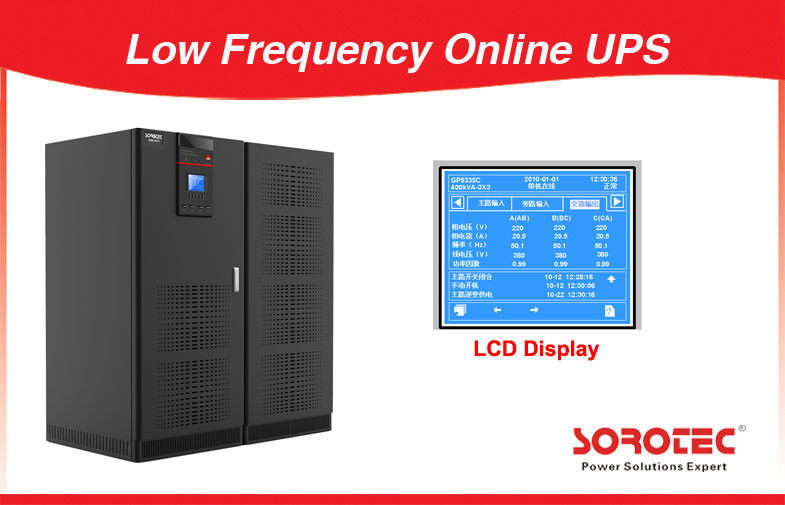

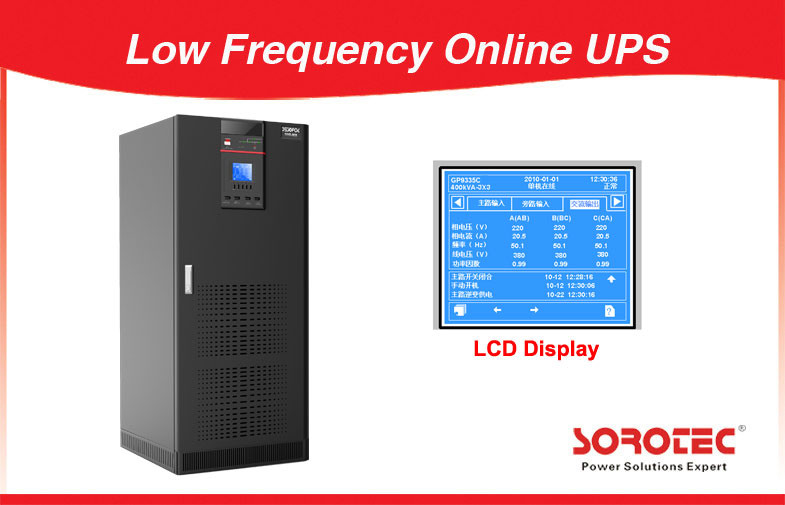

GP9335C 20kva ups pure sine wave with Perfect Battery Management System
High reliable UPS Power Solutions:
1.Hot back-up redundant system.Adopt two sets high reliable GP9335C series UPS,spare UPS in series with bypass of the main UPS,main and spare.
UPS can work alternately.
N+1 directly parallel redundant system.up to six modules in parallel .Any one can dropt out when it fault .Load power supply was not affected.Autobypass.
and maintenance bypass are built in each UPS.
3.N+1 concentration bypass parallel redundant system,Many GP9335C series UPS in parallel,Any one can dropt out when it fault .Load power supply was.
not affected.No bypass in the each nterior,adopts concentration bypass.
4.Parallel double bus system with STS static transfer switch.Double bus system adopts redundant UPS design,improves system‘s reliability and availability .
The rated is either N or N+1for each bus UPS capacity and the relative load.
1.Use advanced 6th generation DSP and full digital control technologies to realize higher system stability.
2.Output power factor is 0.9, carrying capacity than conventional UPS with 10% above, as users reduce investment cost.
3.Advanced distributed active parallel technology can realize parallel operation of 6PCS UPS units without the need of centralized bypass cabinet.
4.6-inch extra large LCD that can display 12 language (Chinese,English,Russian,Spanish,French and so on).
5.Extra wide input voltage and frequency range make it adapt to severe power grid environment.
6.Intelligent battery management maintains battery automatically to prolong the battery life.
7.Standard input/output filter improves the system EMC performance.
8.Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety under extreme conditions.
9.Layered independently-sealed ventilation channel and re-dundant fan, circuit boards with protective paints and a dust filter embedded make it highly efficient to dissipate heat and protect the product effectively under severe environment.
-inch extra large LCD that can display 12 language (chinese ,English,Russian,Spanish,Frenchand so on.
Excellent Electrical Performance :
Online double transform structure ,double DSP control technology .
GP9335C series UPS using real online double transform structure,this architecture is currently the best to solve the power structure,the framework can almost completely solve all the power problems.
Mainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product lines and large automation production and its control system. According to the special needs of users was improved, and used in large sports venues, conference room, theater and highway and railway tunnels metal halide lamp lighting system.
GP9335C series UPS for china's top product,nominal capacity from 120kva to 800kva ,had application in the key equipment for the power system protection,could provide high quality power ,with high level of availability and scalability,and invest iminimize yptal cost of ownership(TCO).
GP9335C Series Technical Specification:
|Rated input voltage||380/400/415VAC 3-phase 4-wire|
|Input voltage range||±25%|
|Input frequency range||45Hz~65Hz|
|Input soft start function||0-100% 5-300settable|
|Input power factor||>0.98(If harmonic filter is added)|
|Input harmonic current (THDi)||‹4.5%(If harmonic filter is added)|
|Bypass voltage range||-20%~+15%|
|Bypass frequency range||50/60HZ±10%|
|Inverter output voltage||380/400/415VAC 3-phase 4-wire|
|Voltage stability||±1%(Steady status),±3%(Transient status)|
|Mains power synchronization window||±5%|
|Actually measured frequency accuracy (internal clock)||50/60Hz±0.01Hz|
|Output power factor||0.9(Output 90kW per 100kVA)|
|Transient response time||<5ms|
|Inverter overload capability||
At 0.9 power factor, 110% for 1 hour, 125%
for 10 minutes and 150% for 60s
|3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds|
|Short circuit current from inverter|
|Maximum Bypass capability||1000% for 100ms|
|With 100% balanced load||<1°|
|characteristic||With 100% imbalance load||<1°|
|100% linear load||<1%|
|Distortion(THDv)||100% non-linear load||<3%|
|System efficiency (full load)||Up to 94% (inverter efficiency is up to 98%)|
|Rectifier output parameters|
|Charger output voltage stability||1%|
|DC ripple voltage||≤1%|
|Operating temperature range||0~40°C|
|Storage temperature||-25~70°C(Without battery)|
|Relative humidity||0~95% No condensation|
|Standard||Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design andTest IEC62040-3|
