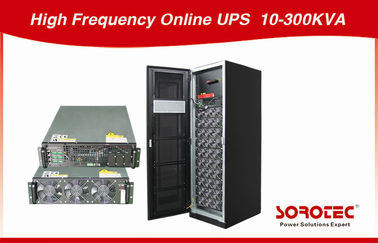

High Efficiency Onduleur Remote Control UPS for Internet Data Center , 30-300KVA Capacity

Minimum Order Quantity : 1PCS (Sample are Available) Price : Negotiable Price
Packaging Details : Standard Exported Cartons and Pallets for Modular UPS Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : 30% TT in advance, the balance before shipping Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: MPS9335C 10 - 300KVA

Detail Information

Product Name: 30-300KVA Modular UPS Model: MPS9335C Series
Capacity: 30-300KVA Phase: 3Phase
Online UPS: Online Capacity Expansion Amd Maintenance Application: Industry/Telecom/Servers
Easy To Maintain: Yes OEM Produce: Available
High Light:

remote control ups


ups battery cabinet

Product Description

High Efficiency Onduleur 30-300KVA Modular UPS MPS9335C PF=1 , Efficiency Over 96%

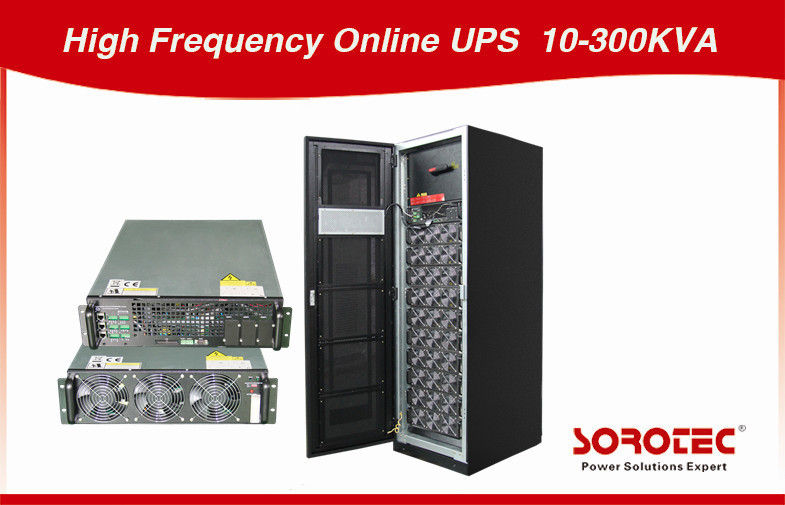

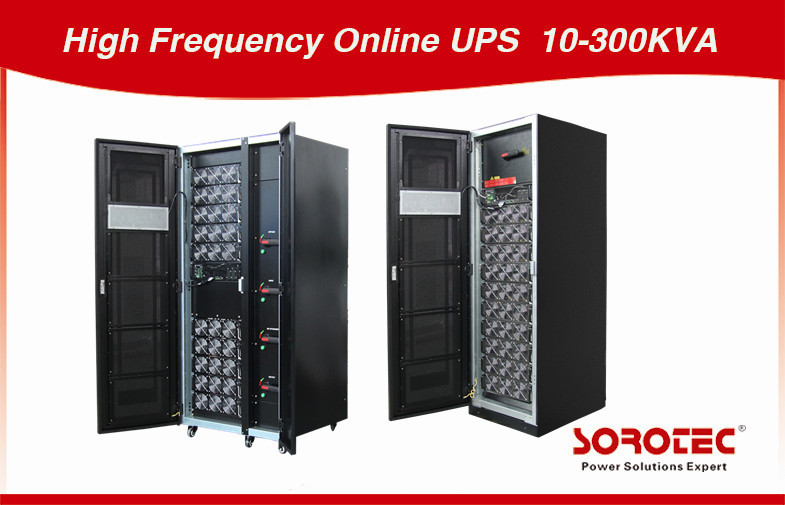

MPS9335C Series high frequency online UPS


Output power factor is 0.9

3Ph in and 3Ph out

Flexible modular structure

Online capacity expansion and maintenance

Extra LCD display 13 type languages

Support 4 units UPS for parallel working

Extra wide input voltage and frequency ranges



This modular UPS ,capacity from 10 to 300 kva,widely used to provide reliable and long time backup power supply for  IDC(Internet Data Center), computing center, ISP (Internet Service Provider ),Telecom,Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.


Key Features:


1. Efficiency > 96% at 50%-75% rated load, input THDi<3%


2.Easy-to-install: Top/ bottom cabling


3.Easy-to-maintain: UPS, failed part can be replaced shortly


4.Easy-to-modify: The number of battery cells can be configured flexibly


5. 6-inch extra large LCD that can display 12 language


6.Provide large LCD touch screen (optional)


7.Each UPS modules provide 4.5KW charge capacity. equivalent to 10 to 12A


8.On-Line Double Conversion, fully isolating the influences of power grid pollution


9.Advanced DSP full digital control technologies


10.Advanced distributed active parallel technology realizes parallel operation of 4 UPS units


Technical Specifications of Modular UPS, MPS9335 10-300KVA:


                             MPS9335 10-300KVA
Capacity                                     10-300KVA
Main input
Input voltage          380V/400V/415AC(Optional South America 208v)
Input Frequency Range                                  50/60Hz
Power Factor                     Full load>0.99 ,Half load >0. 98
THDi                                  THDi <3%
Input power soft-start fantion                               5-30s settable
Input Voltage Ranges   228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40%
Frequency Range                                 40-70Hz
Battery Voltage  ±240VDC(Default),12V Battery30-40pcs can be choose
Charge Voltage accuracy                                     ± 1%
Bypass Input voltage                     380/400/415VAC 3-phase 4-wire
Voltage Ranges   Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software
Overload Capacity  150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms
Inverter Output Voltage                     380/400/415VAC 3-phase 4-wire
Voltage Accuracy          ± 0.5%(balanced load),   ± 1% (unbalanced load)
THDi          THD<1%(linear load),  THD<3%(nonlinear load)
Power Factor                                          0.9
Three Phase Angle accuracy                                120°c ± 0.5°c
Current Crest Ratio                                          3:1
Overload Capacity              110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time                           0ms,15ms(ECO Mode)
Frequency                           50Hz/60Hz (Settable)
Mains synchronization range   ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection Level                                        IP20
Communication Ports  RS232,RS485,dry contact,SNMP card,EPO,generator port
System efficiency   > 96% at load above 50%, >95% at load above 25%
Operation Temperature                                       0-40 °c
Storage Temperature                       -25 °c -70 °c (without battery)
Humidity                             0-95%(no-condensing)
Noise(dB)                         55-62dB,Adjusted with load
  5 module cabinet   module :RMS050/10, RMS100/20, RMS150/30   150KG
  10 module cabinet   module :RMS100/10, RMS200/20, RMS300/30   150KG
    module :PM10              10KVA power module :20KG
Weight   module :PM20              20KVA power module :21KG
    module :PM30              30KVA power module :32KG
Dimendion(W XD XH)mm   5 module cabinet                       600X1400X850
10 module cabinet                       600X2070X850
power module       440X132X660(10KVA/20KVA/30KVA)
