IP55 Telecom Solar Power Systems With Remote Monitoring System Operation

Minimum Order Quantity : 10PCS Packaging Details : Standard Exported Cartons and Pallets
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : L/C, T/T
Supply Ability : 3000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE Model Number: SHW48500

Detail Information

MPPT Range @Operating Voltage: 60 ~115VDC Maximum PV Array Open Circuit Voltage: 145VDC
Maximum PV Array Power: 3000W Maximum Input Current: 62A
Nominal Battery Voltage: 42-58VDC Maximum Charge Current: 50A(max:61A)
Maximum Efficiency: 98%
High Light:

telecom dc power systems


telecom battery backup systems

Product Description


Complete Solar Power System 48V DC Power Supply Protection Degree IP55


Key Features:

1.Adopt advanced MCU microprocessor control technology
2.Advanced MPPT Technology.High converting efficiency higher than 97% for
minimizing energy loss.
3.Reversed current protection at night.over voltage and reverse polarity protection
4.Capable of selection different charging mode fo various types of batteries
5.Protection degree:IP55
6.Industy-leading power density compact size and high reliability
7.Doorframe designed with waterproof structure, posted on the seal and equipped

with wateerproof lock in the door double insulation design
8.Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material,

surfce coating anti-UV power
9.Suitable for outdoor installation
10.With remote monitoring system operation



Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC system. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.

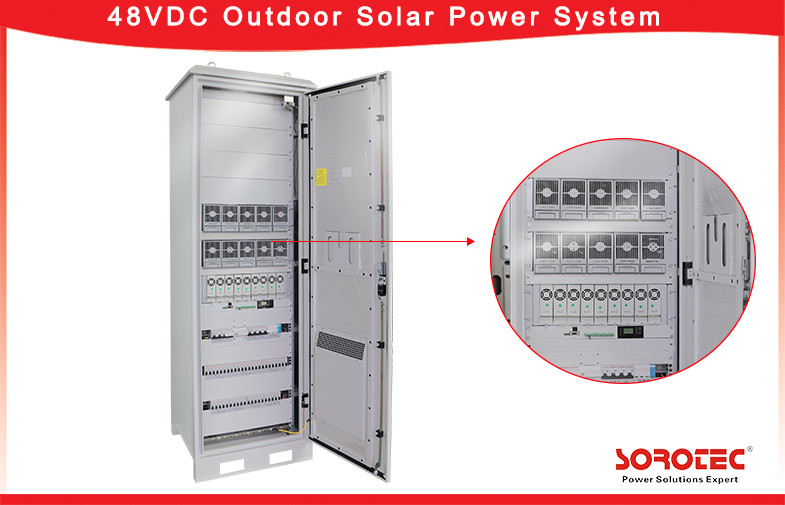

IP55 Telecom Solar Power Systems With Remote Monitoring System Operation 0

Remote Monitoring System Interface

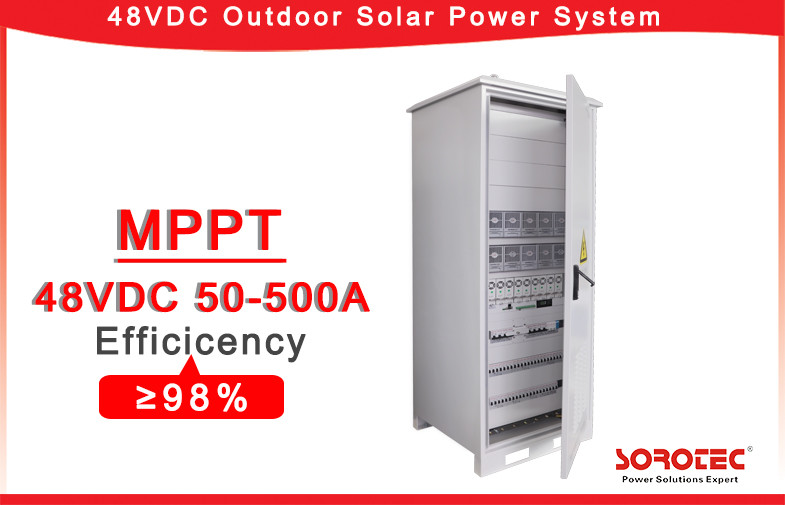

IP55 Telecom Solar Power Systems With Remote Monitoring System Operation 1



Fine dust-proof, water-proof features

According to the overall standard of design dust-proof and water-proof IP55

1.With sun protection,heat insulation,roof ventilation

2.With waterproof and the filtration dust inlet, the cabinet front door shutters withw a terproof design.

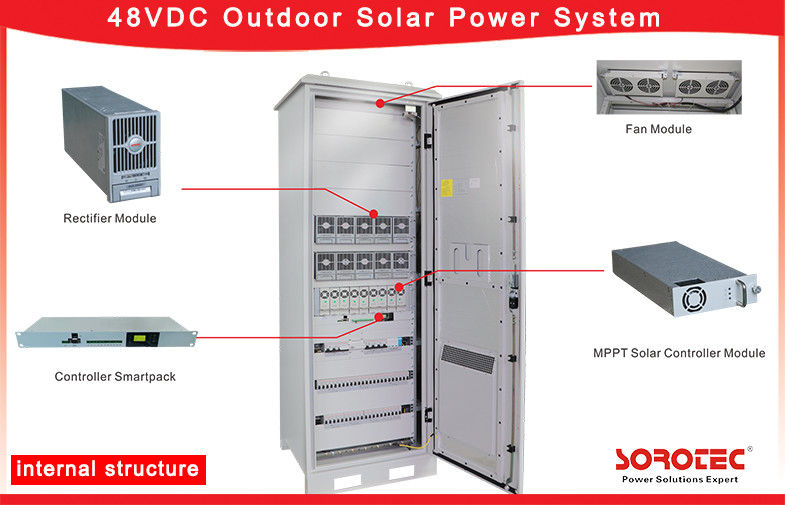

IP55 Telecom Solar Power Systems With Remote Monitoring System Operation 2


Product Descriptions:

SHW48500 Solar System Rectifier Module(1-10) MPPT Solar Charge Controller(1-10)
MPPT Range @Operating Voltage 60 ~150VDC
Maximum PV Array Power 3000W
Maximum Input Current 62A
Nominal Battery Voltage 42-58VDC
​Maximum Charge Current 50A(max:61A)
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
Input Power 1KW/2KW
Input Voltage 150-300VAC
Output Voltage 48VDC
Ouput Current 30A/50A
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m

IP55 Telecom Solar Power Systems With Remote Monitoring System Operation 3
