Modular UPS-High Frequency Online Uninterrupted Power Supply MPS9335C Ⅱ 50-720KVA

Minimum Order Quantity : 2PCS Price : Price Negotiable
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : 30% TT in advance, the balance before shipping Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: MPS9335C Ⅱ

Detail Information

Capacity: 50-720KVA Input Voltage: 380V/400V/415VAC
Input Frequency Range: 50/60Hz Power Factor: >0.99
THDi: THDi<3% Transfer Time: <2ms
High Light:

uninterruptable power supply

,

ups power supply

Product Description

Modular UPS-High Frequency Online Uninterrupted Power Supply MPS9335C Ⅱ 50-720KVA



Key Features

1.Superior energy saving and environment-friendly:
Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%
2. Superior capability of powering load:
Output PF is 0.9 or 1, no need of power deration with load of leading or lagging PF
3. Easy-to-install:
Top or bottom cabling, no need of input cabling cabinet.
4. Easy-to-maintain:
Full front access, UPS, failed part can be replaced shortly
5. Easy-to-modify:
The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the battery cell can be replaced in time when it fails without interrupting the normal operation of UPS.
6.6-inch extra large LCD that can display 12 l a n g u a g e (Chinese ,English ,Russian, French ,Spanlish and so on).
7.Provide large LCD touch screen (optional)
8.Each UPS modules provide 4.5KW charge capacity. equivalent to 10 to 12A
9.On-Line Double Conversion, fully isolating the influences of power grid pollution and power failure from utility power supply and diesel generator to load
10. Advanced DSP full digital control technologies realize higher system stability, online capacity expansion and maintenance
11.Advanced distributed active parallel technology realizes parallel operation of 4 UPS units and online capacity expansion without centralized bypass cabinet
12.Digital load sharing technology features extra low cross current and extreme high system reliability in parallel operation
13.Adaptive to severe power grid environment due to extra wide input voltage and frequency ranges
14.Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety at limit conditions
15 Intelligent battery management maintains battery automatically to prolong the battery life
16. Efficient heat dissipation and effective protection under severe environment due to its independent layer-sealed ventilation channel and redundant fan design, as well as the paint-protected circuit boards and built-in dust filter

17.Applicable voltage south America



Application

Application IDC(Internet Data Center), computing center, ISP (Internet Service Provider ),Telecom,Finance bank and
securities, Tax, hospital system, industrial automation, precision equipment, etc.

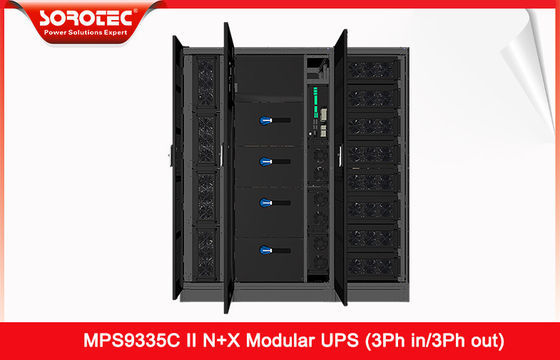

Modular UPS-High Frequency Online Uninterrupted Power Supply  MPS9335C Ⅱ 50-720KVA 0



Technical Specifications



Model MPS9335C II 50-720KVA
Capacity 50-720KVA
Main Input
Input voltage 380V/400V/415VAC
Input Frequency Range 50/60Hz
Power Factor >0.99
THDi THDi<3%
Input power soft-start function 5-30S settable
Input Voltage Ranges 228V-476V;-20% ~ 25% at Full load ; linear derating at -25% ~ -40%; can take 70% load at -40%
Frequency Range 40-70Hz
Battery
Battery Voltage ±240VDC,12V Battery 32~44 pcs can be chose
Charge Voltage accuracy ±1%
Bypass
Bypass Input Voltage 380/400/415VAC 3-phase 4-wire
Voltage Range Default value is -20%~+15%; -40%,-30%,-10% ~ +10%,+15%,other ranges can be set via software
Overload Capacity Long term at 135% rated load,150%<load<180% more than 10 min,load> 1000% 100ms
Ouput
Inverter Output Voltage 380/400/415VAC 3-phase 4-wire
Voltage Accuracy ±0.5% (balanced load),±1% (unbalanced load)
THDV THDV<1%(linear load), THDV<3%(nonlinear load)
Power Factor 1.0
Three Phase Angle accuracy 120°±0.5°
Current Crest Ratio 3:1
Overload Capacity 110%1h,125%10mins , 150%1mins,> 150%200ms
Transfer Time <2ms
System
Frequency 50Hz/60Hz(Settable)
Mains synchronization range ±2Hz(Default value),adjustable with step of 0.5Hz within range of+/-0.5Hz-3Hz
Protection Level IP20
Communication Ports RS232.RS485,dry contact ,SNMP card,EPO,generator port
System efficiency >97% at load above 50%,>95%at load above 25%,
Operation Temperature 0~40ºC
Storge Temperature -25ºC~70ºC(without battery)
Humidity 0~95%(no-condensing)
Noise(dB) 55-62dB,Adjusted with load
Weight Dimension(WxDxH)mm module:PM 50 50KVA power module :41.3KG
module:PM60 60KVA power module:41.3KG
3 module cabinet 600X1000X1400
5 module cabinet 600X1000X2000
8 module cabinet 1200X1000X2000
12 module cabinet 1800X1000X2000
power module 440X638X217-(50/60KVA)
