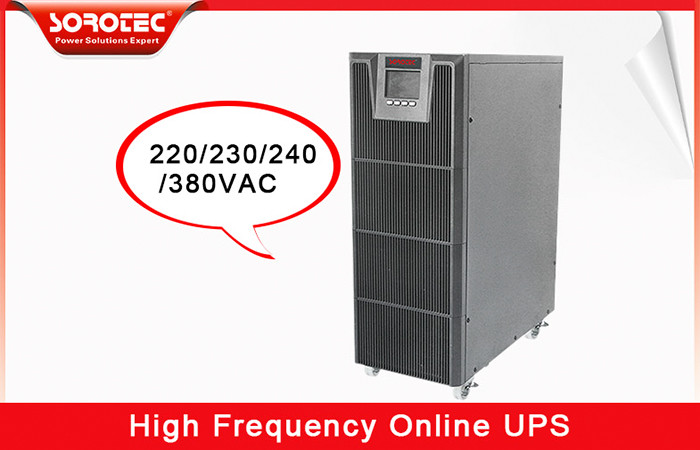

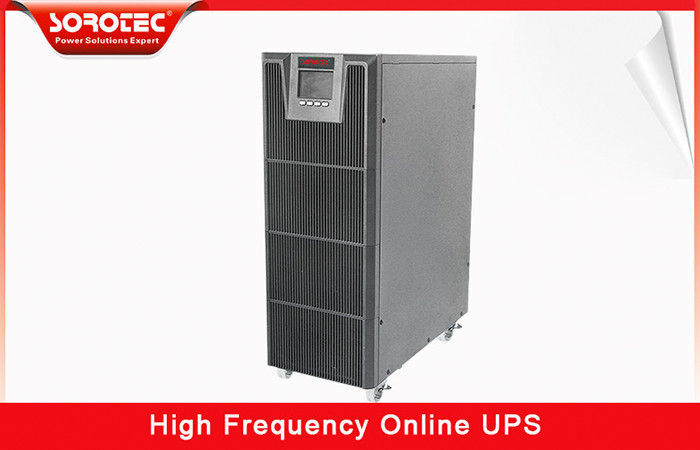

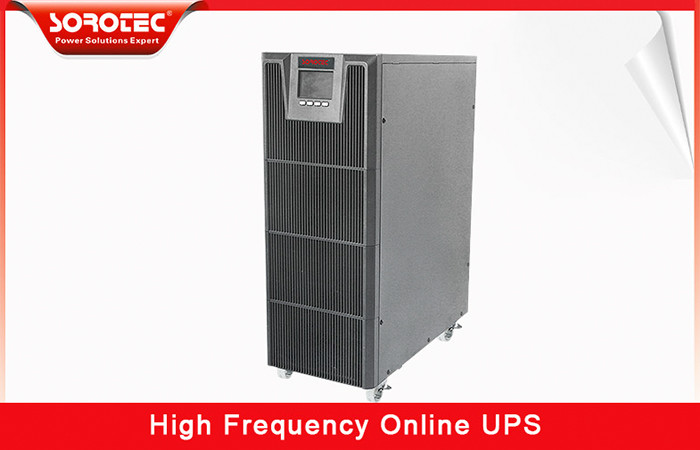

Single Phase High Frequency 1kVA - 20kVA Power Online UPS for Telecom

Minimum Order Quantity : 1PCS Online UPS Price : 1000-10000 USD
Packaging Details : Standard Exported Cartons and Pallets for Low Frequency Online UPS Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : 30% TT in advance, the balance before shipping, Supply Ability : 3000PCS/Month for Low Frequency Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: HP9116C PLUS

Detail Information

Product Name: High Frequency Online Ups Phase: 1Ph In/1Ph Out
Capacity: 1-20kva Power Factor: 0.9
Frequency Range: 40~70HZ Application: Network.telecom
Battery Voltage: 24VDC/36VDC/48VDC/72VDC/96VDC
High Light:

ups uninterruptible power supply


high frequency ups

Product Description

Single Phase High Frequency 1kVA - 20kVA Power Online UPS for Telecom


HP9116C /HP9316C 1-20KVA (1Ph in/1 Ph out& 3Ph in/1 Ph out) PLUS Series High Frequency Online UPS
Model :1kva-20kva
Nominal Voltage :220/230/240/380vac
Nominal Frequency:40-70hz
Output Power Factor :0.9
Parallel Working: Maximum 3PCS UPS

Data Center ,Bank Station,Network,Communication Equipment,Office,Automatic Equipment,
Monitor Equipment,Control System.

Muilti-function and Friendly Design
Advanced Parallel Technology

Stable parallel control technology make sure current sharing to 1%.

Select trip technology can avoid and isolation system fault then improved system availability.

Flexible extension capacity and redundance management that can satisfy all kinds of requirements.

Support maximum 3 units for parallel working Flexible strategy.

Flexible Strategy
On line mode provides higher system availability.

High efficiency mode provides more economic operation.

Frequency conversion provides more stable output.


More Flexible and Powerful Extendable Capacity
Battery Type Can Be Choice
1.Battery voltage can be choice depend on capacity , can satisfy different requirement.

2.Convenience to get more back up time and lower system invests.

3.Convenience to save cost of battery.

4.Intelligent battery monitors Charge current can be adjust.

Charge Current Can Be Adjust
5.Standant charge current 4A.

6.Support more discharge time and more capacity battery for 8A charger Input topology design.

Input Technology Design
7.Support three phase input or single phase input for three phase UPS

8.Super wide input voltage and frequency range suitable for bad power electirc environment

9.Digital control DSP technology and best power component make the system safe and reliable

Higher Power Factor /Higher Efficiency /Support Three Phase Input
Output Power Factor Up To 0.9

Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.

Input power factors up to 0.99

Three phase input model support three phase PFC , input THDI<5%

Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.


The efficiency up to 94%

Efficiency up to 93.5%when take the 30%load

ECO mode efficiency up to 98%


Technical Specifications

Model HP9116C PLUS 1-3KVA
Rated Power 1KVA/0.9KW 2KVA/1.8KW 3KVA/2.7KW
Rated Voltage 220/230/240VAC
Rated Frequency 40-70HZ
Voltage Range 115~300VAC
THDi <10%
Power Factor >0.98
Voltage Regulation 220±2%VAC
Frequency Regulation 50/60 Hz±0.05Hz
Power Factor 0.9
Voltage Distortion Linear load<4% Non-linear load<7%
Overload Capability 110%~150% for 47-25 sec;150% ~200% for 25-300ms;>200% for 200m
Current Crest Ratio 3∶1
Transfer Time 0ms (AC mode→Battery mode)
Efficiency(on line mode) >89% >90% >90%
DC Voltage 24VDC 36VDC 48VDC 72VDC 72VDC 96VDC
Recharge Time 7 hours to 90% of capacity
Recharge Current 1A 6A 1A 6A 1A 6A
LCD Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Interface Smart RS232, SNMP card (Optional),USB (Optional)
Operation Temperature 0~40℃
Humidity 20~90% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <45dB <50dB
Physics Characteristic
Dimensions: Wx D x H )mm 145X345X229 192X393X328
