230V 3KVA / 2400W Pure Sine Wave Power Inverter with MPPT Solar Charge Controller

China 230V 3KVA / 2400W Pure Sine Wave Power Inverter with MPPT Solar Charge Controller supplier

Large Image :  230V 3KVA / 2400W Pure Sine Wave Power Inverter with MPPT Solar Charge Controller

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE
Model Number: SPS3118C

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T
Supply Ability: 3000PCS Per Month
Contact Now
Detailed Product Description
Voltage: 230VAC Frequency Range: 50Hz/60Hz(Auto Sensing)
Maximum PV Array Power: 600W Maximum Solar Charge Current: 25A
Maximum AC Charge Current: 30A Maximum Efficiency: 98%



230V 3KVA / 2400W Pure Sine Wave Power Inverter with MPPT Solar Charge Controller



230V 3KVA/2400W Off-grid Pure Sine Wave Solar Inverters with MPPT Solar Charge Controller



Key Features:

1.Built In Battery.

2.Pure sine wave inverter.

3.Smart battery charger design for optimized battery performance.

4.Parallel operation with up to 6 units only available for 4KVA/5KVA.



Product Descriptions:

MODEL C2 1K-2425 C2 2K-2425 C2 3K-2425 C2 4K-4860 C2 5K-4860
Rated Power 1KVA/800W 2KVA/1600W 3KVA/2400W 4KVA/3200W 5KVA/4000W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280VAC(For Personal Computers)
90-280VAC(For Home Appliances)
Frequency Range 50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode) 230VAC ±5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency(Peak) 90% 93%
Transfer Time 10ms (For Personal Computers)
20ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 27VDC 54VDC
Overcharge Protection 31VDC 60VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 600W 600W 3000W 4000W
MPPT Range @ Operating Voltage 30~66VDC 30~66VDC 66~115VDC
Maximum PV Array Open Circuit Voltage 75VDC 75VDC 145VDC
Maximum Solar Charge Current 25A 25A 60A 60A
Maximum AC Charge Current 20A 30A 30A 60A
Maximum Charge Current 25A 30A 30A 120A 120A
AC charger and solar charger can't work at the same time
Maximum Efficiency 98%
Standby Power Consumption 2W
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C-55°C
Storage Temperature -15°C-60°C





Product Show:

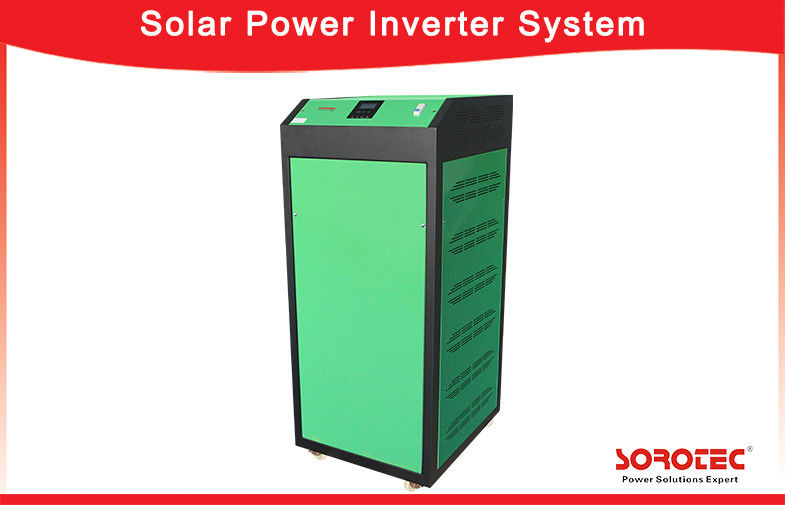

230V 3KVA / 2400W Pure Sine Wave Power Inverter with MPPT Solar Charge Controller

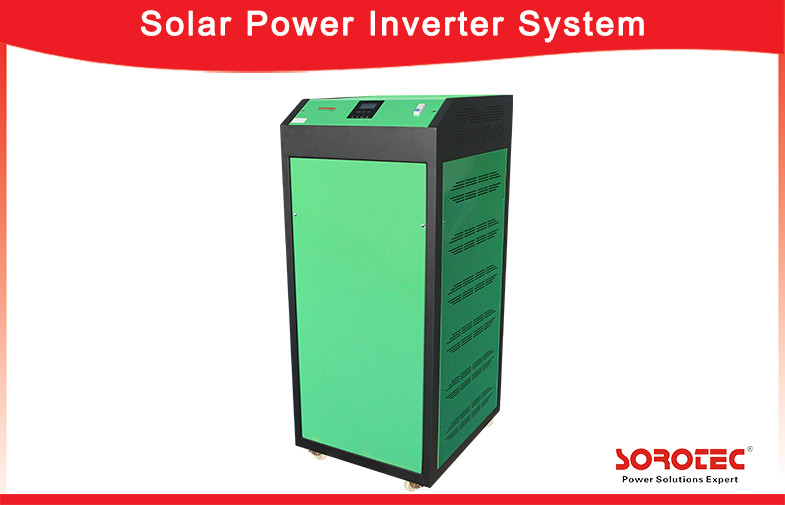

230V 3KVA / 2400W Pure Sine Wave Power Inverter with MPPT Solar Charge Controller





SOROTEC All the Inverter Series :



modified sine wave inverter with charge IG3110.jpg IG3112E.jpg Pure sine wave inverter with ISO transformer IG3115C.jpg
Modified Sine Wave Inverter with charge Pure Sine Wave Inverter for Solar System Sine Wave Inverter with ISO transformer
high frequency pure sine wave inverter IG3117C.jpg MPPT solar charge.jpg off grid solar inverter with MPPT controller SSP3117C.jpg
High Frequency Inverter with charger and AC power SCC mppt solar charge controller REVO Series Hybrid solar inverter
