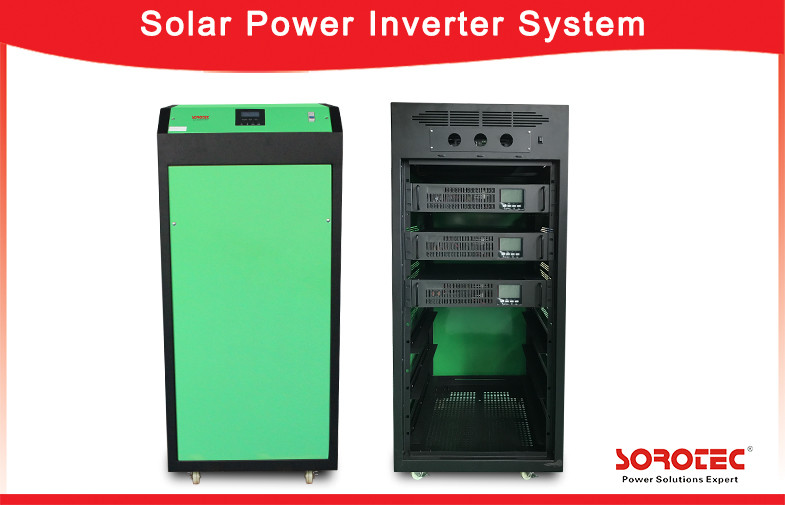

Solar Off Grid Pure Sine Wave Inverter with Parallel Operation up to 6 units for 4KVA / 5KVA

China Solar Off Grid Pure Sine Wave Inverter with Parallel Operation up to 6 units for 4KVA / 5KVA supplier

Large Image :  Solar Off Grid Pure Sine Wave Inverter with Parallel Operation up to 6 units for 4KVA / 5KVA

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE
Model Number: SPS3118C

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T
Supply Ability: 3000PCS Per Month
Contact Now
Detailed Product Description
Voltage: 230VAC Frequency Range: 50Hz/60Hz(Auto Sensing)
Standby Power Consumption: 2W Maximum Charge Current: 120A
Humidity: 5% To 95% Relative Humidity(Non-condensing) Overcharge Protection: 60VDC



Solar Off Grid Pure Sine Wave Inverter with Parallel Operation up to 6 units for 4KVA / 5KVA



Pure Sine Wave Output Solar Inverters with Parallel Operation up to 6 units for 4KVA/5KVA



Key Features:

1.Built In Battery.

2.Pure sine wave inverter.

3.Selectable input voltage range for home appliances and personal computers.

4.Configurable AC/Solar input priority via LCD setting.

5.Auto restart while AC is recovering.



Product Show:

Solar Off Grid Pure Sine Wave Inverter with Parallel Operation up to 6 units for 4KVA / 5KVA



Solar Off Grid Pure Sine Wave Inverter with Parallel Operation up to 6 units for 4KVA / 5KVA



Product Descriptions:

MODEL C2 1K-2425 C2 2K-2425 C2 3K-2425 C2 4K-4860 C2 5K-4860
Rated Power 1KVA/800W 2KVA/1600W 3KVA/2400W 4KVA/3200W 5KVA/4000W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280VAC(For Personal Computers)
90-280VAC(For Home Appliances)
Frequency Range 50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode) 230VAC ±5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency(Peak) 90% 93%
Transfer Time 10ms (For Personal Computers)
20ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 27VDC 54VDC
Overcharge Protection 31VDC 60VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 600W 600W 3000W 4000W
MPPT Range @ Operating Voltage 30~66VDC 30~66VDC 66~115VDC
Maximum PV Array Open Circuit Voltage 75VDC 75VDC 145VDC
Maximum Solar Charge Current 25A 25A 60A 60A
Maximum AC Charge Current 20A 30A 30A 60A
Maximum Charge Current 25A 30A 30A 120A 120A
AC charger and solar charger can't work at the same time
Maximum Efficiency 98%
Standby Power Consumption 2W
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C-55°C
Storage Temperature -15°C-60°C





APPLICATION OF OUR PRODUCT




1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip



FACTORY SHOW


Factoy View.jpg
