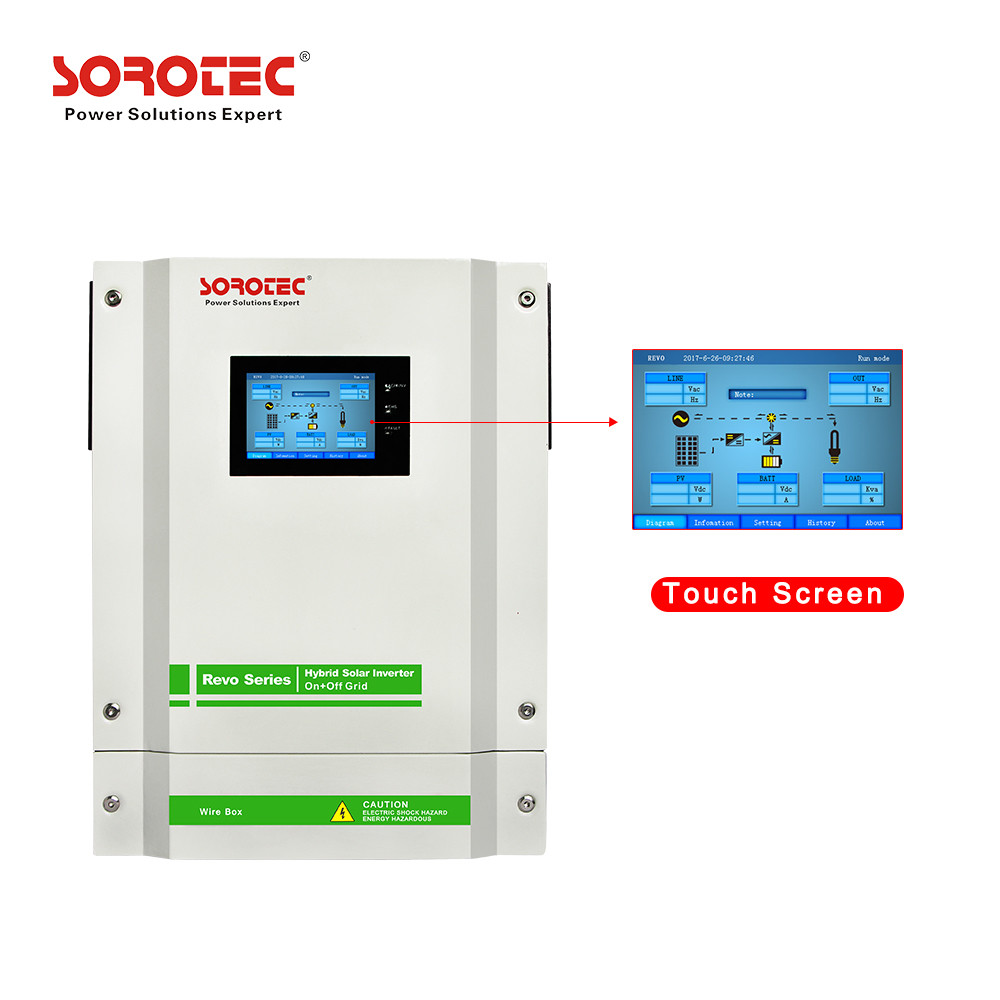

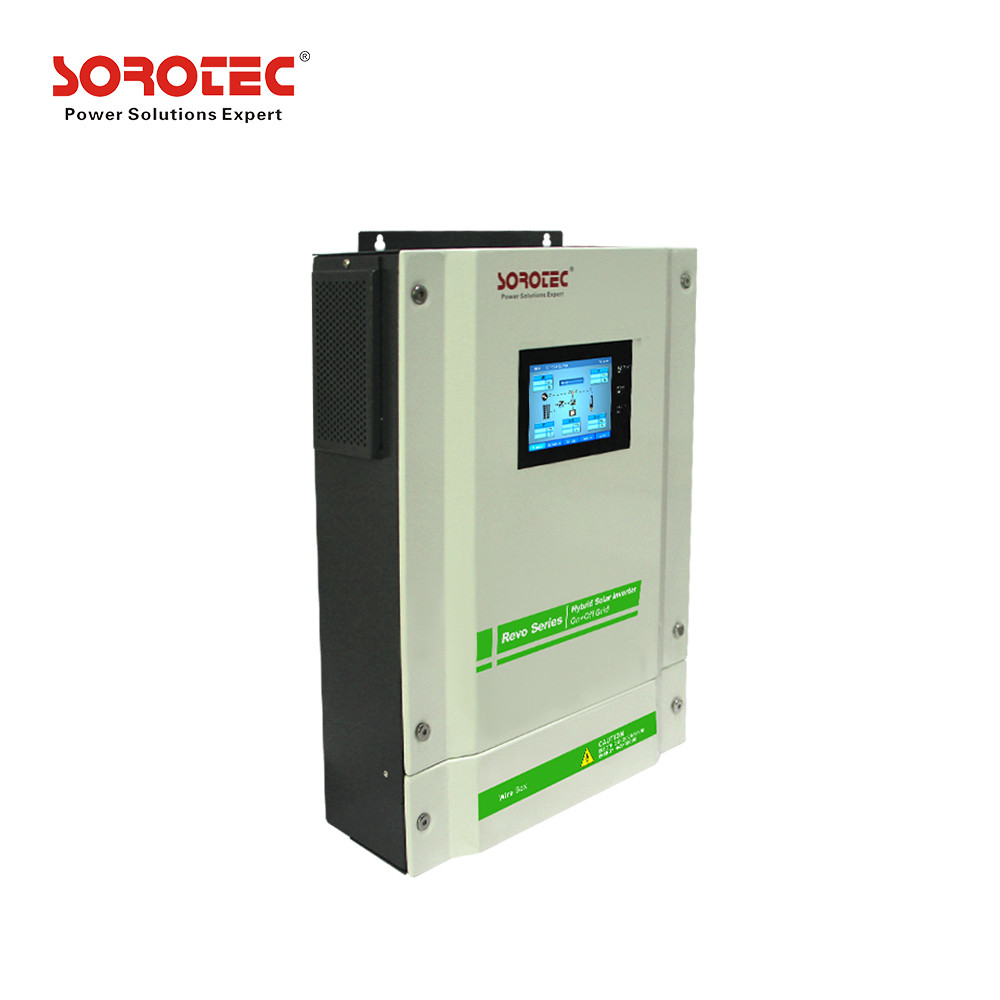

3-5.5Kw On grid Hybrid Solar Inverter with Pure Sine Wave Output Wave Form

Minimum Order Quantity : 10PCS Packaging Details : Standard Exported Cartons and Pallets.
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : L/C, T/T
Supply Ability : 1000PCS/Month for REVO Series Solar Inverter
Place of Origin: China Brand Name: SOROTEC
Certification: CE Model Number: REVO-Ⅱ 3 - 5.5KW

Detail Information

MODEL: 3-5.5KW Nominal Output Voltage: 220/230/240VAC
Output Wave Form: Pure Sine Wave Efficiency (DC To AC): 93%
Maximum PV Array Open Circuit Voltage: 145VDC MPPT Range @ Operating Voltage: 120-450VDC
Power Factor: 1.0 Operating Temperature: 0 To 50℃

Product Description

REVO Series On grid Hybrid Solar Inverter Pure Sine Wave Output Wave Form

Key Features:

  • Structure with dust filter.
  • AC charging and AC output time setting.
  • Charging voltage and charging current timing.
  • On-grid with energy storage.
  • MPPT Range: 60-115VDC REVO I Series


Application:
REVO Series Solar Inverter is commonly used in the corner of the city, offiice and household appliances. Wide PV input range and MPPT range is 60-115VDC, hybrid operation connected battery and external Wi-Fi device can option, and it has the dust filter structure.

3-5.5Kw On grid Hybrid Solar Inverter with Pure Sine Wave Output Wave Form


Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller

MODEL REVO E 3K-24 REVO E 3.2K-48 REVO E 5.5K-48
Max PV Array Power 4500W
Rated Output Power 3000W 3200W 5500W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
MPPT Tracker Number 1
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 13.6A/13.0A/12.5A 14.5A/13.9A/13.3A 25A/23.9A/22.9A
Efficiency Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 120-280VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charge Current 90A
Maximum AC Charge Current 60A
Maximum Charge Current 90A
Emergency output power
Maximum output power 3000W 3200W 5500W
Surge Power 6000W 6400W 11000W
Automatic Transfer Time <8ms
GENERAL
INTERFACE

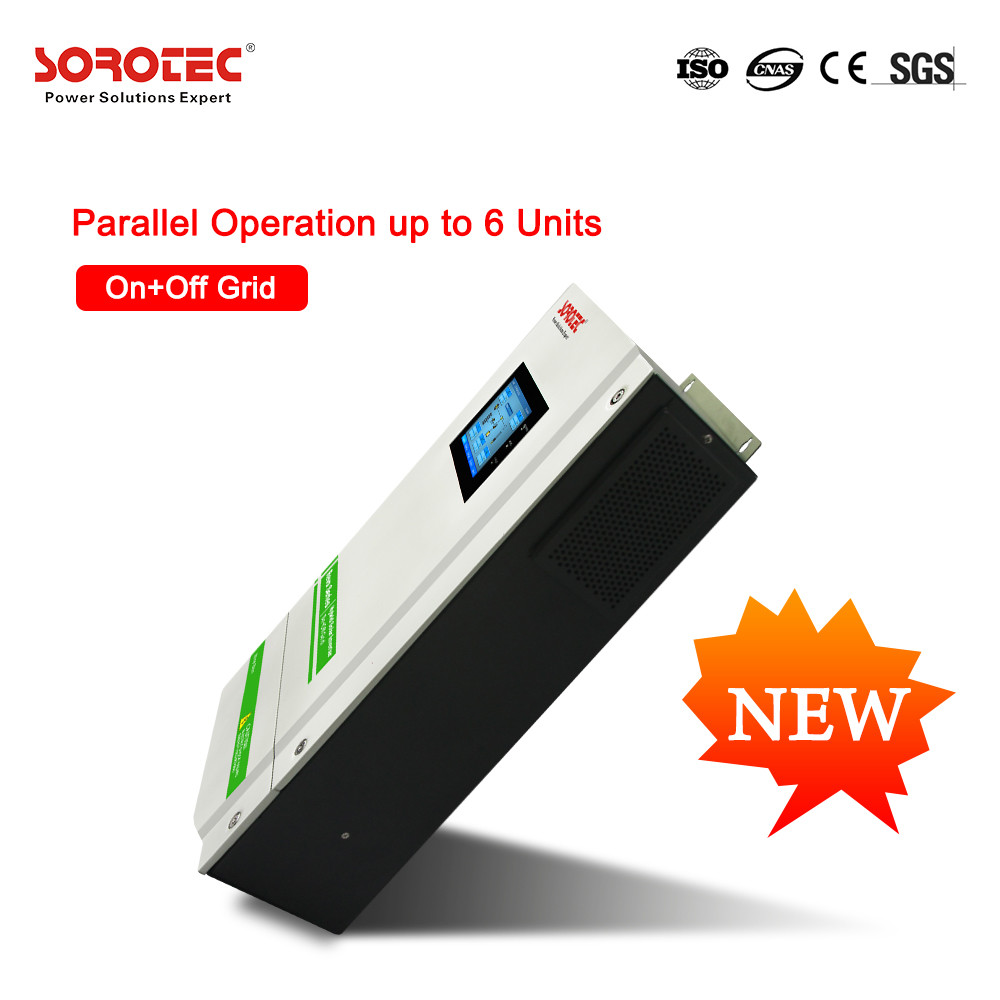

Parallel Function Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C
Net Weight(KG) 10.35 11.35
Rough Weight(KG) 11.25 12.35
Dimension (W x D x H)mm 295x468.6x120.2


SOROTEC All the Inverter Series :


modified sine wave inverter with charge IG3110.jpg IG3112E.jpg Pure sine wave inverter with ISO transformer IG3115C.jpg
Modified Sine Wave Inverter with charge Pure Sine Wave Inverter for Solar System Sine Wave Inverter with ISO transformer
high frequency pure sine wave inverter IG3117C.jpg MPPT solar charge.jpg off grid solar inverter with MPPT controller SSP3117C.jpg
High Frequency Inverter with charger and AC power SCC mppt solar charge controller REVO Series Hybrid solar inverter


Factory Show:

Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
3-5.5Kw On grid Hybrid Solar Inverter with Pure Sine Wave Output Wave Form

Exhibition:
3-5.5Kw On grid Hybrid Solar Inverter with Pure Sine Wave Output Wave Form
FAQ:
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: Shipped in 30 days after payment.
Q4: What is the warranty of inverter?
A4: One year warranty on SOROTEC-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
