PF=1 On / off Grid Hybrid Solar Power Inverter 48VDC Nominal DC Voltage

Minimum Order Quantity : 10PCS Packaging Details : Standard Exported Cartons and Pallets.
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : L/C, T/T
Supply Ability : 1000PCS/Month for REVO Series Solar Inverter
Place of Origin: China Brand Name: SOROTEC
Certification: CE Model Number: REVO-E 3 - 5.5KW

Detail Information

MODEL: 3-5KVA Nominal Output Voltage: 220/230/240VAC
Nominal DC Voltage: 48VDC Parallel Function: Yes
Output Power Factor: 1.0 Operating Temperature: 0 To 50 ºC
MPPT Tracker Number: 1 Frequency Range: 50HZ/60HZ(Auto Sensing)
High Light:

mppt solar inverter

,

hybrid pv inverter

Product Description



REVO Series On / off Grid Hybrid Solar Power Inverter 48VDC Nominal DC Voltage



REVO Series Solar Inverter built-in 80/120A MPPT solar charge controller, 220/230/240VAC hybrid solar inverters are mainly used for solar power station. Supply the reliable long back up time power for the household appliances, office appliances and solar power systems etc.



Key Features:

  • 1.Charging voltage and charging current timing.
  • 2.On-grid with energy storage.
  • 3.Smart battery charger design.
  • 4.Energy generated record, load record, history information and fault record.
  • 5.Connected with Battery Optional.

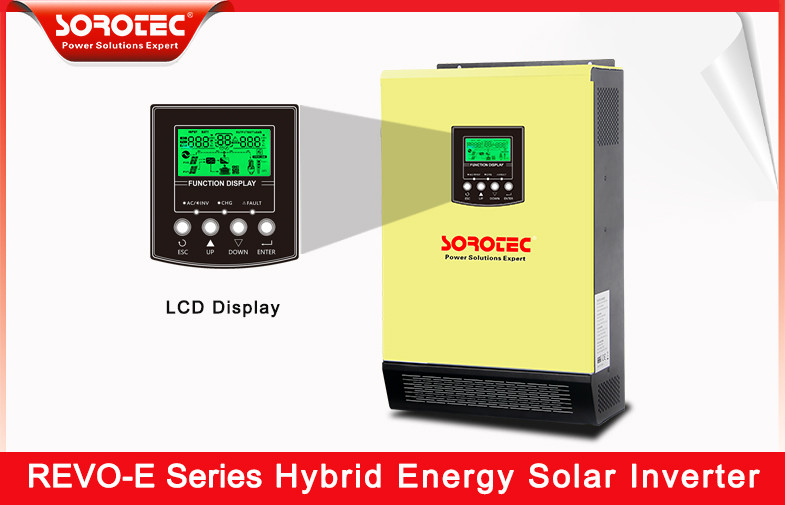

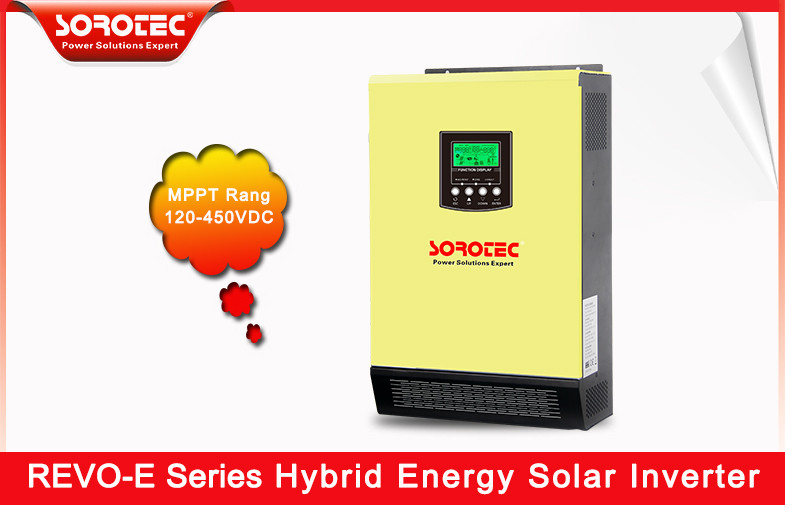

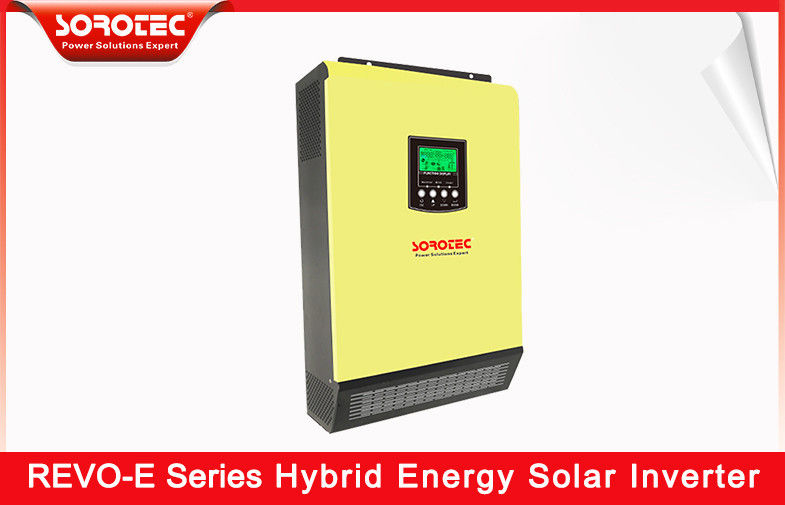

Product Show:

PF=1 On / off Grid Hybrid Solar Power Inverter 48VDC Nominal DC Voltage 0PF=1 On / off Grid Hybrid Solar Power Inverter 48VDC Nominal DC Voltage 1





Wall Mounted Integrated Solar Power Inverter Technical Specification

Built-in MPPT Solar Controller



MODEL REVO II 3K-24 REVO II 3.2K-48 REVO II 5.5K-48
Max PV Array Power 4500W
Rated Output Power 3000W 3200W 5500W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
MPPT Tracker Number 1
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 13.6A/13.0A/12.5A 14.5A/13.9A/13.3A 25A/23.9A/22.9A
Efficiency Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 120-280VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charge Current 90A
Maximum AC Charge Current 60A
Maximum Charge Current 90A
Emergency output power
Maximum output power 3000W 3200W 5500W
Surge Power 6000W 6400W 11000W
Automatic Transfer Time <8ms
GENERAL
INTERFACE
Parallel Function Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C
Net Weight(KG) 11.75 11.9
Rough Weight(KG) 12.75 13.1
Dimension (W x D x H)mm 345x476x133.2


SOROTEC All the Inverter Series :

modified sine wave inverter with charge IG3110.jpg IG3112E.jpg Pure sine wave inverter with ISO transformer IG3115C.jpg
Modified Sine Wave Inverter with charge Pure Sine Wave Inverter for Solar System Sine Wave Inverter with ISO transformer
high frequency pure sine wave inverter IG3117C.jpg MPPT solar charge.jpg off grid solar inverter with MPPT controller SSP3117C.jpg
High Frequency Inverter with charger and AC power SCC mppt solar charge controller REVO Series Hybrid solar inverter



Factory Show:



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

PF=1 On / off Grid Hybrid Solar Power Inverter 48VDC Nominal DC Voltage 8

PF=1 On / off Grid Hybrid Solar Power Inverter 48VDC Nominal DC Voltage 8

Exhibition:

PF=1 On / off Grid Hybrid Solar Power Inverter 48VDC Nominal DC Voltage 10

FAQ:

Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.

Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.

Q3: How about the delivery time?
A3: Shipped in 30 days after payment.

Q4: What is the warranty of inverter?
A4: One year warranty on SOROTEC-Solar product.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
