Solar Energy Storage Systems , Advanced Off Grid Energy Storage System

Minimum Order Quantity : 10PCS Packaging Details : Standard Exported Cartons and Pallets.
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : L/C, T/T
Supply Ability : 1000PCS/Month for Energy Storage System
Place of Origin: China Brand Name: SOROTEC
Certification: CE Model Number: Energy Storage System

Detail Information

Model: 3KW/4KW/5KW MPPT Range @ Operating Voltage: 120-450VDC
Nominal Output Voltage: 220/230/240VAC Power Factor: >0.99
Maximum Conversion Efficiency (DC/AC): 96% Acceptable Input Voltage Range: 90-280VAC Or 170-280 VAC

Product Description

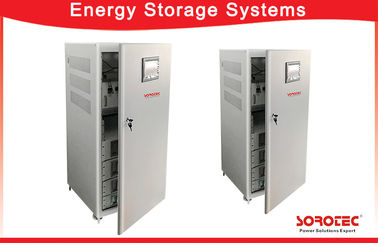

Solar Energy Storage Systems , Advanced Off Grid Energy Storage System


Solar Energy Storage System is an all in one energy storage machine, supplys the reliable long back up time power for the household appliances, office appliances and solar power systems etc, this battery energy storage system with touch screen display for some detailed information, and the maximum conversion efficiency can reach to 96%.



Solar Energy Storage Systems , Advanced Off Grid Energy Storage System




Key Features:


1.Structure with dust filter.


2.Energy generated record, load record, history information and fault record.


3.Language and time setting.


4.Touch screen display.


5.Output power factor PF=1.0.



Product Description of Energy Storage System

MODEL Energy Storage Systems
3KW 4KW 5KW
Max PV Array Power 4500W
Rated Output Power 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
MPPT Tracker Number 1
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 13A 17.4A 21.7A
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 96%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 90-280VAC or 170-280 VAC
Frequency Range 50Hz/60Hz (Auto sensing)
Maximum AC Input Current 40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
Efficiency (DC to AC) 93%
BATTERY & CHARGER
Nominal DC Voltage 48VDC
Maximum Solar Charge Current 80A
Maximum AC Charge Current 60A
Maximum Charge Current 80A
GENERAL
INTERFACE
Parallel Function Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C
