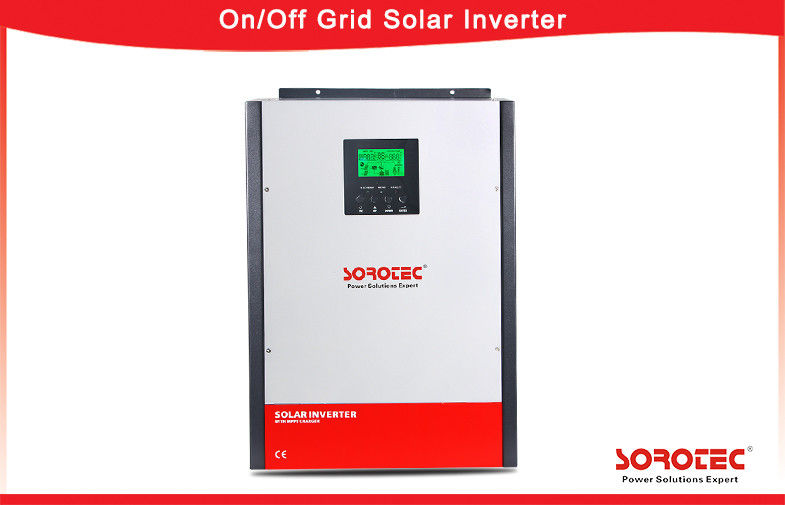

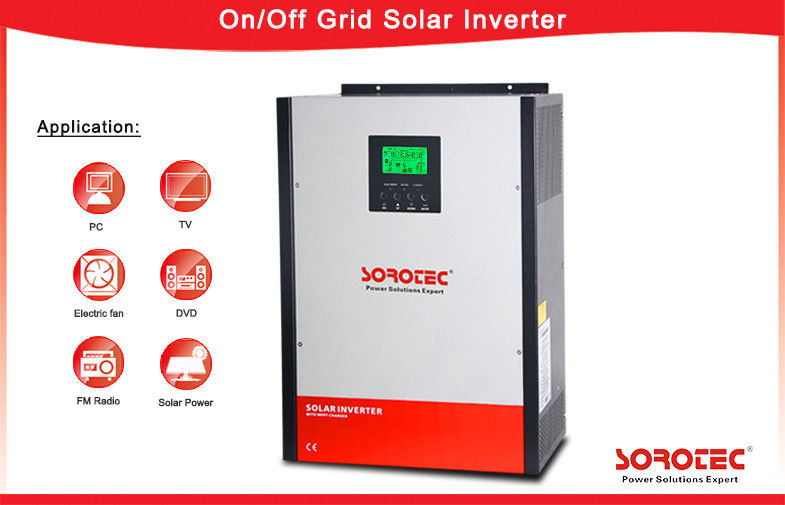

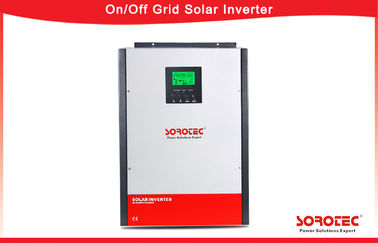

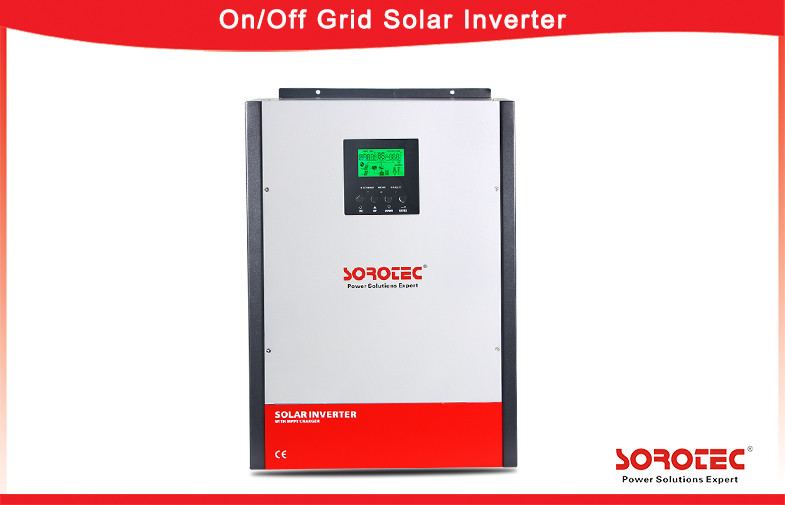

1kW On/Off Grid Pure Sine Wave Solar Inverters with 80A MPPT Solar Charge Controller

Minimum Order Quantity : 10PCS Price : 200-1000
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3119C 1000-5000W

Detail Information

Output Waveform: Pure Sine Wave Output Voltage Range: 184-264.5VAC
Accepatable Input Voltage Range: 90-280VAC Or 170-280VAC Max.PV Array Power: 1000W
MPPT Range @ Operating Voltage: 15~115VDC Nominal DC Voltage: 12VDC
Nominal Output Current: 4.3A
High Light:

mppt solar inverter

,

hybrid pv inverter

Product Description

1kW On/Off Grid Pure Sine Wave Solar Inverters with 80A MPPT Solar Charge Controller



Key Features:



1.Pure sine wave output
2.Self-consumption and Feed-in to the grid
3.Programmable supply priority for PV, Battery or Grid
4.User-adjustable charging current and voltage
5.Monitoring software for real-time status display and control
6.Parallel operation up to 6 units only for 3K/4K/5K models
7.Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup





SSP3119C Wall Mounted Integrated Solar Power Inverter technical specifications:



MODEL 3K-48 4K-48 5K-48
Max.PV Array Power 4000W 4000W 6000W
Rated Output Power 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 2
GRID-TIE  OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 13A 17A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID    INPUT
Accepatable Input Voltage Range 90-280VAC    or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 180A
INTERFACE
Parallel Function Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃
