230VAC 3kW Off Grid Solar Power Systems , 48V Solar Power Inverter Built-in Battery / Transformer

Good quality High Frequency Online UPS for sales
Good quality High Frequency Online UPS for sales
As an exclusive agent UPS distributor of SORO, We enjoyed wonderful business cooperation with them. Let's grow fast together!

—— Dennis Spalding --from LAX, USA

Perfect UPS, Perfect software(SNMP card), Perfect service, that is SORO UPS!!!

—— Antonie Williams --from Dubai

April, 2015, I visited Sorotec factories, I was pleasantly suprised by their design and artwork to ensure quality!!

—— Anuoluwapo Omobolaji Ayokunle

I'm Online Chat Now

230VAC 3kW Off Grid Solar Power Systems , 48V Solar Power Inverter Built-in Battery / Transformer

China 230VAC 3kW Off Grid Solar Power Systems ,  48V Solar Power Inverter Built-in Battery / Transformer supplier
230VAC 3kW Off Grid Solar Power Systems ,  48V Solar Power Inverter Built-in Battery / Transformer supplier 230VAC 3kW Off Grid Solar Power Systems ,  48V Solar Power Inverter Built-in Battery / Transformer supplier

Large Image :  230VAC 3kW Off Grid Solar Power Systems , 48V Solar Power Inverter Built-in Battery / Transformer

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000
Model Number: SPS3115C 1-6kW

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Price Negotiable
Packaging Details: Standard Exported Cartons and Pallets for Pure Sine Wave Solar Power Inverter
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000PCS per Month for Pure Sine Wave Solar Power Inverters
Contact Now
Detailed Product Description
Nominal Input Voltage: 24V/48V Macimum Effciency: >96%
Charge Current: 10-85A MAX Battery Initial Voltage For Start Up: 0-15.7v For 12v(*2 For 24v;*4 For 48v)
Nominal Voltage: 120VAC(option) 230VAC Low Battery Alarm: 21V/42V
Low Battery Trip: 20V/40V

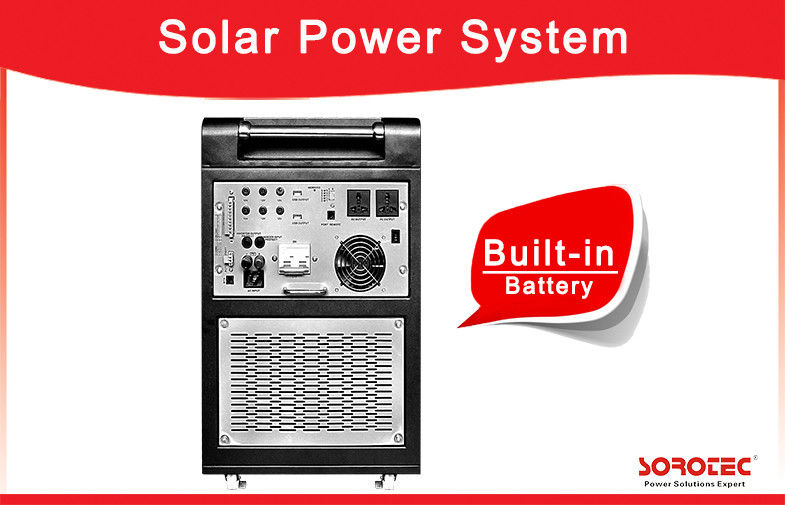

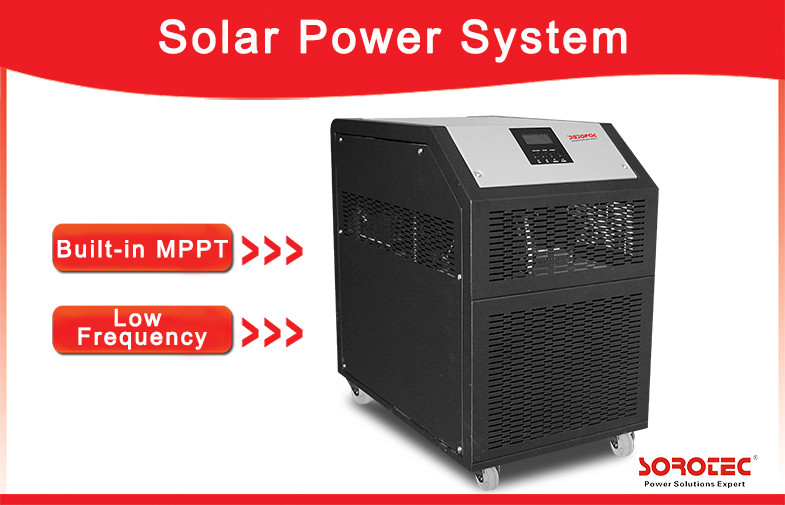

230VAC 3kW Off-grid 48V Solar Power Inverter Built-in Battery and Built-in Transformer


Key Features:



1. Built-in transformer, built-in battery and built-in MPPT.



2. IP55 protection degree design.



3. Off-grid solar power inverter built-in 60A MPPT.



4. Over-load and short circuit protection.



5. Pure sine wave output.



Application:



Pure sine wave 1-6kW off-grid solar power inverter built-in 60A MPPT, built-in battery and built-in transformer. Solar power system is commonly used in the corner of the city, office, household appliance, oil and gas, video, traffic lights, remote roads, mountains, islands etc.



Product Descriptions Of SPS3115C 1-6kW Solar Power Inverter

MODEL SPS3115C 1-6KW
1KW 1.5KW 2KW 3KW 4KW 5KW 6KW
Input Wave form Sine wave (utility or generator)
Nominal Voltage 120VAC(option) 230VAC
Low voltage trip 90v ±4% & 184v/154v ±4%
Low voltage reengage 100v ±4% & 194v/164v±4%
High voltage trip 140v ±4% & 253v ±4%
High voltage reengage 135v ±4% & 243v ±4%
Nominal input frequency 50Hz/ 60Hz (auto detection)
Frequency range 47Hz ~ 65Hz
Output Wave form (Bypass mode)same as input
Over-Load Protection Circuit breaker
Short circuit Protection Circuit breaker
Efficiency on line transfer mode >95%
Line transfer time 10ms Typical
Bypass without battery connected Yes
Inverter output
Output wave form Pure sine wave
Output continuos power watts 1000 1500 2000 3000 4000 5000 6000
Output continuos power VA 3000 4500 6000 9000 12000 15000 18000
Power factor 0.9-1.0
Nominal Output Voltage rms 120VAC(option) 230VAC
Output Voltage regulation +/- 10%rms
Output frequency 50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Short circuit protection Yes,fault after 1 secs
Inverter input
Nominal input voltage 24V/48V
Minimum start voltage 20V/40V
Low battery alarm 21V/42V
Low battery trip 20V/40V
High voltage alarm 32V/64V
Charger
Output voltage Dependent on battery type
Charge current 10-85A MAX
Battery initial voltage for start up 0-15.7v for 12v(*2 for 24v;*4 for 48v)
Over charge protection 15.7v for 12v(*2 for 24v;*4 for 48v)
Solar Charger
MPPT Range @ Operating Voltage 30-115VDC/60-115VDC
Maximum PV Array Open Circuit Voltage 145VDC
Maximum Charging Current 60A
Macimum Effciency >96%
Standby Power Comsumption 2W
