50 Hz/60 Hz Frequency Range Off Grid Energy Storage Inverter REVO VM II Series
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 10PCS | Packaging Details : | Standard Exported Cartons and Pallets. |
|---|---|---|---|
| Delivery Time : | Within 15-30days after receiving your 30% TT deposit | Payment Terms : | L/C, T/T |
| Supply Ability : | 1000PCS/Month for REVO Series Solar Inverter |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE | Model Number: | REVO II |
|
Detail Information |
|||
| MODEL: | 3-5.5KW | Max PV Array Power: | 4500W |
|---|---|---|---|
| Acceptable Input Voltage Range: | 90-280VAC Or 170-280 VAC | Humidity: | 0~90% RH (No Condensing) |
| Operating Temperature: | 0 To 50 °C | Frequency Range: | 50Hz/60Hz |
| Nominal Output Voltage: | 220/230/240VAC | MPPT Range @ Operating Voltage: | 120-450VDC |
| High Light: | mppt solar inverter,hybrid pv inverter |
||
Product Description

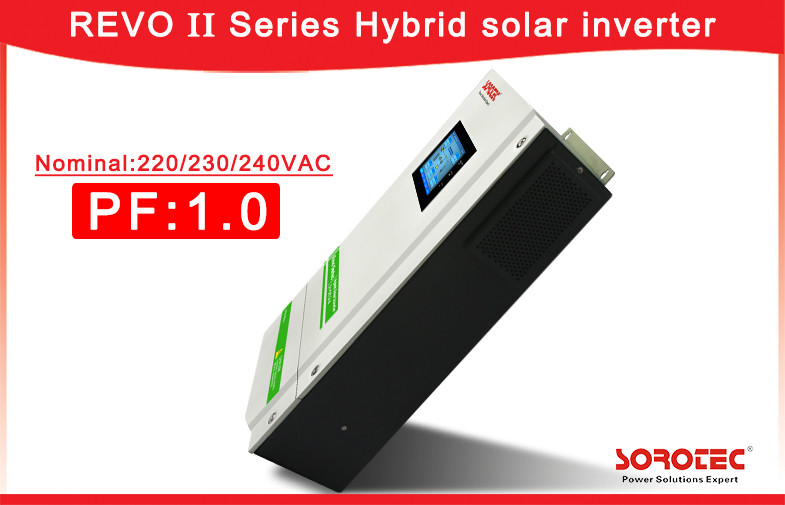

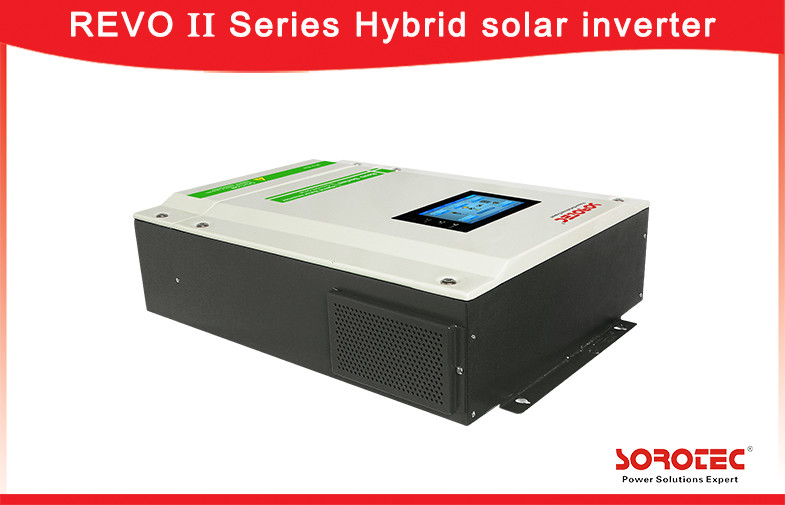

5.5kW MAX PV Array Power 5000W On/Off Grid Solar Hybrid Power Inverters
Product Snapshot:
Key Features:
Product Show:
Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller
| MODEL | REVO II 3K-24 | REVO II 3.2K-48 | REVO II 5.5K-48 |
| Max PV Array Power | 5000W | ||
| Rated Output Power | 3000W | 3200W | 5500W |
| Maximum PV Array Open Circuit Voltage | 500VDC | ||
| MPPT Range @ Operating Voltage | 120-450VDC | ||
| GRID-TIE OPERATION | |||
| GRID OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 184-265VAC | ||
| Nominal Output Current | 15A | ||
| Efficiency | Up to 93.5% | ||
| OFF-GRID, HYBRID OPERATION | |||
| GRID INPUT | |||
| Acceptable Input Voltage Range | 90-280VAC or 170-280 VAC | ||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||
| BATTERY MODE OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Wave Form | Pure sine wave | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 24VDC | 48VDC | |
| Maximum Solar Charge Current | 90A | ||
| Maximum AC Charge Current | 60A | ||
| Maximum Charge Current | 90A | ||
| Emergency output power | |||
| Maximum output power | 3000W | 3200W | 5500W |
| Automatic Transfer Time | <8ms | ||
| GENERAL | |||
| INTERFACE | |||
| Parallel Function | Yes | ||
| Communication | USB or RS232/Dry-Contact | ||
| ENVIRONMENT | |||
| Humidity | 0~90% RH (No Condensing) | ||
| Operating Temperature | 0 to 50 °C | ||
| FACTORY SHOW |
| COMPANY SHOW |
Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
