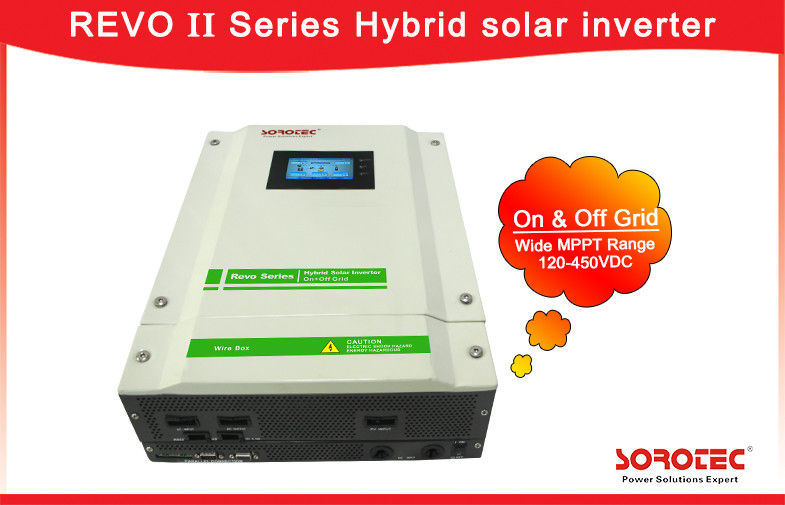

High Conversion Efficiency MPPT Solar Inverter Structure With Dust Filter

China High Conversion Efficiency MPPT Solar Inverter Structure With Dust Filter supplier
High Conversion Efficiency MPPT Solar Inverter Structure With Dust Filter supplier High Conversion Efficiency MPPT Solar Inverter Structure With Dust Filter supplier

Large Image :  High Conversion Efficiency MPPT Solar Inverter Structure With Dust Filter

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE
Model Number: REVO II

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Standard Exported Cartons and Pallets.
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T
Supply Ability: 1000PCS/Month for REVO Series Solar Inverter
Contact Now
Detailed Product Description
Max PV Array Power: 5000W Maximum AC Input Current: 60A
Nominal Output Voltage: 220/230/240VAC Nominal DC Voltage: 48VDC
Output Wave Form: Pure Sine Wave Maximum Solar Charge Current: 90A
Power Factor: =1.0 Nominal Output Current: 15A

High Conversion Efficiency MPPT Solar Inverter Structure With Dust Filter

Key Features:



1.Touch screen display.
2.PV and utility power take the load at same time(can setting).
3.Output power factor PF=1.0.
4.On&Off Grid with energy storage.
5.Energy generated record,load record,history information and fault record.
6.Language and time setting.
7.Structure with dust filter.
8.AC charging and AC output time setting.
9.Charging voltage and charging current timing.
10.External Wi-Fi device optional.
11.Parallel operation  up to 12 units .
12.Connected with battery optional.
13.Wide PV input range 120-450VDC.
14.Independent CPU.
15.MAX PV Array power 5000W.
16.Solar and Utility supply power to the load when solar power is not sufficient to load.

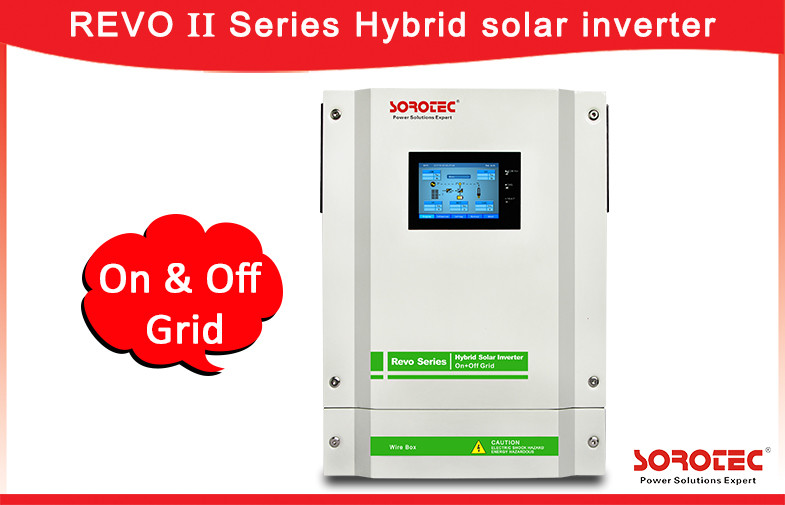

Product Show:
High Conversion Efficiency MPPT Solar Inverter Structure With Dust Filter


Wall Mounted Integrated Solar Power Inverter Technical Specification
Built-in MPPT Solar Controller





MODEL REVO II 3K-24 REVO II 3.2K-48 REVO II 5.5K-48
Max PV Array Power 5000W
Rated Output Power 3000W 3200W 5500W
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Range @ Operating Voltage 120-450VDC
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-265VAC
Nominal Output Current 15A
Efficiency Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range 90-280VAC or 170-280 VAC
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charge Current 90A
Maximum AC Charge Current 60A
Maximum Charge Current 90A
Emergency output power
Maximum output power 3000W 3200W 5500W
Automatic Transfer Time <8ms
GENERAL
INTERFACE
Parallel Function Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90% RH (No Condensing)
Operating Temperature 0 to 50 °C

High Conversion Efficiency MPPT Solar Inverter Structure With Dust Filter



COMPANY SHOW

Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.



.jpg



TRADE SHOW






WHY CHOOSE US ?



1,QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2,Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
