Stable / Reliable Hybrid Solar Power System Single Phase For Outdoor Telecom Base Station

Minimum Order Quantity : 2PCS Price : 1000USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SHW48500

Detail Information

Product Name: 48VDC Solar Power System Solar Energy Power: 3000W
Charge Current: 50A(max:61A) Input Voltage: 220VAC
Output Voltage: 48VDC System: AC To DC
Phase: Single Phase Power Factor: 0.9
Wave Form: DC Power System Maximum PV Array Open Circuit Voltage: 150VDC
Built-in: 50A MPPT Solar Charge Controller 48VDC Rectifier Module: Yes
Application: Outdoor Telecom Base Station Service: OEM Produce

Product Description



Micro Power Hybrid MPPT solar power supply 48vdc Waterproof Dust proof




SOROTEC SHW48500 series  is an off-grid type 48VDC Solar DC Power System which can provide reliable long time backup DC power supply for outdoor telecom communication equipments .it with flexible modular structure including MPPT controller module and rectifier module that can easy to enlarge the capacity as your requires.It adopts advanced Maximum Power Point Tracking technology and MCU microprocessor control technology to guarantee the solar system more reliable,economical and stable .The max efficiency high up to 98%.Waterproof and dustprof structure perfectly suitable for outdoor installation.





Brief Introductions:


Product Name 48VDC Solar Power System
Model SHW48500
Nominal Voltage 48VDC
Frequency Range 45-65HZ
Voltage Range 42-58V
Solar Charge Controller 50A (1-6PCS Selectable)
Rectifier Module 48VDC 50A (1-4PCS Selectable)
Maximum PV Array Power 3000W
Maximum Efficiency 98%
Application

Telecom,Traffic Lights,Mountains,Powere Plant,Substation Power.etc











































Product  Features:

1.Adopt advanced MCU microprocessor control technology
2.Advanced MPPT Technology.High converting efficiency higher than 97% for
   minimizing energy loss.
3.Reversed current protection at night.over voltage and reverse polarity protection
4.Capable of selection different charging mode fo various types of batteries
5.Protection degree:IP55
6.Industy-leading power density compact size and high reliability
7.Doorframe designed with waterproof structure, posted on the seal and equipped with wateerproof lock     in the door double insulation design
8.Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material, surfce coating anti-   UV power
9.Suitable for outdoor installation
10.With remote monitoring system operation



Application :

It can provide reliable DC power supply in the case of a power failure completely in plant or substation . The traditional DC systems connect battery pack and run with float charging mode .The new DC system run with silicon controlled rectifying power supply for battery.Power plant or substation power for controlling, protection and automatic device,Emergency lighting, Communications ,steam turbine DC oil pump and so on .

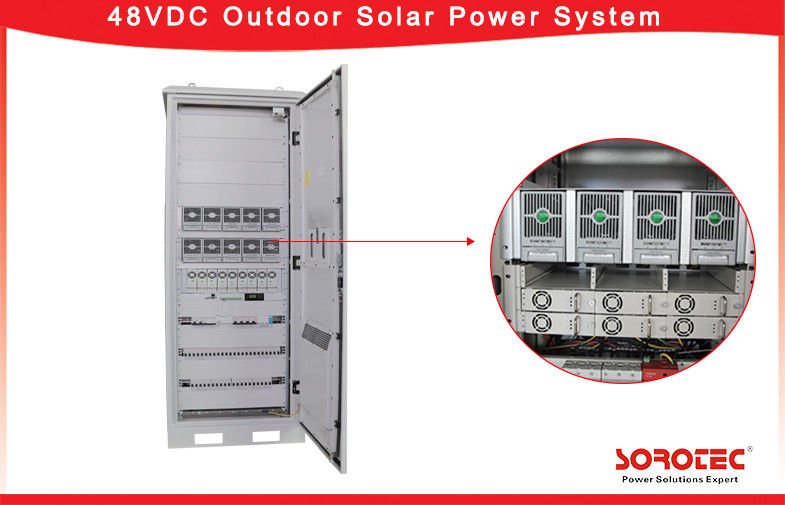

Stable / Reliable Hybrid Solar Power  System Single Phase For Outdoor Telecom Base Station

Fine Dust-proof, Water-proof Features:
According to the overall standard of design dust-proof and water-proof IP55
■With sun protection, heat insulation, roof ventilation
■With waterproof and the filtration dust inlet, the cabinet front door shutters

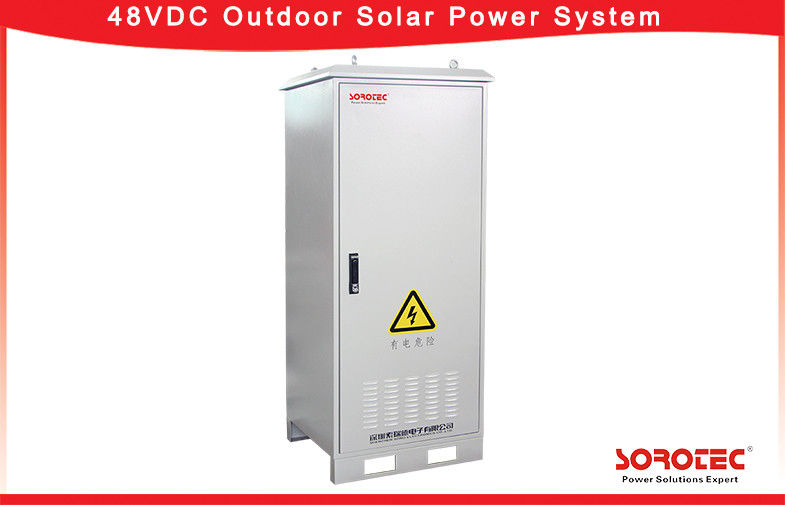

Stable / Reliable Hybrid Solar Power  System Single Phase For Outdoor Telecom Base Station





Remote Monitoring System Interface:Stable / Reliable Hybrid Solar Power  System Single Phase For Outdoor Telecom Base Station

Reliable Dust-proof, Water-proof Structure:
According to the overall standard of design dust-proof and water-proof Ip55,the system with sun protection, heat insulation, roof ventilation.with waterproof and the filtration dust inlet, the cabinet front door shutters





Typical Application:

It can provide reliable DC power supply in the case of a power failure completely in plant or substation . The traditional DC systems connect battery pack and run with float charging mode .The new DC system run with silicon controlled rectifying power supply for battery.Power plant or substation power for controlling, protection and automatic device,Emergency lighting, Communications ,steam turbine DC oil pump and so on .



Technical Specifications of SHW48500 Solar DC Power System:

SHW48500 Solar System Rectifier Module(1-10) MPPT Solar Charge Controller(1-10)
INPUT
MPPT Range @Operating Voltage 60 ~150VDC
Maximum PV Array Power 3000W
Maximum Input Current 62A
OUTPUT
Nominal Battery Voltage 42-58VDC
​Maximum Charge Current 50A(max:61A)
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
PROTECTION
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
INDICATORS
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
WIND CONTROLLER:
Input Power 1KW/2KW
Input Voltage 150-300VAC
Output Voltage 48VDC
Ouput Current 30A/50A
ENVIRONMENT
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m
