Flexible Design IP65 5G Power Integral 2K Telecom For All Major Communication Areas

China Flexible Design IP65 5G Power Integral 2K Telecom For All Major Communication Areas supplier

Large Image :  Flexible Design IP65 5G Power Integral 2K Telecom For All Major Communication Areas

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Model Number: HWZD2204810-1000

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: USD6500/1pcs
Packaging Details: 50CM*35CM*15CM
Delivery Time: 10
Payment Terms: T/T
Supply Ability: 1000pcs/m
Contact Now
Detailed Product Description
Product Name: HW Distributed Power Supply System Color: Silver
Weight: 13KG Size: W300mm*H99mm*D431mm
Entry Cable: Bottom In Line,Bottom Out Line Type: Split Mounting Type
Type 2: Integral Type Protection: IP65
For: Communications Company Work Temperature: -40℃---+55℃

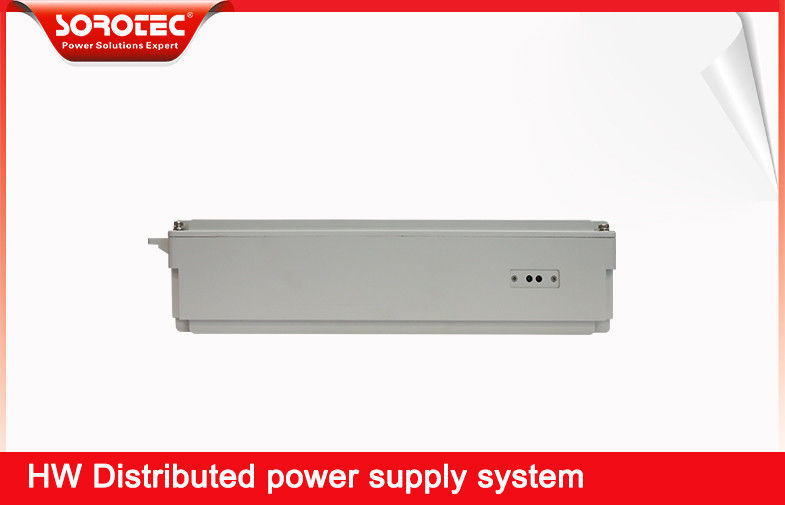

HW Distributed power supply system



.png

5G

DC unit, AC / DC input converted to-48Vdc output, support 3 line DC output, 1 line battery input.

AC unit which supports 3 line of constant AC output and 1 line.

DC connection Port. It can be connected to the battery and DC load output.

Battery unit provides reliable power preparation to AC and DC application.

DC distribution box is used to DC output path expansion.



Key Features:

Rapid deployment

 1.Compact in size and light in weight;

2.Save station, save space;

3.Easy to handle and transport.

4.Flexible design with 10 minutes quick station of single person

5.Power unit and battery unit support modular capacity expansion.

6.Support pole installation and wall installation, and support flag installation.

7.Support multi - system input: AC, DC input




Brief introduction

HW distributed power supply is a new generation specially that designed for the terminal device  of communication network.

It is mainly used for Easy Macro, indoor or out door of RRU room, AC and DC power supply,and other standby electric application.

It supports varies of installation methods, such as pole installation and wall installation, and support flag installationand surface mounted installation.It also has the advantages of easy to installation, expanding  maintenance-free,and flexible power module.



             1-2.jpg                         1-3.jpg







Simple operation:
- Maintennace of near-end mobile phone APP management,
free of tower maintenance, support intelligent monitoring.
- Natural heat dissipation, reduce temperature control
equipment energy consumption, zero noise. 3 to 5 years
free of daily maintenance.

Reliable power supply:
- IP65 protection grade, adapt to the harsh application
environment, like rain or shine.
- Wide temperature operating range-40 ℃ ~ + 55 ℃, high
reliability of lithium iron battery.

Application scenarios:
1. Indoor/outdoor distributed site
2. RRU remote station
3. Easy Macro site
4. Lamp site
5. AtomCelloutdoor hot spot or blind coverage




DC scene power supply solution

Product model AC/DC rectifier module  HWD series DC/DC boost    module Battery module
System    indicators Type Integral type
     (built in 20AH
     battery)
Split mounting type
Size 300mm (W) ×200 mm (H)× 431mm (D) 300mm (W) ×99 mm (H)× 431mm    (D)
Weight 27kg 13kg 11kg 25kg
Installation wall-mounted,pole    mounted,flag installation,angle  steel    tower installation
Rated power/Capacity 1000W 2000W 3000W 1000W 2000W/20AH
Entry cable Bottom in line, bottom out    line
Protection class IP65
Work temperature -40℃~+55℃ -40℃~+55℃ 45℃ above applications need to be equipped with    sunshade
The cooling mode Natural heat dissipation
Environmental    indicators Storage/Transport
     Temperature
-40℃~+70℃
Operating humidity 5%~95%(non-condensing)
Altitude -60m~4000m(For every 200m    increase in altitude from 2000m to 4000m, the highest working
     temperature decreases by 1℃)
Input Input format 220VAC single phase/110VAC    double live wire /HVDC -48VDC -48VDC
Input voltage AC:85~300VAC,HVDC:85~400VDC -40VDC ~ -60VDC -48VDC
Input frequency 45Hz~65Hz NA NA
AC input 1×220V/10A 1×220V/20A 1×220V/30A NA NA
AC lightning protection Difference Mode:20kA,  common mode:20kA
Output Output power 1000W 2000W 3000W 1000W
Output voltage 48VDC     280VDC -48VDC
DC output 3×10A(With a replaceable fuse) 3×20A(With a replaceable fuse) 3×30A(With a replaceable fuse) 2×10A 1×20A
DC lightning protection Difference Mode:10kA, common    mode:20kA
The module efficiency   ≥96% ≥90% NA
Communication interface Interface definition 2× DB15    Port(CAN+3×DO+RS485+RS232) 1 way CAN 1 way CAN,1 way RS485







AC scenario power supply scheme



Product model AC inverter module HWA series Battery module
System    indicators Type Assembled type
Size 300mm (W) ×99 mm (H)× 431mm    (D)
Weight 30kg
Installation wall-mounted,pole    mounted,flag installation,angle  steel    tower installation
Rated power/capacity 1000VA 2000VA 2000W/20AH
Entry cable Bottom in line, bottom out    line
Protection rank IP65
Working temperature -40℃~+55℃ -40℃~+55℃ 45℃ above applications need to be equipped with    sunshade
Cooling mode Natural heat dissipation
Environmental    indicators Storage/transportation temperature -40℃~+70℃
Operating humidity 5%~95%(No condensation)
Altitude -60m~4000m(2000m~4000m For    every 200m increase in altitude, the highest working temperature B28    H10decreases by 1℃)
Input Input formats 220VAC one phase -48VDC
Input voltage AC:85~300VAC -48VDC
Input frequency 45Hz~65Hz NA
Ac input 1×220V/10A 1×220V/20A NA
Ac lightning protection Dierence mode: 20kA,    common mode:
     20kA
NA
Output Output power factor 0.8(0.9 optional) NA
Output power 800W 1600W
Output voltage 220VAC -48VDC
Ac output 3×16A(With a replaceable    fuse) NA
Module efficiency   ≥93% NA
Communication
     interface
Interface definition 2× DB15 Port(3×DO+RS232) 1way *CAN,1way*RS485
