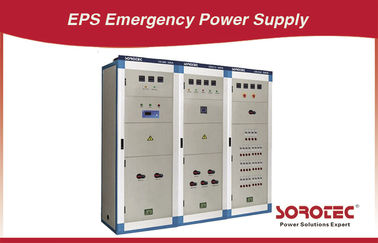

324V 3phase EPS Emergency Power Supply Sinewave YJS Series

China 324V 3phase EPS Emergency Power Supply Sinewave YJS Series supplier
324V 3phase EPS Emergency Power Supply Sinewave YJS Series supplier 324V 3phase EPS Emergency Power Supply Sinewave YJS Series supplier

Large Image :  324V 3phase EPS Emergency Power Supply Sinewave YJS Series

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: SYJ series fire proof lighting EPS

Payment & Shipping Terms:

Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Contact Now
Detailed Product Description
Input Voltage: 380VAC ± 25% Phase: Three Phases + Four Wires + PE
Frequency: 50HZ ± 0.5% Output Capacity: 2.2KW - 500KW
Voltage: 380VAC ± 3% Wave Form: Sine Wave (THD ≤ 3%)

324V 3phase EPS Emergency Power Supply Sinewave YJS Series


Features:
Our lighting power EPS adopts intelligent IPM module, which ensures the output is reliable and balanced.
It can be used together with fireproof linkage system for centralized control.. CPU control and pure sine wave output.
Inductance and mixed load devices.
RS232 or RS485 remote monitoring.
Designed with both LED and LCD display.
Easy maintenance, long service life, and energy saving.



Applications:
Our EPS YJS series is extensively applied to banks, hospitals, hotels, markets, schools, bus or rail stations, sea or air ports, exhibition buildings, sport buildings, tunnels, etc.


Technical Specification of Lighting Power EPS (Emergency Power Supply) EPS YJS series


Model

YJS series 2.2-500KW

YJS 2.2-22KW

YJS 25-500KW

Input

Voltage

380VAC ± 25%

Phase

Three phases + four wires + PE

Frequency

50HZ ± 5%

Output

Capacity

2.2KW - 500KW

Voltage

380VAC ± 3%

Wave form

Sine wave (THD ≤ 3%)

Frequency

50HZ ± 0.5%

Overload

≥ 120% 30 s ,   ≥ 150% 5 s

Battery

Type

VRLA (valve regulated lead acid),  sealed,  and maintain-free.

Nominal voltage

216VDC

324VDC

Charge time

< 24 hours

Backup time

90 minutes (Chinese standard,  and it's adjustable.)

Transfer time

<5 s (≤ 0.25s,  ≤ 0.25ms or 0ms is optional)

Protection

Overload,  short-circuit,  low voltage and lacking phase.

Display

LED or LCD,  or both LED and LCD

Efficiency

DC mode ≥ 92%,  AC mode ≥ 98%

Working condition

Noisy (1 m distance)

AC mode 0 dB,  DC mode ≤50dB (≥75KW,  ≤65dB)

Humidity

0-90% non condensing

Temperature

-20℃ - 40℃

Height of sea level

> 2000m

Adaptive load

Suitable to both the inductive
load and inductance capacitance
load,  or mixed load.

Open doorr and
coil in method

Single open for front door,
double open for back door,
coil in and out in bottom
(standard or customized).
