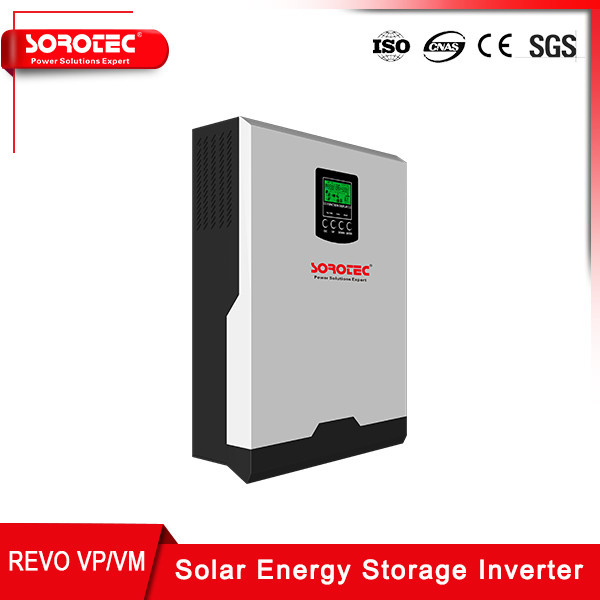

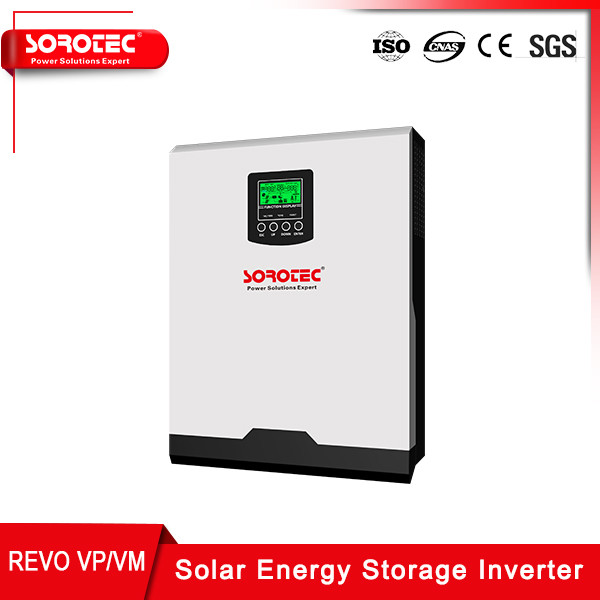

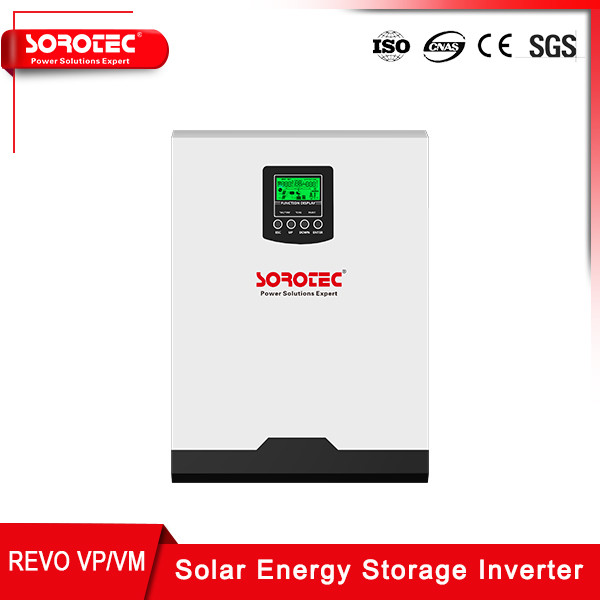

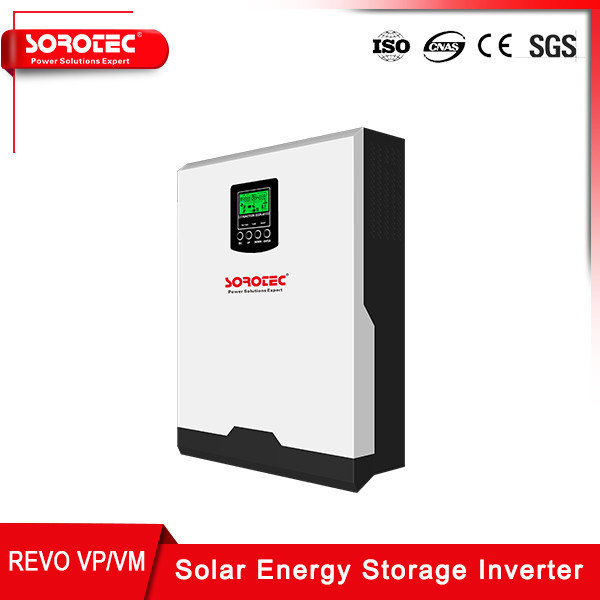

Solar Energy Storage Inverter revo vp/vm series Built-in MPPT/PWM Solar Controller

Minimum Order Quantity : 10PCS Price : $199-$460/Piece
Packaging Details : Packaging Details Carton, export type packing or according to your requirement Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C , T/T Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE Model Number: REVO VM/VP

Detail Information

Voltage: 230 VAC Frequency Range: 50 Hz/60 Hz (Auto Sensing)
50 Hz/60 Hz (Auto Sensing): 230VAC ± 5% Surge Power: 10000VA
Transfer Time: 10 Ms (For Personal Computers) ; 20 Ms (For Home Appliances) Waveform: Pure Sine Wave
Solar Charger Type: MPPT Type: DC/AC Inverters
Warranty: 12 Months

Product Description

Solar Energy Storage Inverter REVO VP/VM series Built-in MPPT/PWM Solar Controller



Key Features:

Pure sine wave solar inverter
Output power factor 1
Selectable high power charging current
Wide DC input range
Selectable input voltage range for home appliances and personal computers
Confifigurable AC/Solar input priority via LCD setting
Compatible to AC mains or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Optional anti-dusk kit




10000

MODEL REVO VP 1000-12 REVO VM 1200-12 REVO VP 2000-24 REVO VM 2200-24 REVO VP 3000-24 REVO VM 3200-24 REVO VM 3000-24 Plus REVO VP 5000-48 REVO VM 5000-48
Rated Power 1000VA/1000W 2000VA/2000W 3000VA / 3000W 5000VA / 5000W
INPUT
Voltage 230 VAC
Selectable Voltage
Range
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation
(Batt. Mode)
230VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 10000VA
Efficiency (Peak) 90% ~ 93%
Transfer Time 10 ms  (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 12 VDC 24 VDC 48 VDC
Floating Charge Voltage 13.5 VDC 27 VDC 54 VDC
Overcharge Protection 16 VDC 31 VDC 33 VDC 63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type PWM MPPT PWM MPPT PWM MPPT PWM MPPT
Maximum PV Array
Open Circuit Voltage
55 VDC 102 VDC 80 VDC 102 VDC 80 VDC 102 VDC 145 VDC 105 VDC 145 VDC
Maximum PV Array
Power
600 W 500 W 1200 W 1000 W 1200 W 1000 W 1500 W 2400 W 3000 W
MPP Range @
Operating Voltage
N/A 17 ~ 80 VDC N/A 30 ~ 80 VDC N/A 30~80 VDC 30~115 VDC N/A 60~115 VDC
Maxmum Solar Charge
Current
50 A 40 A 50 A 40 A 50 A 40 A 60 A 50 A 60 A
Maximum AC Charge
Current
20 A 20 A 20 A 25 A 25A 25A 60 A 60 A 60 A
Maximum Charge
Current
50 A 60 A 50 A 60 A 70 A 60 A 120 A 110 A 120 A
PHYSICAL
Dimension,
D x W x H (mm)
88 x 225 x 320 100 x 285 x 334 100x300x400 100 x 300 x 440
Net Weight (kgs) 4.4 4.4 5 5 6.3 6.5 9.5 8.5 9.7
Communication
Interface
USB/RS232
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
MORE PRODUCTS TO CHOOSE



Solar Energy Storage Inverter revo vp/vm series Built-in MPPT/PWM Solar Controller 3



THREE STRATEGIC INDUSTRIES



Solar Energy Storage Inverter revo vp/vm series Built-in MPPT/PWM Solar Controller 4





APPLICATION OF OUR PRODUCT






1. Living house and home building.

2. Office building, factory and warehouse.

3. Shopping mall, stadium and so on.

4. Power station, field operation and some huge engineer construction.

5. Suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.



FACTORY SHOW


Factoy View.jpg



COMPANY SHOW

Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.



.jpg



TRADE SHOW








WHY CHOOSE US ?



1,QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2,Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.



CERTIFICATIONS



Certification





OUR MARKET






PACKAGING




FAQ
FAQ



1.How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power.



 .......................................................................................................................................................................................................................................



2.How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.



........................................................................................................................................................................................................................................



3.How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.



  .....................................................................................................................................................................................................................................



4.How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:



Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)



.......................................................................................................................................................................................................................................
