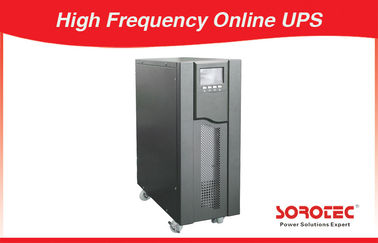

3 Phase High Frequency Online UPS , high frequency power supply

Minimum Order Quantity : 1PCS Packaging Details : Standard Exported Cartons and Pallets
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : 30% TT in advance, the balance before shipping
Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: HP9335C 10 - 20KVA

Product Description

3 Phase High Frequency Online UPS , high frequency power supply





Key Features:
■ True double-conversion


■ DSP technology guarantees high performance


■ Output power factor 0.8


■ Wide input voltage range (110-300 VAC)


■ Active power factor correction in all phases


■ 50Hz/60Hz frequency converter mode


■ ECO mode operation for energy saving


■ Accepts dual-mains inputs


■ Emergency power off function (EPO)


■ Generator compatible


■ SNMP+USB+RS-232 multiple communications


■ 3-stage extendable charging design for optimized battery performance


■ Adjustable battery numbers


■ Maintenance bypass available


■ Optional N+X parallel redundancy


■ Optional isolation transformer offers full isolation and complete common mode noise rejection





Technical Specifications of Online UPS HP9335C Series:





MODEL

                   HP9335C 10-20KVA

10K

10K-XL

15K

15K-XL

20K

20K-XL

PHASE

3-phase in / 3-phase out

CAPACITY

10000 VA / 8000 W

15000 VA / 12000 W

20000 VA / 16000 W

INPUT

NominalVoltage

3 x 400 VAC (3Ph+N)

InputVoltageRange

305-478 VAC (3-phase) at 100% load ; 190-520 VAC (3-phase) at50% load

Frequency Range 46~54 Hz or 56~64Hz
Power Factor ≧ 0.99 @ 100% Load

OUTPUT

Output Voltage

3 x 400V (3Ph+N)

AC Voltage Regulation (Batt. Mode)

± 1%

Frequency Range(SynchronizedRange)

46~54Hz or 56~64Hz

46~54Hz or 56~64Hz

50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz

Harmonic Distortion

≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load)

Transfer
Time

AC Mode to Batt. Mode

Zero

Inverter to Bypass Zero
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
AC Mode 89% 89% 89%
Battery Mode 86% 88% 87%
BATTERY
Standard
Model
Battery Type 12 V / 9 Ah
Numbers 20 pcs (18 - 20 adjustable) 20 pcs x 2 strings (18 - 20 adjustable)
Typical Recharge Time 9 hours recover to 90% capacity
Charging Current (max.) 1A 2A 2A
Charging Voltage 273 VDC ± 1%
Long-run Model Battery Type Depending on the capacity of external batteries
Numbers
Charging Current (max.) 4A 4A 4A
Charging Voltage 273 VDC ± 1%
INDICATORS
LCD Display UPS status, Load level, Battery level, Input/Output voltage, Discharge timer,and Fault
ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continously sounding
PHYSICAL
Standard Model Dimension,D x W xH(mm) 815 x 250 x 826 815 x 250 x 826 815 x 250 x 826
Net Weight (kgs) 109 164 164
Long-run
Model
Dimension,D x W xH(mm) 592 x 250 x 826 592 x 250 x 826 592 x 250 x 826
Net Weight (kgs) 38 40 40
ENVIRONMENT
Humidity 0-95 % RH @ 0- 40°C (Non-condensing)
Noise Leve Less than 58dB @ 1 Meter Less than 60dB @ 1 Meter
MANAGEMENT
Smart RS-232 / USB Supports Windows22000/2003/XP/Vista/2008, Windows27/8, Linux, Unix, and MAC
Optional SNMP Power management from SNMP manager and web browser

3 Phase High Frequency Online UPS , high frequency power supply
