400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design

Good quality High Frequency Online UPS for sales
Good quality High Frequency Online UPS for sales
As an exclusive agent UPS distributor of SORO, We enjoyed wonderful business cooperation with them. Let's grow fast together!

—— Dennis Spalding --from LAX, USA

Perfect UPS, Perfect software(SNMP card), Perfect service, that is SORO UPS!!!

—— Antonie Williams --from Dubai

April, 2015, I visited Sorotec factories, I was pleasantly suprised by their design and artwork to ensure quality!!

—— Anuoluwapo Omobolaji Ayokunle

I'm Online Chat Now

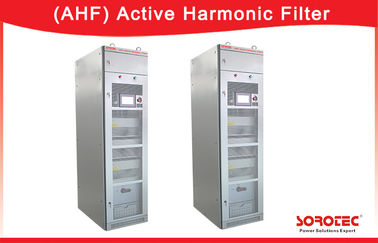

400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design

China 400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design supplier
400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design supplier 400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design supplier

Large Image :  400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design

Product Details:

Place of Origin: China(Mainland),Guangdong
Brand Name: SOROTEC
Certification: CE,ISO9000
Model Number: Active Harmonic Filter

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Standard Export Wooden Package
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T
Supply Ability: 1000PCS/Month for Active Harmonic Filter
Contact Now
Detailed Product Description
Rated Capacity: 35A/50A/60A/100A/150A Overall Efficiency: ≥ 97%
Power Grid Frequency: 50Hz/60Hz ( Range: ±10%) Rated Input: 400V/690V(-20%-+15%)
Power Grid Structure: 3P3L, 3P4L Harmonic Compensation: Available

400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design



AHF

Meeting users' requirements:
- PF=0.99 and THDi < 5%

- Compensation for 2- to 50-order harmonics
- Capacitive and inductive reactive power compensation
- Three-phase unbalance compensation





Product Structure:

400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design



Installation Rack Wall Mounted
Dimension(mm) 30A/50A 100A 150A 30A/50A 100A 150A
A 359 484 554 512.5 611 621
B 341 466 536 500 575 585
C 315 440 510 300 300 300
D 200 232 250 120.5 137.5 142.5
E 89 89 89 379 500 570
F 55.5 71.5 80.5 350 475 545
G 556.5 646 656 315 440 510
H 500 575 585 200 232 250
K 35 35 35





Product Descriptions of Active Harmonic Filter



Item
Rated input 400V/690V(-20%-+15%)
Power grid frequency 50Hz/60Hz ( range: ±10%)
Parallel operation Unlimited
Overall efficiency ≥ 97%
Power grid structure 3P3L, 3P4L
CT 150/5 ~ 10,000/5
Performance indicators
Rated capacity 35A/50A/60A/100A/150A
Harmonic compensation Available
Reactive power compensation Available
Unbalance compensation Available
Filtering range 2 to 50 orders
Filtering degree Adjustable from 2 to 50
Filter performance THDi< 5%
Overall response time < 10ms
Target power factor Adjustable from -1 to +1
Control algorithms FFT,Intelligemt, and instantaneous reactive power
Switching frequency 20kHz
Noise level < 60dB
Communications and monitoring capabilities
Communications ports RS485,and network port
Communications protocols TCP/IPPMBus, Modbus, and TCP/IP
Module display interface Touch screen
PC software Optional
Protection functions over-valtage protection, under-voltage protection, short-circuit protection, inverter bridge inverse protection,over-compensation protection, and so on
Fault alarm Available, at most 500 alarm records
Monitoring Independent monitoring and centralized monitoring
Mechanical properties
Altitude 1% up 1500 m. Between 1500 m to 4000 m, according to GB/T3859.2, the power decreases by 1% for every
additional 100 m.
Operating temperature -10℃ ~ +40℃
Relative humidity 5% to 95%, non-condensing
Protection class IP20 (other IP classes are customizable.)





PRODUCT SHOW



Internal Module Display

400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design
400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design
400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design

APPLICATION OF OUR PRODUCT



1. Living house and home building.

2. Office building, factory and warehouse.

3. Shopping mall, stadium and so on.

4. Power station, field operation and some huge engineer construction.

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.





COMPANY SHOW



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.





WHY CHOOSE US ?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.





FAQ



1. How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................



2. How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



3. How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions

.......................................................................................................................................................................



4. How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................







400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design
