|Product Name:||Outdoor Off -Grid 48V Solar DC Power||DC Voltage:||48V|
|Input Voltage:||220V||Built-in Solar Controller:||3000W/50A MPPT|
|Output Current:||0-200Amp||Power Factor:||>0.99|
|Charging Methos:||Bulk,absorption And Floating||Frequency:||50/60HZ|
|Protection:||Overload And Overcharge||Display:||LCD&LED|
|Modular:||Fan Modular,DC Power Modular,Solar Controller Modular||Application:||Outdoor Telecom|
|Remote Control:||Yes||Maximum Efficiency:||98%|

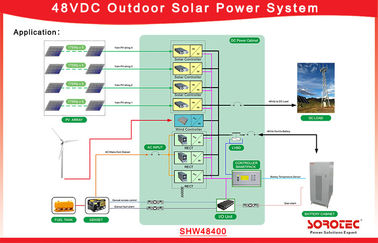

Outdoor Installation Telecom 48V Off Grid Solar DC Power Supply System
Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC systems. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.
■Adopt advanced MCU microprocessor control technology.
■Advanced MPPT Technology,High converting efficiency higher than 97% for minimizing energy loss.
■Reversed current protection at night, over voltage and reverse polarity protection.
■Capable of selecting different charging mode for various types of batteries.
■Industy-leading power density compact size and high reliability;
■Doorframe designed with waterproof structure, posted on the seal and equipped with waterproof lock on the door
double insulation design;
■Cabine adopt quality galvanized sheet or aluminum coated steel sheet as material, surface coating anti-UV power;
■Suitable for outdoor installation.
Fine dust-proof, water-proof features
According to the overall standard of design dust-proof a n d w ater-proof Ip55
■With sun protection, heat insulation, roof ventilation
■With waterproof and the filtration dust inlet, the cabinet front door shutters
Detailes of SHW48200 Solar DC Power System:
|SHW48200 Solar System||Rectifier Module(1-4pcs) MPPT Solar Charge Controller(1-6pcs)|
|MPPT Solar Charge Controller|
|MPPT Range @Operating Voltage||60 ~115VDC|
|Maximum PV Array Open Circuit Voltage||145VDC|
|Maximum PV Array Power||3000W|
|Maximum Input Current||50A|
|Nominal Battery Voltage||42-58VDC|
|Maximum Charge Current||50A|
|Charging Method||Three stages: bulk, absorption and ﬂoating|
|Overload Protection||> 110% : audible alarm|
|Polarity Reversal Protection @Solar Cell & Battery||Yes|
|LCD Panel||LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions|
|LED Display||Three indicators for solar, charging, and load status|
|Rated input voltage||220V|
|AC input Voltage range AC||90-290V|
|input Frequency range||45-65HZ|
|Rated output voltage||48V|
|Rated output current||0-50A|
|Humidity||0 ~ 100% RH (No condensing)|
|Operating Temperature||-20°C to 55°C|
|Storage Temperature||-40°C to 75°C|
|Altitude||0 ~ 3000 m|
