48VDC Solar DC Power System Built-in MPPT Solar Charge Controller with control monitoring

China 48VDC Solar DC Power System Built-in  MPPT Solar Charge Controller with control monitoring supplier

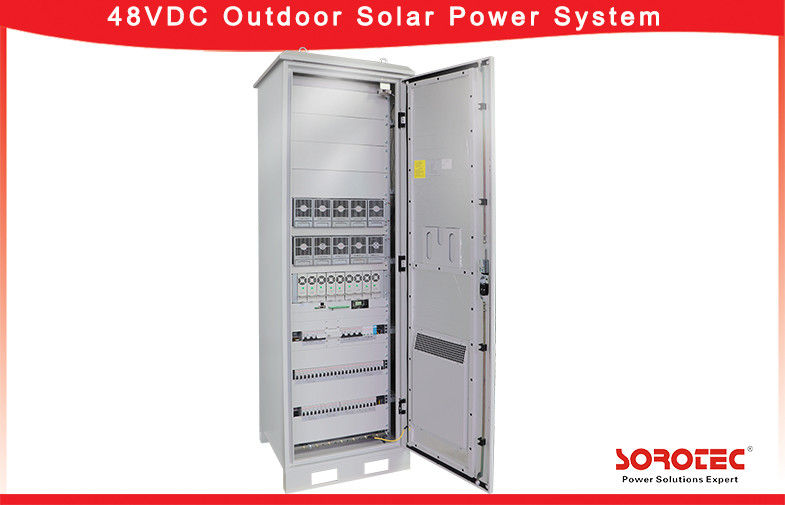

Large Image :  48VDC Solar DC Power System Built-in MPPT Solar Charge Controller with control monitoring

Product Details:

Place of Origin: Shenzhen China
Brand Name: SOROTEC
Certification: ISO9001,CE
Model Number: SHW48500 Solar DC Power

Payment & Shipping Terms:

Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: Standard Export Carton Or Wooden Packing
Delivery Time: Within 15-30 days after received your deposit
Payment Terms: L/C, T/T
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Product Name: Outdoor Solar DC Power System Product Model: SHW48500
Battery Voltage: 48VDC Charge Controller: 50A/3000W MPPT
Rectifier Function: AC To DC Output Current: 50-500Amp
Output Power Factor: >0.99 Protection: Overload And Overcharge
Display Screen: LCD&LED Charging Method: Three Stages
Main Application: Provide DC Power For Outdoor Telecom Equipments Water-proof: Yes
Charging Mode: Selectable Protection Degree: IP55
AdvancedTechnology: MCU Microprocessor Control Air Conditional: Selectable
OEM Or LOGO: Available

Outdoor Hybrid 48V Solar DC Power System Built-in MPPT Solar Charge Controller





SHW48500 Series Off-Grid  Solar DC Power System:

Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC systems. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.



48VDC Solar DC Power System Built-in  MPPT Solar Charge Controller with control monitoring



Key Features:
■Adopt advanced MCU microprocessor control technology.
■Advanced MPPT Technology,High converting efficiency higher than 97% for minimizing energy loss.
■Reversed current protection at night, over voltage and reverse polarity protection.
■Capable of selecting different charging mode for various types of batteries.
■Protection degree:IP55
■Industy-leading power density compact size and high reliability;
■Doorframe designed with waterproof structure, posted on the seal and equipped with waterproof lock on the door
double insulation design;
■Cabine adopt quality galvanized sheet or aluminum coated steel sheet as material, surface coating anti-UV power;
■Suitable for outdoor installation.

With remote monitoring system operation.

48VDC Solar DC Power System Built-in  MPPT Solar Charge Controller with control monitoring

Fine Dust-proof, Water-proof Features:
According to the overall standard of design dust-proof and water-proof IP55

■With sun protection, heat insulation, roof ventilation
■With waterproof and the filtration dust inlet, the cabinet front door shutters



48VDC Solar DC Power System Built-in  MPPT Solar Charge Controller with control monitoring



Remote Monitoring System Interface:

48VDC Solar DC Power System Built-in  MPPT Solar Charge Controller with control monitoring



Specifications Of SHW48500 Series Solar DC Power Systems:



SHW48500 Solar System Rectifier Module(1-10) MPPT Solar Charge Controller(1-10)
INPUT
MPPT Range @Operating Voltage 60 ~150VDC
Maximum PV Array Power 3000W
Maximum Input Current 62A
OUTPUT
Nominal Battery Voltage 42-58VDC
​Maximum Charge Current 50A(max:61A)
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
PROTECTION
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
INDICATORS
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
WIND CONTROLLER:
Input Power 1KW/2KW
Input Voltage 150-300VAC
Output Voltage 48VDC
Ouput Current 30A/50A
ENVIRONMENT
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m
