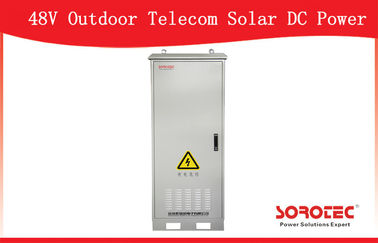

Waterproof Solar 48V DC Power Supply System for Communication Base Station,With remote monitoring system operation

Minimum Order Quantity : 2PCS Price : 1000USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SHW48500 Solar DC Power System

Detail Information

Nominal Voltage: 48VDC Rated Input Voltage: 220VAC
Rated Output Current: 50-500Amp MPPT Solar Charge Controller: 50A
Protection Degree: IP55 Feature: High Reliability,Waterproof And Dustproof,
Technology: MCU Microprocessor Control High Efficiency: 98%
Flexible Module Structure: MPPT Controller Module /Rectifier Module Cabinet Color: White
Installation: Outdoor Protection: Overvoltage/Overcharge
Maximum PV Array Power: 3000W Application: Communication Base Station ,telecom Tower,mountains
Operating Temperature: -20°C To 55°C

Product Description

48VDC Waterproof Solar DC Power Supply System for Communication  Base Station



Brief Introduction

SOROTEC SHW48500 Series Solar DC Power System with independent DC systems.Flexible modular structure for MPPT Solar Charge Controller and Rectifier module.  It can provide reliable DC power supply in the case of a power failure completely in plant or substation . Waterproof and dustproof structure perfectly suitable for outdoor installation .The traditional DC systems connect battery pack and run with float charging mode .The  new DC system run with silicon controlled rectifying power supply for battery.





Dust-proof, water-proof  Design
According to the overall standard of design dust-proof and water-proof IP55
■With sun protection, heat insulation, roof ventilation
■With waterproof and the filtration dust inlet, the cabinet front door shutters





Key  Features:

  • Adopt advanced MCU microprocessor control technology
  • Advanced MPPT Technology.High converting efficiency higher than 97% for
    minimizing energy loss.
  • Reversed current protection at night.over voltage and reverse polarity protection
  • Capable of selection different charging mode fo various types of batteries
  • Protection degree:IP55
  • Industy-leading power density compact size and high reliability
  • Doorframe designed with waterproof structure, posted on the seal and equipped with wateerproof lock in the door double insulation design
  • Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material, surfce coating anti-UV power
  • Suitable for outdoor installation

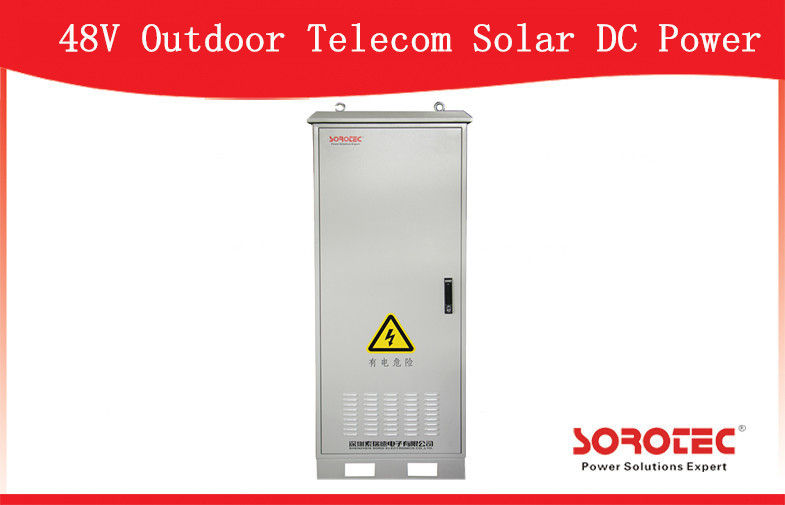

  • With remote monitoring system operation​Waterproof Solar 48V DC Power Supply System for Communication Base Station,With remote monitoring system operation



Application

-Power plant or substation power for controlling, protection and automatic device,Emergency lighting,Communications, steam turbine DC oil pump and so on .





Remote Monitoring System InterfaceWaterproof Solar 48V DC Power Supply System for Communication Base Station,With remote monitoring system operation

SOROTEC SHW48500 Series Solar DC Power System Specification

SHW48500 Solar System Rectifier Module (1-10pcs) ;MPPT Solar Charge Controller (1-10pcs)
MPPT Solar Charge Controller
INPUT
MPPT Range @Operating Voltage 60 ~115VDC
Maximum PV Array Open Circuit Voltage 145VDC
Maximum PV Array Power 3000W
Maximum Input Current 50A
OUTPUT
Nominal Battery Voltage 42-58VDC
Maximum Charge Current 50A
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
PROTECTION
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
INDICATORS
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
ENVIRONMENT
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m



Waterproof Solar 48V DC Power Supply System for Communication Base Station,With remote monitoring system operation
