48V DC Output Off Grid Solar Panel Power System for Outdoor Telecom Base Station

China 48V DC Output Off Grid Solar Panel Power System for Outdoor Telecom Base Station supplier

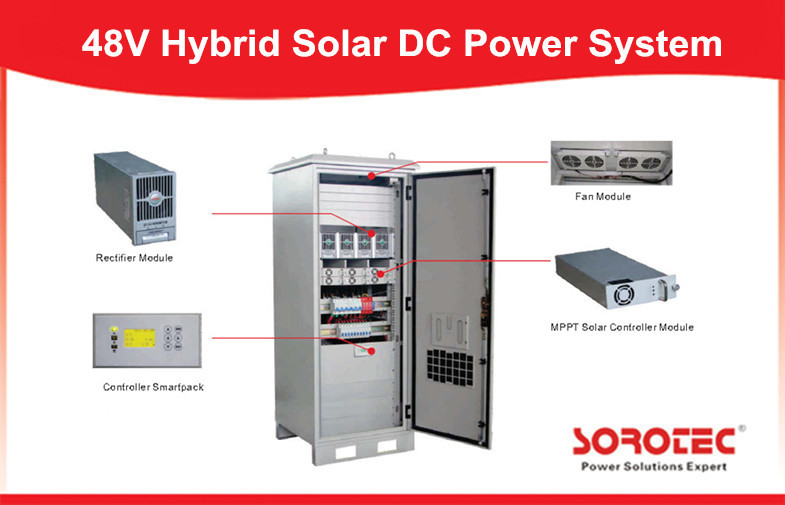

Large Image :  48V DC Output Off Grid Solar Panel Power System for Outdoor Telecom Base Station

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000
Model Number: SHW48200

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: 300
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: Western Union, T/T, L/C
Supply Ability: 5000PCS Per Month
Contact Now
Detailed Product Description
Type: Off-grid Solar DC Power System Phase: Single Phase
Power Factor: 0.9 Waveform: Pure Sine Wave
Input Voltage: 220VAC Output Voltage: 48VDC
Solar Power: 3000W Charging Current: 50Amp
Module Structure: Rectifier Module ,mppt Controller Module Application: Telecom Base Station,telecom Tower,traffic Lights,mountains
Aluminum Cabinet: Yes Monitoring Module: Yes
OEM Produce: Yes

Application:



Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC systems. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.



Key Features:


■Adopt advanced MCU microprocessor control technology.
■Advanced MPPT Technology,High converting efficiency higher than 97% for minimizing energy loss.
■Reversed current protection at night, over voltage and reverse polarity protection.
■Capable of selecting different charging mode for various types of batteries.
■Protection degree:IP55
■Industy-leading power density compact size and high reliability;
■Doorframe designed with waterproof structure, posted on the seal and equipped with waterproof lock on the door
double insulation design;

Cabine adopt quality galvanized sheet or aluminum coated steel sheet as material, surface coating anti-UV power;
■Suitable for outdoor installation.





Fine Dust-proof, Water-proof Features:
According to the overall standard of design dust-proof and water-proof Ip55
■With sun protection, heat insulation, roof ventilation
■With waterproof and the filtration dust inlet, the cabinet front door shutters



Technical Specifications :

SHW48200 Solar System Rectifier Module (1-4pcs) MPPT Solar Charge Controller (1-6pcs)
MPPT Solar Charge Controller
INPUT
MPPT Range @Operating Voltage 60 ~115VDC
Maximum PV Array Open Circuit Voltage 145VDC
Maximum PV Array Power 3000W
Maximum Input Current 50A
OUTPUT
Nominal Battery Voltage 42-58VDC
Maximum Charge Current 50A
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
PROTECTION
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
INDICATORS
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
ENVIRONMENT
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m

48V DC Output Off Grid Solar Panel Power System for Outdoor Telecom Base Station
