50A Hybrid Solar Power System 48V DC Power Supply with hot swappable module structure,Remote Monitoring System Interface

China 50A Hybrid Solar Power System 48V DC Power Supply with hot swappable module structure,Remote Monitoring System Interface supplier

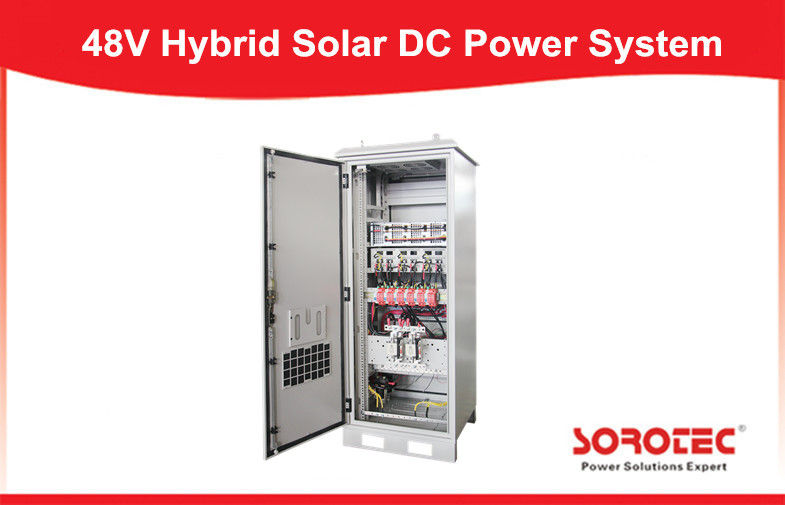

Large Image :  50A Hybrid Solar Power System 48V DC Power Supply with hot swappable module structure,Remote Monitoring System Interface

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000
Model Number: SHW48500

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: 300
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000PCS Per Month
Contact Now
Detailed Product Description
Product: 48V DC Solar Power System Type: Off-grid
Phase: Single Phase Input Voltage: 220VAC
DC Voltage: 48VDC High Efficiency: 97%
Built-in: MPPT Solar Charge Controller Frequency: 50/60HZ
Cabinit Structure: Yes Water-proof: Yes
Charging Mode: PV/Mains Application: Communication Base Station ,telecom Tower,mountains

50A 48VDC Hybrid Solar Power System with hot swappable module structure



Brief Introduction:

SOROTEC SHW48500 Series Solar DC Power System widely application in Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent   DC systems.It can provide reliable power supply in the case of a power  failure completely in plant or substation.The traditional DC systems connect batterypack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.



Key Features:
Adopt advanced MCU microprocessor control technology
Advanced MPPT Technology.High converting efficiency higher than 97% for
   minimizing energy loss.
Reversed current protection at night.over voltage and reverse polarity protection
Capable of selection different charging mode fo various types of batteries
Protection degree:IP55
Industy-leading power density compact size and high reliability
Doorframe designed with waterproof structure, posted on the seal and equipped

  with wateerproof lock in the door double insulation design
Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material,

  surfce coating anti-UV power
Suitable for outdoor installation
With remote monitoring system operation



Remote Monitoring System Interface50A Hybrid Solar Power System 48V DC Power Supply with hot swappable module structure,Remote Monitoring System Interface

Fine Dust-proof, Water-proof Features:

According to the overall standard of design dust-proof and water-proof IP55
■With sun protection, heat insulation, roof ventilation
■With waterproof and the filtration dust inlet, the cabinet front door shutters



Technical Specifications :

SHW48500 Solar System Rectifier Module (1-10pcs) MPPT Solar Charge Controller (1-10pcs)
MPPT Solar Charge Controller
INPUT
MPPT Range @Operating Voltage 60 ~115VDC
Maximum PV Array Open Circuit Voltage 145VDC
Maximum PV Array Power 3000W
Maximum Input Current 50A
OUTPUT
Nominal Battery Voltage 42-58VDC
Maximum Charge Current 50A
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
PROTECTION
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
INDICATORS
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
ENVIRONMENT
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m

 50A Hybrid Solar Power System 48V DC Power Supply with hot swappable module structure,Remote Monitoring System Interface50A Hybrid Solar Power System 48V DC Power Supply with hot swappable module structure,Remote Monitoring System Interface50A Hybrid Solar Power System 48V DC Power Supply with hot swappable module structure,Remote Monitoring System Interface
