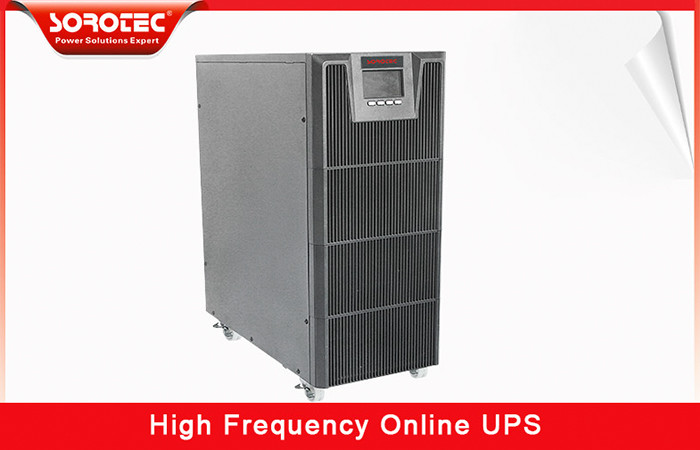

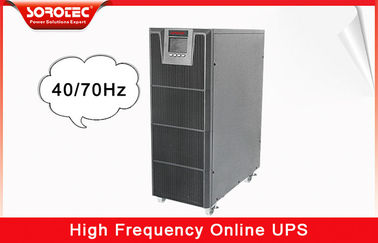

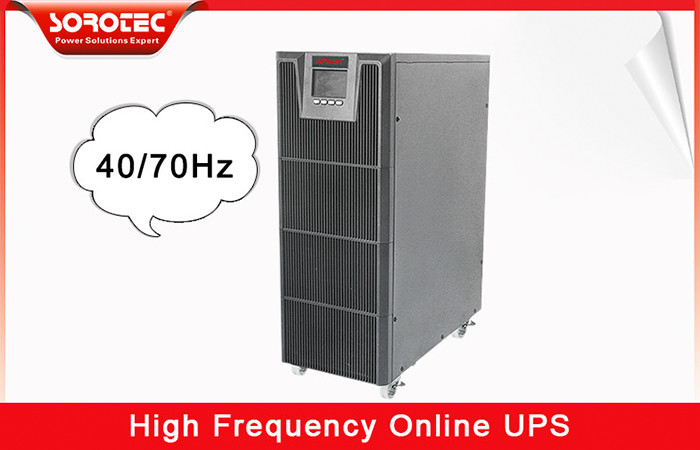

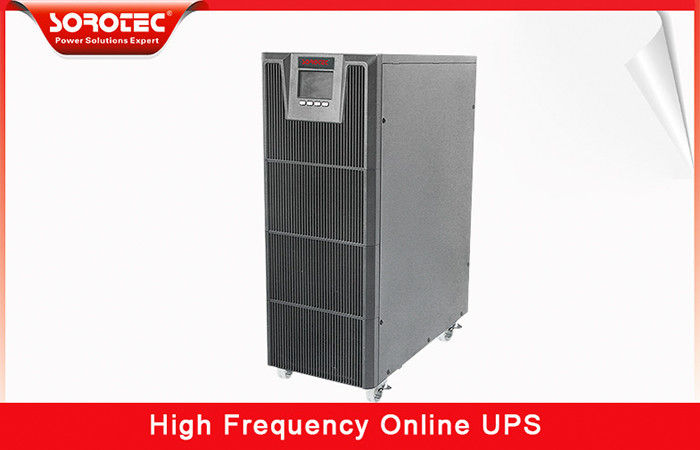

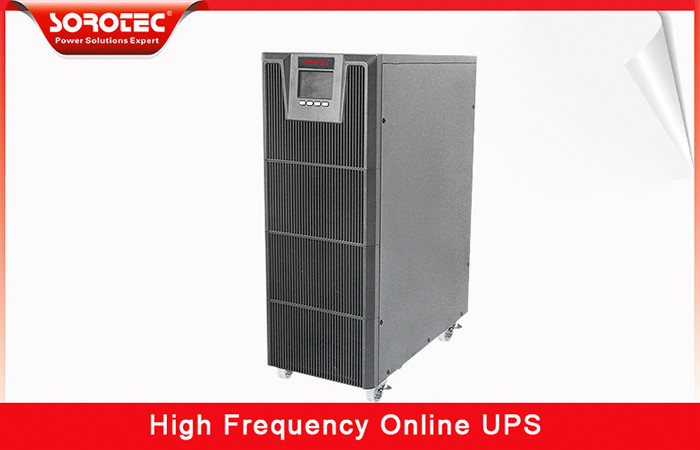

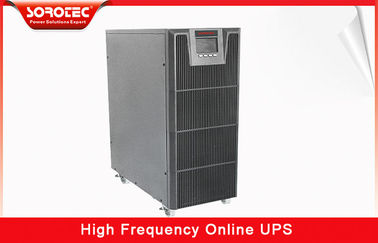

0.9 Power Factor High Frequency Single Phase Online UPS for Data Center

Minimum Order Quantity : 2PCS Price : 1000USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: HP9116C PLUS 1-3KVA

Detail Information

Product Name: High Frequency Online Ups Model: HP9116C PLUS
Capacity: 1-3KVA Phase: Single Phase
Input Voltage: 115-300VAC Output Voltage: 220/230/240VAC
Output Power Factor: 0.9 Frequency: 50/60HZ
Transfer Time: 0ms Current Crest Ratio: 3:1
DC Voltage: 24/38/48/72/96VDC Weight: 14KG
Dimensions(w*d*h): 145*400*220 Application: Data Center /Servers/Medical
Color: Black OEM Produce: Allowed
High Light:

ups uninterruptible power supply

,

high frequency ups

Product Description

0.9 Power Factor High Frequency Single Phase Online UPS for Data Center





Typical application

Data centre, bank station, network , communication equipment, office, automatic equipment,

monitor equipment, control system





Excellent  flexibility & Strong extendable capacity

1.Battery voltage can be choice depend on capacity

2.Convinence to get longer  back up time and lower system invests

3.Convenience to save cost of battery

4.Intelligent battery monitors system and Charge current can be adjust

5.Standant charge current 4A

6.Support more discharge time and more capacity battery for 8A charger Input topology design

7.Support three phase input or single phase input for three phase UPS

8.Super wide input voltage and frequency range suitable for bad power electirc environment

9.Digital control DSP technology and best power component make the system safe and reliable



Friendly design & Advanced parallel technology

1.Stable parallel control technology make sure current sharing to 1%

2.Select trip technology can avoid and isolation system fault then improved system availability

3.Flexible extension capacity and redundance management that can satisfy all kinds of requirements

4.Support maximum 3 units for parallel working Flexible strategy

5.On line mode provides higher system availability

6.High efficiency mode provides more economic operation

7.Frequency conversion provides more stable output





Muilti-function &Higher power factor to take more loads

1.Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.Input power factors up to 0.99

2.Three phase input model support three phase PFC , input THDI<5%

3.Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.

The efficiency up to 94%

4.Efficiency up to 93.5%when take the 30%load

5.ECO mode efficiency up to 98%



Technical Parameters

Model HP9116C PLUS 1-3KVA
1KT 1KT-XL 2KT 2KT-XL 3KT 3KT-XL
Rated Power 1KVA/0.9KW 2KVA/1.8KW 3KVA/2.7KW
Rated Voltage 220/230/240VAC
Rated Frequency 40-70HZ
Input
Voltage Range 115~300VAC
THDi <10%
Power Factor >0.98
Output
Voltage Regulation 220±2%VAC
Frequency Regulation 50/60 Hz±0.05Hz
Power Factor 0.9
Voltage Distortion Linear load<4% Non-linear load<7%
Overload Capability 110%~150% for 47-25 sec;150% ~200% for 25-300ms;>200% for 200m
Current Crest Ratio 3∶1
Transfer Time 0ms (AC mode→Battery mode)
Efficiency(on line mode) >89% >90% >90%
Battery
DC Voltage 24VDC 36VDC 48VDC 72VDC 72VDC 96VDC
Recharge Time 7 hours to 90% of capacity
Recharge Current 1A 6A 1A 6A 1A 6A
Display
LCD Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Communication
Interface Smart RS232, SNMP card (Optional),USB (Optional)
Environment
Operation Temperature 0~40℃
Humidity 20~90% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <45dB <50dB
Physics Characteristic
Dimensions: Wx D x H )mm 145X345X229 192X393X328
