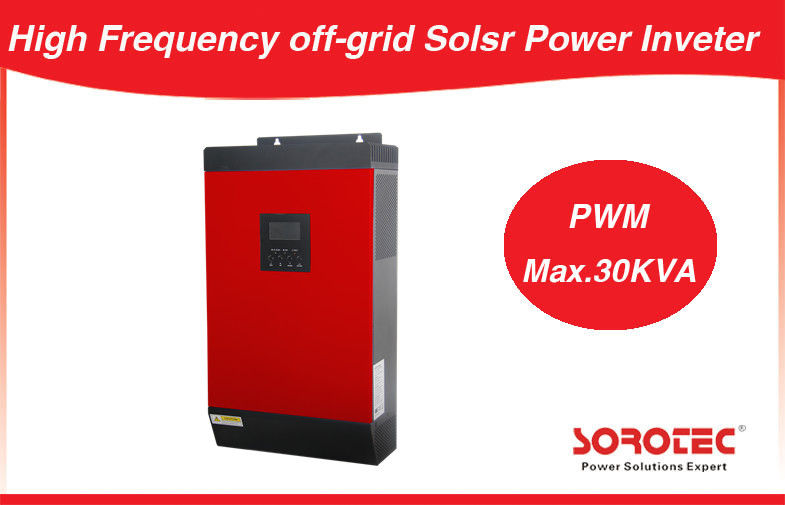

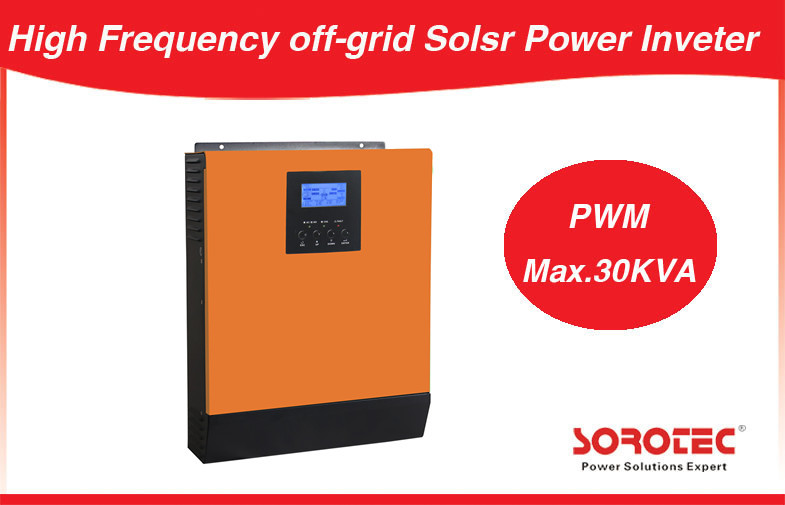

3KVA 2400W 24VDC Long Time Back up MPPT Solar Power Inverter with AC / PV Input Priority

Minimum Order Quantity : 2PCS Price : 100USD
Packaging Details : Standard Exported Cartons and Pallets Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000PCS Per Month
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000 Model Number: SSP3118C1 1-5KVA

Detail Information

Product: Solar Power Inverter For Home Use Capacity: 3000va /2400w
High Frequency Inverter: Without Transformer Built-in Controller: MPPT Or PWM Solar Charge Controller
Input Voltage Range: 90-280vac;170-280vac Wave Form: Pure Sine Wave Inverter
Input Priority: AC/PV/AC&PV Transfer Time: 10 Ms
Battery Voltage: 24VDC
High Light:

solar energy inverter

,

home power inverter

Product Description

3KVA 2400W 24VDC Long Time Back up MPPT Solar Power Inverter with AC / PV Input Priority


Quick Detailes:
Product Name:Wall Mounted High Frequency Solar Power Inverter
Model :SSP3118C1
Capacity:1-5Kva
Power Factor:0.8
Wave Form:Pure Sine Wave
Display:LCD Display
Nominal Voltage:220/2330vac
Nominal Frequency:50/60hz
Suitable Loads:Fridge,Air-conditional,TV,Personal Computer,Fan


Key Features:
1. High Frequency Pure sine wave inverter

2. Cold start function and  Remote panel available

3. Auto restart while AC is recovering

4. Overload and short circuit protection

5. Compatible to mains voltage or generator power

6. Selectable charging current based on applications

7. Configurable AC/Solar input priority via LCD setting

8. Built-in MPPT/PWM (Optional) solar charge controller

9. Smart battery charger design for optimized battery performance

10. Parallel operation with up to 6 units only available for 4KVA/5KVA

11. Selectable input voltage range for home appliances and personal computers

Protection Function:
Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.

Technical Descriptions:


MODELSSP3118C 1K-2425SSP3118C-2K 2425SSP3118C 2K-2460SSP3118C 3K-2425SSP3118C 3K-2460SSP3118C 4K-4880SSP3118C 5K-4880
Rated Power1000VA/800W2000VA/1600W2000VA/1600W3000VA/2400W

3000VA/
2400W

4000VA/
3200W

5000VA/
4000W

INPUT
Voltage230 VAC
Selectable Voltage Range170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)230VAC ± 5%
Surge Power2000VA4000VA6000VA8000VA10000VA
Efficiency (Peak)90% - 93%93%
Transfer Time10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
WaveformPure sine wave
BATTERY
Battery Voltage24 VDC24VDC24 VDC24 VDC24 VDC48 VDC
Floating Charge Voltage27 VDC27 VDC27 VDC27 VDC27 VDC54 VDC
Overcharge Protection31 VDC31 VDC31 VDC31 VDC31 VDC60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power600W600W1500W600W1500W4000W
MPPT Range @ Operating Voltage30VDC ~ 66VDC30VDC ~ 66VDC30VDC ~ 115VDC30VDC ~ 66VDC30VDC ~ 115VDC60VDC ~115VDC
Maximum PV Array Open Circuit Voltage75VDC75VDC145VDC75VDC145VDC145 VDC
Maximum Solar Charge Current25A25A60A25A60A80A
Maximum AC Charge Current20A30A30A30A30A60 A
Maximum Charge Current25A30A60A30A60A140A
AC charger and solar charger can’t work at the same time.
Maximum Efficiency98%
Standby Power Consumption2 W
PHYSICAL
Dimension, D x W x H (mm)100 x 272 x 355120 x 295 x 468
Net Weight (kgs)6.87.07.411
OPERATING ENVIRONMENT
Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0°C - 55°C
Storage Temperature-15°C - 60°C
