SHW48500 Hybrid Solar System MCU Microprocessor Control For Power Plants
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS | Price : | 1000USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS Per Month |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | SHW48500 |
|
Detail Information |
|||
| Product Name: | 48VDC Hybrid Solar Power System | Output Power Factor: | 0.9 |
|---|---|---|---|
| Input Phase: | Single Phase | Wave Form: | 48V DC Power Output |
| Solar Accessories: | Solar Cabinet,Solar Panel .etc | Modular Structure: | MPPT Solar Controller , Rectifier Module |
| Protection: | Overload,overcharge,output Short Circuit | Input Voltage: | 220VAC |
| With Fan: | Yes | Charging Mode: | Selectable |
| Maximum Input Current: | 62A | Application: | Communication Base Station |
| Installation: | Outdoor Installation | Service: | OEM/ODM |
| Sample: | Available | ||
| High Light: | solar system for telecom tower,telecom battery backup systems |
||
Product Description
50A Solar 48V DC Power Supply with Flexible MPPT Solar Charge Controller
Quick Detailes:
| Product Name | 48VDC Solar Power System |
| Model | SHW48500 |
| Nominal Voltage | 48VDC |
| Frequency Range | 45-65hz |
| Voltage Range | 42-58V |
| Solar Charge Controller | 50A (1-6PCS Selectable) |
| Rectifier Module | 48VDC 50A (1-4PCS Selectable) |
| Maximum PV Array Power | 3000W |
| Maximum Efficiency | 98% |
| Application |
Telecom,Traffic Lights,Mountains,Powere Plant,Substation Power.etc |
(OEM/ODM produce available,welcom contact us by :sales@soroups.com or whatsapp:+8613682556888)
Key Features:
1.Adopt advanced MCU microprocessor control technology
2.Advanced MPPT Technology.High converting efficiency higher than 97% for
minimizing energy loss.
3.Reversed current protection at night.over voltage and reverse polarity protection
4.Capable of selection different charging mode fo various types of batteries
5.Protection degree:IP55
6.Industy-leading power density compact size and high reliability
7.Doorframe designed with waterproof structure, posted on the seal and equipped
with wateerproof lock in the door double insulation design
8.Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material,
surfce coating anti-UV power
9.Suitable for outdoor installation
10.With remote monitoring system operation
Special Dust-proof, Water-proof Features:
According to the overall standard of design dust-proof and water-proof IP55
■With sun protection, heat insulation, roof ventilation
■With waterproof and the filtration dust inlet, the cabinet front door shutters
Technical Specifications of SHW48500 Solar DC Power System:
| SHW48500 Solar System | Rectifier Module(1-10) MPPT Solar Charge Controller(1-10) |
| INPUT | |
| MPPT Range @Operating Voltage | 60 ~150VDC |
| Maximum PV Array Power | 3000W |
| Maximum Input Current | 62A |
| OUTPUT | |
| Nominal Battery Voltage | 42-58VDC |
| Maximum Charge Current | 50A(max:61A) |
| Maximum Efficiency | 98% |
| Charging Method | Three stages: bulk, absorption and floating |
| PROTECTION | |
| Overload Protection | > 110% : audible alarm |
| Overcharge Protection | Yes |
| Polarity Reversal Protection @Solar Cell & Battery | Yes |
| INDICATORS | |
| LCD Panel | LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions |
| LED Display | Three indicators for solar, charging, and load status |
| Rectifier Module | |
| Rated input voltage | 220V |
| AC input Voltage range AC | 90-290V |
| input Frequency range | 45-65HZ |
| Power factor | ≥0.99 |
| Efficiency | >92% |
| Rated output voltage | 48V |
| Rated output current | 0-50A |
| Voltage range | 42-58V |
| WIND CONTROLLER: | |
| Input Power | 1KW/2KW |
| Input Voltage | 150-300VAC |
| Output Voltage | 48VDC |
| Ouput Current | 30A/50A |
| ENVIRONMENT | |
| Humidity | 0 ~ 100% RH (No condensing) |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 75°C |
| Altitude | 0 ~ 3000 m |

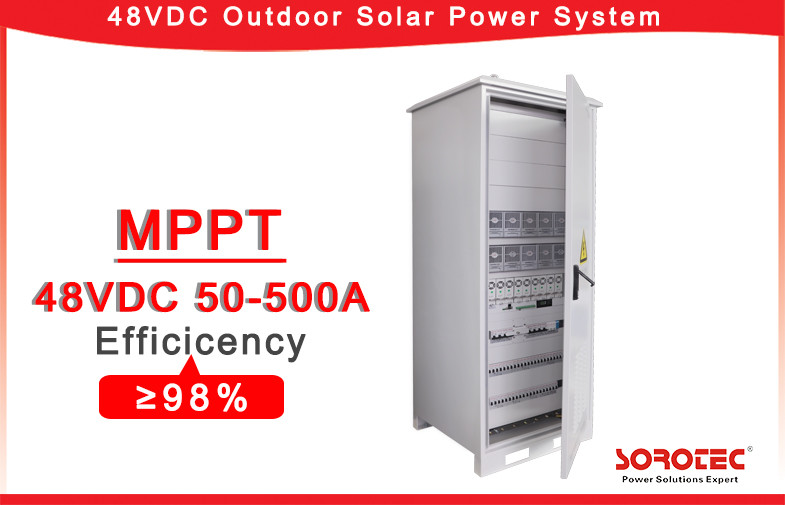

SHW48500 Solar DC Power System Picture:
