1 kva 1000w solar on grid inverter , efficiency solar panel inverter for Personal Computer

China 1 kva 1000w solar on grid inverter , efficiency solar panel inverter for Personal Computer supplier

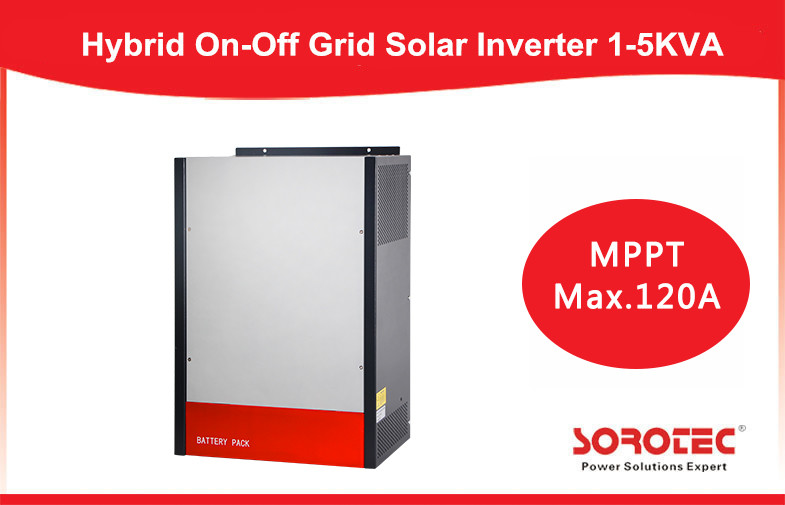

Large Image :  1 kva 1000w solar on grid inverter , efficiency solar panel inverter for Personal Computer

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000
Model Number: SSP3119C 1000-5000VA

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: 200-1000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000PCS Per Month
Contact Now
Detailed Product Description
Product: On-Off Grid Solar Inverter Power: 1kva /1000w
DC Voltage: 48vdc Input Voltage: 90-280VAC ,170-280VAC
Output Voltage: 220/230/240VAC Solar Controller: 80Amp MPPT
Priority For PV,Battery Or Grid: Yes Feedback To The Grid: Available
Mainly Application: Personal Computer Color: White,green


1 kva 1000w solar on grid inverter , efficiency solar panel inverter for Personal Computer


Product Snapshot:

ON  Grid  And Off Grid Solar Inverter,3KVA,4KVA,5KVA  with Parallel Function;

Balanced Power Can be Feedback to the Grid,Built-in Max.120Amp MPPT Solar Controller;

On-Grid Inverter with Energy Storage function ,0.9 Power Factor Pure Sine Wave Output;

Multiple Charging and Output Priority Modes,Charging Time Can be Setted depend on your requirements.



Key Features:
1.Pure sine wave output
2.Self-consumption and Feed-in to the grid
3.Programmable supply priority for PV, Battery or Grid
4.User-adjustable charging current and voltage
5.Monitoring software for real-time status display and control
6.Parallel operation up to 6 units only for 3K/4K/5K models
7.Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup



SSP3119C On and Off Grid Hybrid Solar Power Inverter technical specifications:


MODEL 3K-48 4K-48 5K-48
Max.PV Array Power 4000W 4000W 6000W
Rated Output Power 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 2
GRID-TIE  OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 13A 17A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID    INPUT
Accepatable Input Voltage Range 90-280VAC    or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 180A
INTERFACE
Parallel Function Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃

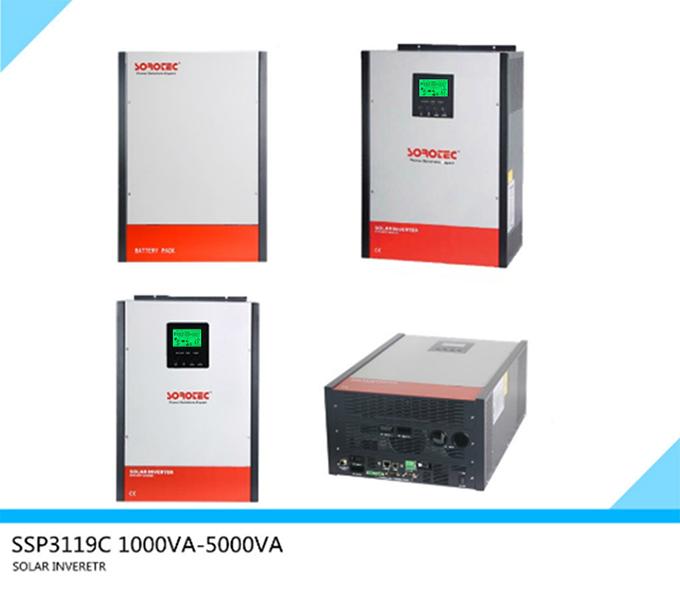

Product Picture Show:
1 kva 1000w solar on grid inverter , efficiency solar panel inverter for Personal Computer
Protection:
Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.

Application:
Provide long time backup ac power supply for the household appliances ,office appliances and solar power system.etc
1 kva 1000w solar on grid inverter , efficiency solar panel inverter for Personal Computer
