Detail Information
Product:	On Off Grid Hybrid Solar Inverter System	Capacity:	1kva-5kva
Solar Charge Controller:	MPPT	Input Voltage:	90-280VACor 170-280VAC
Output Voltage:	220/230/240VAC	Frequency:	50/60HZ
Output Waveform:	Pure Sine Wave	Input Phase:	Single Phase
Parallel Working:	3KVA/4KVA/5KVA	Application:	Solar Power Panel
High Light:	grid hybrid solar power inverter , mppt solar inverter

Product Description

Single Phase 1kva - 5kva power inverter for solar panels , pure sine inverter

Key Features:

Energy Storage with Battery Pack
High Frequency Pure Sine Wave Inverters
Built-in MPPT Solar Charge Controller
Power Supply Priority for PV/Battery/Grid
For Self-consumption and Feed-back to the grid
Users-Adjustable Charging current and voltage
Parallel operation up to 6 units only for 3KVA-5KVA
Discharging and Charging Time can Be selected as customer needs
Multiple operation modes:Grid-tie,off-grid and grid-tie with backup

Protection Function:

Low battery voltage/Over load/Output short circuit /Over- temperature,

Restrain surge interference/Eliminate noise/Protection for thunder striking,

provide the reliable power to the home appliances.

Typical Application:

Supply the reliable long back up time power for the TV,Computer,DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners,Cameras and photographic equipment etc

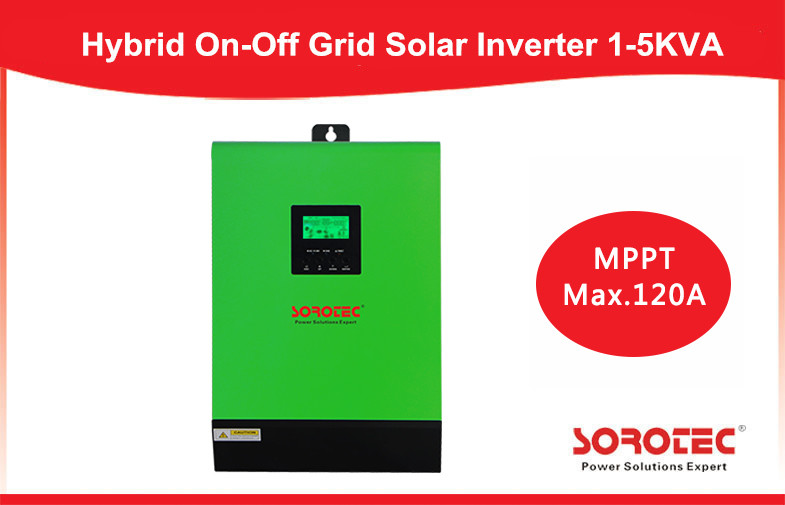

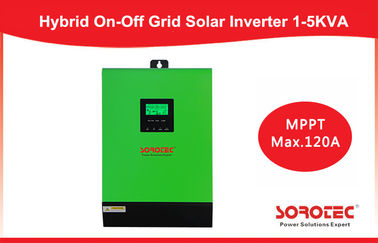

SSP3119C On-Off Grid Hybrid Solar Power Inverter technical specifications:

MODEL	1K-12	2K-24	3K-48	4K-48	5K-48
Max.PV Array Power	1000W	2000W	4000W	4000W	6000W
Rated Output Power	1000W	2000W	3000W	4000W	5000W
Maximum PV Array Open Circuit Voltage	145VDC	145VDC	145VDC	145VDC	145VDC
MPPT Range @ Operating Voltage	15~115VDC	30~115VDC	60~115VDC	60~115VDC	60~115VDC
MPPT Tracker Number	1	1	1	1	2
GRID-TIE OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	184-264.5VAC
Nominal Output Current	4.3A	8.7A	13A	17.4A	21.7A
Power Factor	>0.99
Efficiency
Maximum Conversion Efficiency (DC/AC)	90%
GRID INPUT
Accepatable Input Voltage Range	90-280VAC or 170-280VAC
Frequency Range	50HZ/60HZ(Auto sensing)
Maximum AC Input Current	30A		40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure Sine Wave
Efficiency(DC to AC)	93%
BATTERY&CHARGER
Nominal DC Voltage	12VDC	24VDC	48VDC	48VDC	48VDC
Maximum Solar Charge Current	80A	80A	80A	80A	120A
Maximum AC Charge Current	60A
Maximum Charge Current	140A	140A	140A	140A	180A
INTERFACE
Parallel Function	N/A	N/A	Yes	Yes	Yes
Communication	USB or RS232/Dry-Contact
ENVIRONMENT
Humidity	0~90%RH (No condensing)
Operating Temperature	0 to 50℃

Single Phase 1kva - 5kva Hybrid Solar Inverter for solar panels , pure sine inverter 0

Tag:

hybrid pv inverter

mppt solar inverter

grid hybrid solar power inverter

Shenzhen SORO Electronics Co., Ltd.

Online UPS, Inverter/Solar Inverter, Solar Power System

Solar Charge Controller, Telecom Power Solution, EV Charger

Product Details:
Place of Origin:	China
Brand Name:	SOROTEC
Certification:	CE,ROHS,RSO9000
Model Number:	SSP3119C 1000-5000VA
Payment & Shipping Terms:
Minimum Order Quantity:	1PCS
Price:	100-1000
Packaging Details:	Standard Exported Cartons and Pallets
Delivery Time:	Within 15-30days after receiving your 30% TT deposit
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000PCS Per Month
