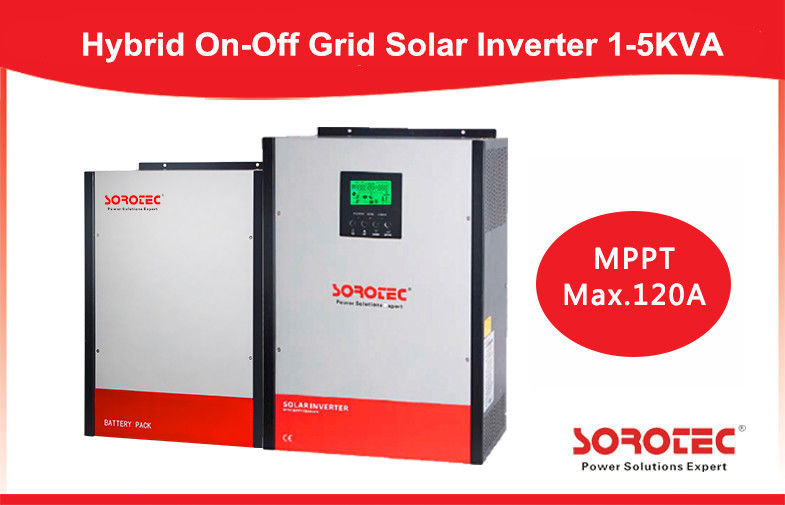

On / off Grid Hybrid Solar Inverter , 2kva MPPT most efficient power inverter 24v

Good quality High Frequency Online UPS for sales
Good quality High Frequency Online UPS for sales
As an exclusive agent UPS distributor of SORO, We enjoyed wonderful business cooperation with them. Let's grow fast together!

—— Dennis Spalding --from LAX, USA

Perfect UPS, Perfect software(SNMP card), Perfect service, that is SORO UPS!!!

—— Antonie Williams --from Dubai

April, 2015, I visited Sorotec factories, I was pleasantly suprised by their design and artwork to ensure quality!!

—— Anuoluwapo Omobolaji Ayokunle

I'm Online Chat Now

On / off Grid Hybrid Solar Inverter , 2kva MPPT most efficient power inverter 24v

China On / off Grid Hybrid Solar Inverter , 2kva MPPT most efficient power inverter 24v supplier

Large Image :  On / off Grid Hybrid Solar Inverter , 2kva MPPT most efficient power inverter 24v

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000
Model Number: SSP3119C 1000-5000VA

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 100-1000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000PCS Per Month
Contact Now
Detailed Product Description
Product Name: On Grid Off Grid Hybrid Solar Inverter Power: 2KVA
Solar Charge Controller: 24V MPPT Nominal Voltage: 220/230/240VAC
Output Waveform: Pure Sine Wave Priority: PV/Battery/Grid
Application: Home And Office Equipment Rated Output Power: 2000W
Power Factor: >0.99



On / off Grid Hybrid Solar Inverter , 2kva MPPT most efficient power inverter 24v



Applications:

Supply the reliable long back up time power for the TV,Computer,DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners,Cameras and photographic equipment etc





Key Features:



1.Pure sine wave output
2.Self-consumption and Feed-in to the grid
3.Programmable supply priority for PV, Battery or Grid
4.User-adjustable charging current and voltage
5.Monitoring software for real-time status display and control
6.Parallel operation up to 6 units only for 3K/4K/5K models
7.Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup​



Protection- Functions:

Low battery voltage/Over load/Output short circuit /Over- temperature,

Restrain surge interference/Eliminate noise/Protection for thunder striking,

provide the reliable power to the home appliances.





SSP3119C On-Off Grid Hybrid Solar Power Inverter technical specifications:



MODEL 3K-48 4K-48 5K-48
Max.PV Array Power 4000W 4000W 6000W
Rated Output Power 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 2
GRID-TIE  OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 13A 17A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID    INPUT
Accepatable Input Voltage Range 90-280VAC    or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 180A
INTERFACE
Parallel Function Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃





On / off Grid Hybrid Solar Inverter , 2kva MPPT most efficient power inverter 24vOn / off Grid Hybrid Solar Inverter , 2kva MPPT most efficient power inverter 24v
