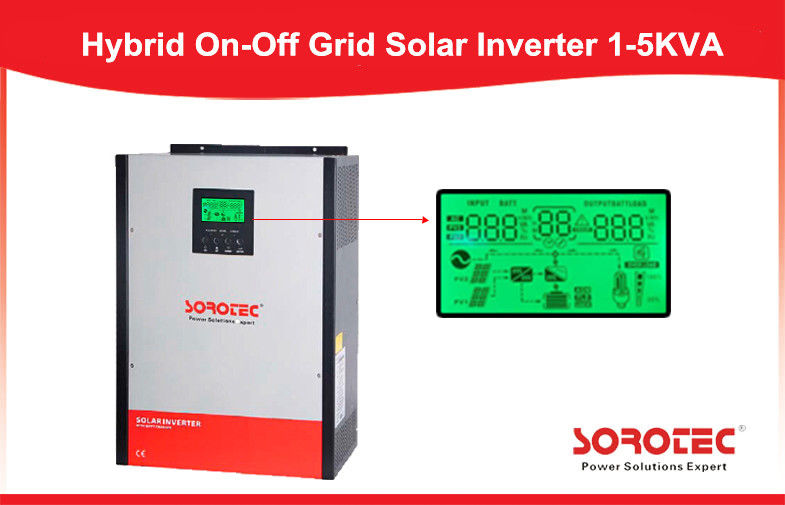

On / Off Grid Hybrid Solar Inverter , 5kva 24v inverters for solar power

China On / Off Grid Hybrid Solar Inverter , 5kva 24v inverters for solar power supplier

Large Image :  On / Off Grid Hybrid Solar Inverter , 5kva 24v inverters for solar power

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000
Model Number: SSP3119C 1000-5000VA

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 100-1000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000PCS Per Month
Contact Now
Detailed Product Description
Type: Hybrid On-Off Grid Hybrid Solar Power Inverter Capacity: 5KVA/6000W
Solar Charge Controller: 48V MPPT Nominal Voltage: 220/230/240VAC
Priority: PV/Battery/Grid Application: Air Conditional
Parallel Working: Yes Maximum Charging Current: 180Amp
Frequency Range: 50/60HZ MPPT Tracker Number: 2



On / off Grid Hybrid Solar Power Inverters , 5kva 24v inverters for solar power





SOROTEC SSP3119C is a hybrid on-off solar power inverter provide long time backup ac power supply  for self-consumption and extra power can be used to feedback to the local grid .it built-in mppt solar charge controller and we also suppy pv panel and battery pack solutions. 3-5kva with parallel function .



Key Features:



1.Pure sine wave output

2.Self-consumption and Feed-in to the grid

3.Programmable supply priority for PV, Battery or Grid

4.User-adjustable charging current and voltage

5.Monitoring software for real-time status display and control

6.Parallel operation up to 6 units only for 3K/4K/5K models

7.Programmable multiple operation modes: Grid-tie,off-grid and grid-tie with backup







SSP3119C On-Off Grid Hybrid Solar Power Inverter technical specifications:

MODEL 3K-48 4K-48 5K-48
Max.PV Array Power 4000W 4000W 6000W
Rated Output Power 3000W 4000W 5000W
Maximum PV Array Open Circuit Voltage 145VDC 145VDC 145VDC
MPPT Range @ Operating Voltage 60~115VDC 60~115VDC 60~115VDC
MPPT Tracker Number 1 1 2
GRID-TIE  OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 184-264.5VAC
Nominal Output Current 13A 17A 21.7A
Power Factor >0.99
Efficiency
Maximum Conversion Efficiency (DC/AC) 90%
GRID    INPUT
Accepatable Input Voltage Range 90-280VAC    or 170-280VAC
Frequency Range 50HZ/60HZ(Auto sensing)
Maximum AC Input Current 40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency(DC to AC) 93%
BATTERY&CHARGER
Nominal DC Voltage 48VDC 48VDC 48VDC
Maximum Solar Charge Current 80A 80A 120A
Maximum AC Charge Current 60A
Maximum Charge Current 140A 140A 180A
INTERFACE
Parallel Function Yes Yes Yes
Communication USB or RS232/Dry-Contact
ENVIRONMENT
Humidity 0~90%RH (No condensing)
Operating Temperature 0 to 50℃





Applications:

Provide the reliable long backup time power supply for the TV,Computer,DVD,VCD, Printing machines,Data center, Financial and Securities, Large Data rooms,Power tools, lawn mowers, vacuum cleaners,Cameras ,photographic equipment ands so on home and office equipments.



Protection- Functions:

Low battery voltage/Over load/Output short circuit /Over- temperature,

Restrain surge interference/Eliminate noise/Protection for thunder striking,

provide the reliable power to the home appliances.
