Advanced MPPT AC to DC 48v 50a power supply High Converting Efficiency,With remote monitoring system operation

Good quality High Frequency Online UPS for sales
Good quality High Frequency Online UPS for sales
As an exclusive agent UPS distributor of SORO, We enjoyed wonderful business cooperation with them. Let's grow fast together!

—— Dennis Spalding --from LAX, USA

Perfect UPS, Perfect software(SNMP card), Perfect service, that is SORO UPS!!!

—— Antonie Williams --from Dubai

April, 2015, I visited Sorotec factories, I was pleasantly suprised by their design and artwork to ensure quality!!

—— Anuoluwapo Omobolaji Ayokunle

I'm Online Chat Now

Advanced MPPT AC to DC 48v 50a power supply High Converting Efficiency,With remote monitoring system operation

China Advanced MPPT AC to DC 48v 50a power supply High Converting Efficiency,With remote monitoring system operation supplier

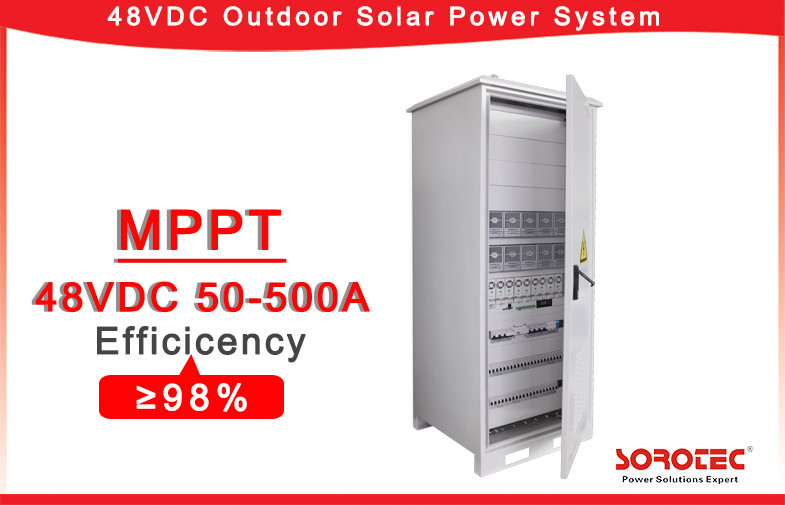

Large Image :  Advanced MPPT AC to DC 48v 50a power supply High Converting Efficiency,With remote monitoring system operation

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000
Model Number: SHW48500 Solar DC Power System

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS 48VDC Solar Power System
Price: 500~1000USD
Packaging Details: Standard Exported Cartons and Pallets for Solar DC Power System
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000PCS Solar DC Power System Per Month
Contact Now
Detailed Product Description
Model: Hybrid Solar DC Power System Application: Telecom Base Station
Power Supply: 48VDC Power Supply Off-Grid Solar System: Yes
Maximum Input Current: 62A Modular Structure: MPPT Modular And DC Power Modular
Altitude: 0~3000M Humiduty: 0~100%RH

Advanced MPPT Technology,High Converting Efficiency Solar DC Power System



MODEL SHW48500 Series Solar DC Power System
Nominal Voltage 48VDC
Power Convertion AC to DC Solar Power System
Module Structure MPPT Solar Charge Controller,DC Power Module
Input Voltage 220VAC
Output Current 50-500A
Accessories Solar Cabinet,Solar Panel.etc
Application Telecom base station.Telecom tower,Traffic lights,Solar Power Plants .etc







Key Features



1.Adopt advanced MCU microprocessor control technology
2.Advanced MPPT Technology.High converting efficiency higher than 97% for
   minimizing energy loss.
3.Reversed current protection at night.over voltage and reverse polarity protection
4.Capable of selection different charging mode fo various types of batteries
5.Protection degree:IP55
6.Industy-leading power density compact size and high reliability
7.Doorframe designed with waterproof structure, posted on the seal and equipped

   ith wateerproof lock in the door double insulation design
8.Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material,

   surfce coating anti-UV power
9.Suitable for outdoor installation
10.With remote monitoring system operation





Fine Dustproof , waterproof Structure

According to the overall standard of design dust-proof and water-proof IP55

1. with sun protection, heat insulation, roof ventilation

2..with waterproof and the filtration dust inlet, the cabinet front door shutters.withwaterproof design





Remote Monitoring System InterfaceAdvanced MPPT AC to DC 48v 50a power supply High Converting Efficiency,With remote monitoring system operation



Application:

It can provide reliable DC power supply in the case of a power failure completely in plant or substation . The traditional DC systems connect battery pack and run with float charging mode .The new DC system run with silicon controlled rectifying power supply for battery.Power plant or substation power for controlling, protection and automatic device,Emergency lighting, Communications ,steam turbine DC oil pump and so on .

Advanced MPPT AC to DC 48v 50a power supply High Converting Efficiency,With remote monitoring system operation



Technical Parameter:

SHW48500 Solar System Rectifier Module(1-10) MPPT Solar Charge Controller(1-10)
INPUT
MPPT Range @Operating Voltage 60 ~150VDC
Maximum PV Array Power 3000W
Maximum Input Current 62A
OUTPUT
Nominal Battery Voltage 42-58VDC
​Maximum Charge Current 50A(max:61A)
Maximum Efficiency 98%
Charging Method Three stages: bulk, absorption and floating
PROTECTION
Overload Protection > 110% : audible alarm
Overcharge Protection Yes
Polarity Reversal Protection @Solar Cell & Battery Yes
INDICATORS
LCD Panel LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions
LED Display Three indicators for solar, charging, and load status
Rectifier Module
Rated input voltage 220V
AC input Voltage range AC 90-290V
input Frequency range 45-65HZ
Power factor ≥0.99
Efficiency >92%
Rated output voltage 48V
Rated output current 0-50A
Voltage range 42-58V
WIND CONTROLLER:
Input Power 1KW/2KW
Input Voltage 150-300VAC
Output Voltage 48VDC
Ouput Current 30A/50A
ENVIRONMENT
Humidity 0 ~ 100% RH (No condensing)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 75°C
Altitude 0 ~ 3000 m

Advanced MPPT AC to DC 48v 50a power supply High Converting Efficiency,With remote monitoring system operation
