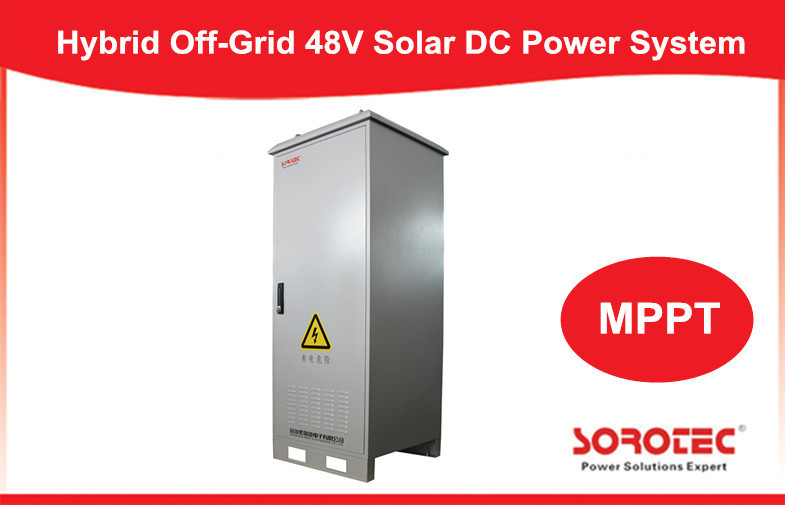

SHW48500 Hybrid Solar System MCU Microprocessor Control For Power Plants
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS 48V DC Power Supply | Price : | 1000USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for 48V DC Solar Power Supply | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS Per Month for 48V DC Solar Power Supply |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | SHW48500 Solar DC Power |
|
Detail Information |
|||
| Product Name: | OFF-GRID 48VDC Solar Energy System | Battery Voltage: | 48VDC |
|---|---|---|---|
| Display: | LCD&LED | Protection: | Over Voltage |
| Installation: | Outdoor | Altitude: | 0~3000m |
| Charging Current: | 50A | AC Voltage: | 220VAC |
| Application: | Communication Base Station | ||
| High Light: | telecom dc power systems,solar system for telecom tower |
||
Product Description
Solar Energy System high voltage dc power supply for Outdoor Communication Base Station
Application:
Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC systems.
Key Features:
Remote Monitoring System Interface
Technical Specifications of SHW48500 Solar DC Power System:
| SHW48500 Solar System | Rectifier Module (1-10pcs) MPPT Solar Charge Controller (1-10pcs) |
| MPPT Solar Charge Controller | |
| INPUT | |
| MPPT Range @Operating Voltage | 60 ~115VDC |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum PV Array Power | 3000W |
| Maximum Input Current | 50A |
| OUTPUT | |
| Nominal Battery Voltage | 42-58VDC |
| Maximum Charge Current | 50A |
| Maximum Efficiency | 98% |
| Charging Method | Three stages: bulk, absorption and floating |
| PROTECTION | |
| Overload Protection | > 110% : audible alarm |
| Overcharge Protection | Yes |
| Polarity Reversal Protection @Solar Cell & Battery | Yes |
| INDICATORS | |
| LCD Panel | LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions |
| LED Display | Three indicators for solar, charging, and load status |
| Rectifier Module | |
| Rated input voltage | 220V |
| AC input Voltage range AC | 90-290V |
| input Frequency range | 45-65HZ |
| Power factor | ≥0.99 |
| Efficiency | >92% |
| Rated output voltage | 48V |
| Rated output current | 0-50A |
| Voltage range | 42-58V |
| ENVIRONMENT | |
| Humidity | 0 ~ 100% RH (No condensing) |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 75°C |
| Altitude | 0 ~ 3000 m |
Dust-proof, Water-proof Features:
According to the overall standard of design dust-proof and water-proof Ip55
