SHW48500 Hybrid Solar System MCU Microprocessor Control For Power Plants
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS 48V DC Power Supply | Price : | 1000USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for 48V DC Solar Power Supply | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 5000PCS Per Month for 48V DC Solar Power Supply |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,RSO9000 | Model Number: | SHW48500 Solar DC Power |
|
Detail Information |
|||
| Features: | Waterproof | Product Name: | Hybrid 48VDC Solar Power System |
|---|---|---|---|
| Solar System: | AC To DC | Display: | LCD&LED |
| Charging Current: | 50A(max:61A) | AC Voltage: | 220VAC |
| Application: | Emergency Lighting | ||
| High Light: | solar system for telecom tower,telecom battery backup systems |
||
Product Description

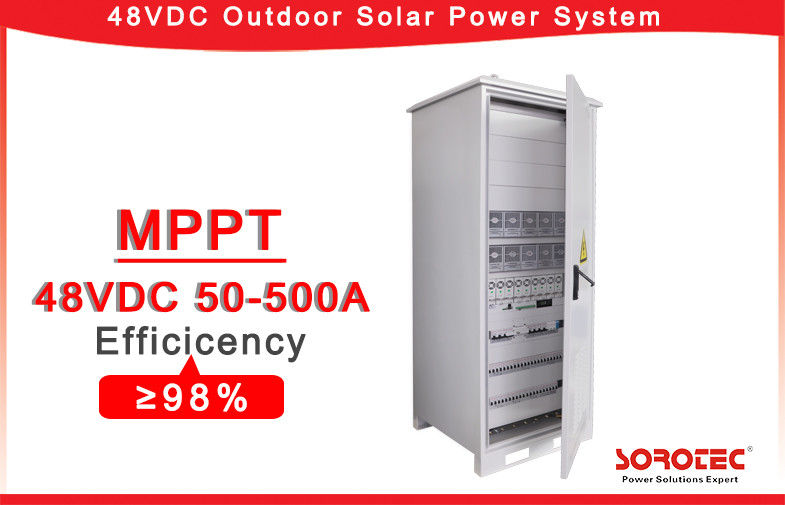

Hybrid Off Grid Solar Power System 48V DC Power Supply for Emergency Lighting
| Product Name | Hybrid Off-Grid 48VDC Solar Power System |
| Input Voltage | 220VAC |
| Voltage Range | 42-58V |
| Max PV Array Power | 3000W |
| Application | Outdoor Telecom Base Station |
SHW48500 Series Off-Grid 48VDC Solar Power System Special for Power Plant or Substation Power for Controlling,Protection and Automatic Device,Emergency Lighting,Telecom Communications,Steam Turbine ,dc Oil Pump and so on Independent DC Powe Systems.
Product Features:
Remote Monitoring System Interface
Dust-proof, Water-proof Features:
According to the overall standard of design dust-proof and water-proof IP55. with sun protection, heat insulation, roof ventilation .waterproof and the filtration dust inlet, the cabinet front door shutters
SHW48500 Solar DC Power System Specifications
| SHW48500 Solar System | Rectifier Module(1-10) MPPT Solar Charge Controller(1-10) |
| INPUT | |
| MPPT Range @Operating Voltage | 60 ~150VDC |
| Maximum PV Array Power | 3000W |
| Maximum Input Current | 62A |
| OUTPUT | |
| Nominal Battery Voltage | 42-58VDC |
| Maximum Charge Current | 50A(max:61A) |
| Maximum Efficiency | 98% |
| Charging Method | Three stages: bulk, absorption and floating |
| PROTECTION | |
| Overload Protection | > 110% : audible alarm |
| Overcharge Protection | Yes |
| Polarity Reversal Protection @Solar Cell & Battery | Yes |
| INDICATORS | |
| LCD Panel | LCD panel indicating solar power, load level, battery voltage/capacity, charging current, and fault conditions |
| LED Display | Three indicators for solar, charging, and load status |
| Rectifier Module | |
| Rated input voltage | 220V |
| AC input Voltage range AC | 90-290V |
| input Frequency range | 45-65HZ |
| Power factor | ≥0.99 |
| Efficiency | >92% |
| Rated output voltage | 48V |
| Rated output current | 0-50A |
| Voltage range | 42-58V |
| WIND CONTROLLER: | |
| Input Power | 1KW/2KW |
| Input Voltage | 150-300VAC |
| Output Voltage | 48VDC |
| Ouput Current | 30A/50A |
| ENVIRONMENT | |
| Humidity | 0 ~ 100% RH (No condensing) |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 75°C |
| Altitude | 0 ~ 3000 m |
