2KVA/1.8KW On Line UPS Support Maximum 3 Units for Parallel Working

China 2KVA/1.8KW On Line UPS Support Maximum 3 Units for Parallel Working supplier
2KVA/1.8KW On Line UPS Support Maximum 3 Units for Parallel Working supplier 2KVA/1.8KW On Line UPS Support Maximum 3 Units for Parallel Working supplier

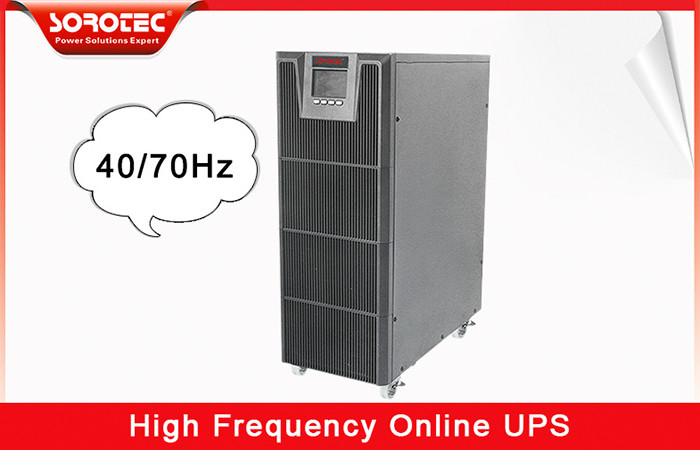

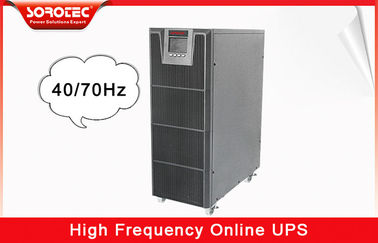

Large Image :  2KVA/1.8KW On Line UPS Support Maximum 3 Units for Parallel Working

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: HP9116C PLUS

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS Online UPS
Price: 1000-10000 USD
Packaging Details: Standard Exported Cartons and Pallets for Low Frequency Online UPS
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping,
Supply Ability: 3000PCS/Month for Low Frequency Online UPS
Contact Now
Detailed Product Description
Product Name: High Frequency Online Ups UPS Power: 1-20kva
Frequency Range: 40~70HZ Parallel Working: Max.3units
Wave Form: Pure Sine Wave Nominal Voltage: 220/230/240/380VAC
Output Power Factor: 0.9

2KVA/1.8KW On Line UPS Support Maximum 3 Units for Parallel Working



Typical application

Data centre, bank station, network , communication equipment, office, automatic equipment, monitor equipment, control system

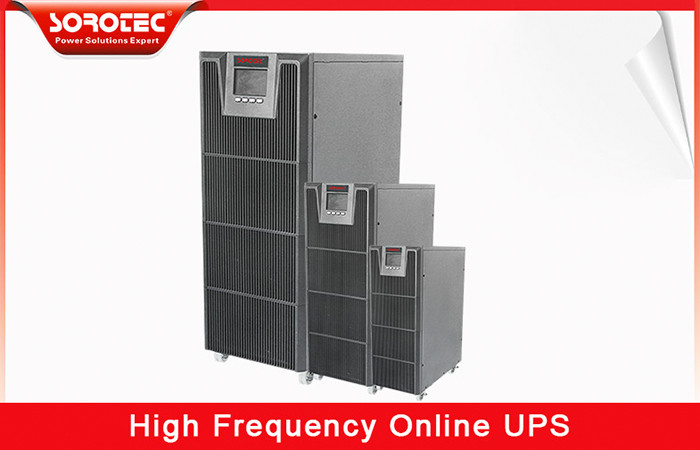

Model HP9116C/HP9316 Plus 1-20k series
Type
Phase 1 Ph in/1Ph out & 3Ph in/3 Ph out
Capacity 1-20KVA
Output Power Factor 0.9
Nominal Voltage 220/230/240/380VDC
Nominal Frequency 40-70HZ
Parallel Working Maximum 3 units
Battery Voltage 24VDC/36VDC/48VDC/72VDC/96VDC
Transfer Time 0ms



Highly flexible and extendable

Battery can choose

1. Battery voltage can be choice depend on capacity , can satisfy different requirement.

2. Convenience to get more back up time and lower system invests

3. Convenience to save cost of battery

4. Intelligent battery monitors Charge current can be adjust

5. Standant charge current 4A

6. Support more discharge time and more capacity battery for 8A charger

Input topology design

7. Support three phase input or single phase input for three phase UPS

8. Super wide input voltage and frequency range suitable for bad power electirc environment

9. Digital control DSP technology and best power component make the system safe and reliable



Multifunction friendly design

Advanced parallel technology

1. Stable parallel control technology make sure current sharing to 1%

2. Select trip technology can avoid and isolation system fault then improved system availability

3. Flexible extension capacity and redundance management that can satisfy all kinds of requirements

4. Support maximum 3 units for parallel working

Flexible strategy

5. On line mode provides higher system availability

6. High efficiency mode provides more economic operation

7. Frequency conversion provides more stable output



Higher function

Output power factor up to 0.9

1. Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability. Input power factors up to 0.99

2. Three phase input model support three phase PFC , input THDI<5%

3. Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.

The efficiency up to 94%

4. Efficiency up to 93.5%when take the 30%load

5. ECO mode efficiency up to 98%



Model HP9116C PLUS 1-3KVA
1KT 1KT-XL 2KT 2KT-XL 3KT 3KT-XL
Rated Power 1KVA/0.9KW 2KVA/1.8KW 3KVA/2.7KW
Rated Voltage 220/230/240VAC
Rated Frequency 40-70HZ
Input
Voltage Range 115~300VAC
THDi <10%
Power Factor >0.98
Output
Voltage Regulation 220±2%VAC
Frequency Regulation 50/60 Hz±0.05Hz
Power Factor 0.9
Voltage Distortion Linear load<4% Non-linear load<7%
Overload Capability 110%~150% for 47-25 sec;150% ~200% for 25-300ms;>200% for 200m
Current Crest Ratio 3∶1
Transfer Time 0ms (AC mode→Battery mode)
Efficiency(on line mode) >89% >90% >90%
Battery
DC Voltage 24VDC 36VDC 48VDC 72VDC 72VDC 96VDC
Recharge Time 7 hours to 90% of capacity
Recharge Current 1A 6A 1A 6A 1A 6A
Display
LCD Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Communication
Interface Smart RS232, SNMP card (Optional),USB (Optional)
Environment
Operation Temperature 0~40℃
Humidity 20~90% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <45dB <50dB
Physics Characteristic
Dimensions: Wx D x H )mm 145X345X229 192X393X328



2KVA/1.8KW On Line UPS Support Maximum 3 Units for Parallel Working
