3 Phase 20KVA / 14KW, 15KVA /10.5KW True online double conversion High Frequency UPS
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 2PCS High Frequency Online UPS | Price : | 1-1000USD |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for High Frequency Online UPS | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 3000PCS/Month for High Frequecy Online UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | HP9116C Plus 1-3KVA Online UPS |
|
Detail Information |
|||
| Product Name: | High Frequency Online UPS | UPS Power: | 1KVA-3KVA |
|---|---|---|---|
| Power Factor: | 0.9 | Input Voltage: | 115-300VAC |
| Input Phase: | Single Phase | Battery Voltahe: | Optional |
| Frequency Convertion: | 50/60hz | Efficiency: | 98%(in ECO Mode) |
| Application: | Medical | ||
| High Light: | ups uninterruptible power supply,pure sine wave ups |
||
Product Description
PF0.9 High Frequency Online UPS , Long Time Backup uninteruptible power supply for Medical
| Product name | High Frequency Online UPS(uninterrupted power supply) |
| Model | HP9116C PLUS 1-3Kva |
| Power Factor | 0.9 |
| Transfer Time | 0ms |
| Input Voltage | 115-300VAC |
| Waveform | Pure Sine Wave |
| Frequency Range | 40-70HZ |
| Application | Medical,personal computer,telecom.etc |
| Service | Sample service and OEM/ODM produce available |
Output power factor up to 0.9,The efficiency up to 94%,Input power factor up to 0.99
Can take more load, if you take same load that can get higher reliability.Three phase input model support three phase PFC , input THDI<5%.Efficiency up to 93.5%when take the 30%load,ECO mode efficiency up to 98%.Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
Advanced parallel control technology and flexible strategy
Support maximum 3 units for parallel working,On line mode provides higher system availability.
High efficiency mode for economical to use,Frequency conversion provides more stable output .
Flexible extension capacity and redundance management,Select trip technology can avoid and isolation system fault.
Battery voltage can choose depend on capacity
Get more back up time and lower system invests,Convenience to save cost of battery,Intelligent battery monitors ,Charge current adjustable.Standant charge current 4A,Support more discharge time and more capacity battery ,Support three phase input or single phase input for three phase UPS,Super wide input voltage and frequency range suitable for bad power electirc environment,Digital control DSP technology and best power component make the system safe and reliable.
Technical Parameters
| Model | HP9116C Plus 1-3KVA | ||||||
| 1KT | 1KT-XL | 2KT | 2KT-XL | 3KT | 3KT-XL | ||
| Rated Power | 1KVA/0.9KW | 2KVA/1.8KW | 3KVA/2.7KW | ||||
| Rated Voltage | 220/230/240VAC | ||||||
| Rated Frequency | 40/70 Hz | ||||||
| Rated Frequency | |||||||
| Voltage Range | 115~300VAC (±3VAC) | ||||||
| THDi | 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ) | ||||||
| Power Factor | > 0.98 | ||||||
| Output | |||||||
| Voltage Regulation | 220±2%VAC | ||||||
| Frequency Regulation | 50/60 Hz±0.05Hz | ||||||
| Power Factor | 0.9 | ||||||
| Voltage Distortion | Linear load＜4％ Non-linear load＜7％ | ||||||
| Overload Capability | 110%~150% for 47-25 sec；150%~200% for 25 -300ms; >200% for 200m | ||||||
| Current Crest Ratio | 3∶1 | ||||||
| Transfer Time | 0ms (AC mode→Battery mode) | ||||||
| Efficiency(on line mode) | 89% | 90% | 90% | ||||
| Battery | |||||||
| DC Voltage | 24 VDC | 36 VDC | 48 VDC | 72 VDC | 72VDC | 96VDC | |
| Recharge Time | 7hrs to 90% of capacity | ||||||
| Recharge Current | 1A | 6A | 1A | 6A | 1A | 6A | |
| Display | |||||||
| LCD | Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate. | ||||||
| Communication | |||||||
| Interface | Smart RS232, SNMP(Optional),USB (Optional) | ||||||
| Environment | |||||||
| Operation Temperature | 0~40℃ | ||||||
| Humidity | 20~90% (Non-condensing) | ||||||
| Storage Temperature | -25℃~55℃ | ||||||
| Sea Level Elevation | ＜1500m | ||||||
| Noise Level (1m) | ＜45dB | <50dB | |||||
| Physics Characteristic | |||||||
| Dimensions: Wx D x H )mm | 145X345X229 | 192X393X328 | |||||
Mainly application
Data centre, bank station, network , communication equipment, office, automatic equipment,
monitor equipment, control system

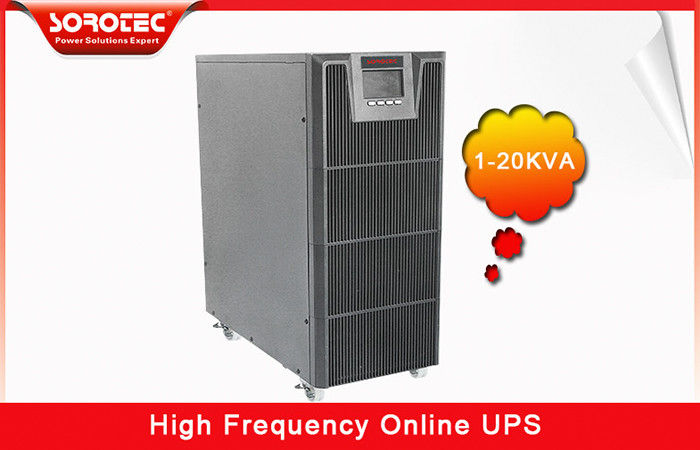

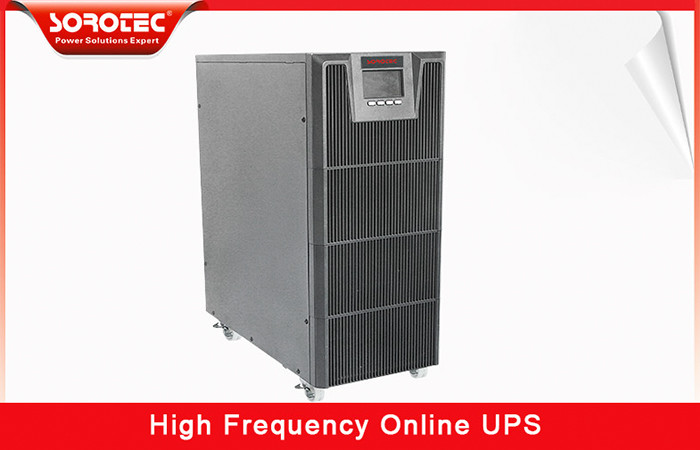

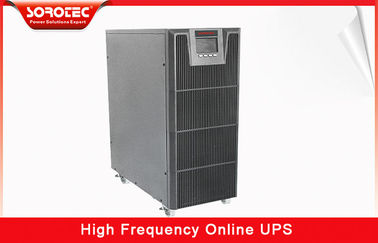

Product Show:
