1-3KVA Capacity Inverter High Frequency Online UPS 1Ph in 1Ph out , Small Size

Minimum Order Quantity : 2PCS High Frequency Online UPS Price : 1-1000USD
Packaging Details : Standard Exported Cartons and Pallets for High Frequency Online UPS Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 3000PCS/Month for High Frequecy Online UPS
Place of Origin: China Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000 Model Number: HP9116C Plus 1-3KVA Online UPS

Detail Information

Product Name: Uninterrupted Power Supply UPS Capacity: 1-3KVA
Power Factor: 0.9 Input Voltage: 115-300VAC
UPS Phase: 1Ph In 1Ph Out Sell Points: High Flexible And Multifunction
Small Size: Yes Service: Sample Available
Certificate: CE
High Light:

ups uninterruptible power supply

,

high frequency ups

Product Description



1-3KVA Capacity Inverter High Frequency Online UPS 1Ph in 1Ph out , Small Size



Quick Detaile:

Product name  uninterrupted power supply UPS
 Model HP9116C PLUS  1-3Kva
Power Factor 0.9
Transfer Time 0ms
Input Voltage 115-300VAC
Communication Port RS232,SNMP card and USB optional
Frequency Range 40-70HZ
Sample service and OEM/ODM produce  available



Key Features:

  • Output power factor up to 0.9,Input THDI<5%.
  • High efficiency up to 98% in ECO mode
  • Input power factor up to 0.99 can take more load
  • Three phase input model support three phase PFC
  • Advanced parallel control technology support 3 units parallel operation
  • Frequency conversion provides more stable output
  • Flexible extension capacity and redundance management
  • Select trip technology can avoid and isolation system fault
  • Battery voltage can choose depend on capacity
  • Intelligent battery monitors ,Charge current adjustable
  • Support three phase input or single phase input for three phase UPS
  • Wide input voltage and frequency range suitable for bad power environment
  • Digital control DSP technology and best power component make the system safe and reliable.



Mainly application

Data centre, bank station, network , communication equipment, office, automatic equipment,

monitor equipment, control system





Technical Parameters

Model HP9116C Plus 1-3KVA
1KT 1KT-XL 2KT 2KT-XL 3KT 3KT-XL
Rated Power 1KVA/0.9KW 2KVA/1.8KW 3KVA/2.7KW
Rated Voltage 220/230/240VAC
Rated Frequency 40/70 Hz
Rated Frequency
Voltage Range 115~300VAC (±3VAC)
THDi 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ)
Power Factor > 0.98
Output
Voltage Regulation 220±2%VAC
Frequency Regulation 50/60 Hz±0.05Hz
Power Factor 0.9
Voltage Distortion Linear load<4% Non-linear load<7%
Overload Capability 110%~150% for 47-25 sec;150%~200% for 25 -300ms; >200% for 200m
Current Crest Ratio 3∶1
Transfer Time 0ms (AC mode→Battery mode)
Efficiency(on line mode) 89% 90% 90%
Battery
DC Voltage 24 VDC 36 VDC 48 VDC 72 VDC 72VDC 96VDC
Recharge Time 7hrs to 90% of capacity
Recharge Current 1A 6A 1A 6A 1A 6A
Display
LCD Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate.
Communication
Interface Smart RS232, SNMP(Optional),USB (Optional)
Environment
Operation Temperature 0~40℃
Humidity 20~90% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <45dB <50dB
Physics Characteristic
Dimensions: Wx D x H )mm 145X345X229 192X393X328





Product Show:

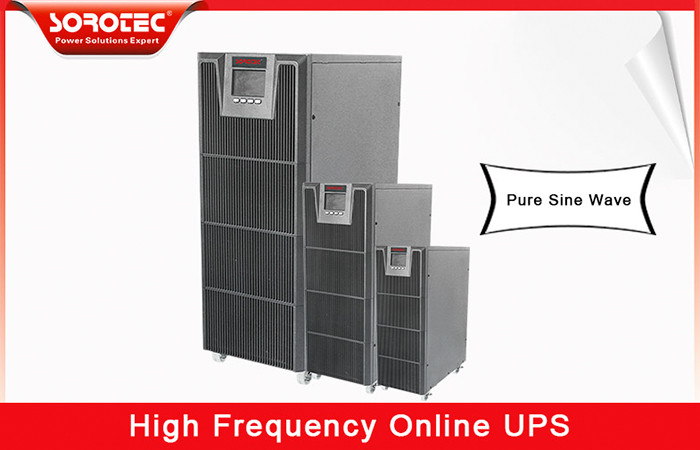

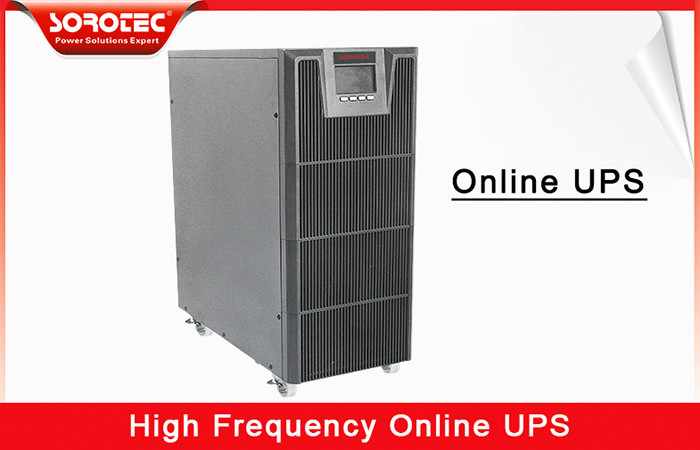

1-3KVA Capacity Inverter High Frequency Online UPS 1Ph in 1Ph out , Small Size 0
