RS232 Low Frequency Uninterruptible Power Supplies / Telecom Remote Control UPS

China RS232 Low Frequency Uninterruptible Power Supplies / Telecom Remote Control UPS supplier
RS232 Low Frequency Uninterruptible Power Supplies / Telecom Remote Control UPS supplier RS232 Low Frequency Uninterruptible Power Supplies / Telecom Remote Control UPS supplier

Large Image :  RS232 Low Frequency Uninterruptible Power Supplies / Telecom Remote Control UPS

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: GP9332C 10 - 200KVA

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS Low Frequency Online UPS
Price: 1000-10000 USD
Packaging Details: Standard Exported Cartons and Pallets for Low Frequency Online UPS
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping,
Supply Ability: 3000PCS/Month for Low Frequency Online UPS
Contact Now
Detailed Product Description
Product Name: Online UPS Power Supply For Telecom Model: GP9312C Series 10-100KVA
Output Power Factor: 0.8 Backup Power Solution: Yes
Isolation Transformer: Yes Parallel: N+X Redundancy
Frequency: 45-65HZ



RS232 Low Frequency Uninterruptible Power Supplies / Telecom Remote Control UPS



GP9312C Series Low Frequency Online UPS,Capacity from 10KVA to 100KVA,3Ph in/1Ph out and pure sine wave output,Output power factor 0.8,Support maximum 8 units for parallel or N+X redundancy, OEM/OEM produce,LOGO customized and Sample is available.



Key Features:

  1. Economic Operation Mode(EPO) and the efficiency>98%
  2. Emergency power off (EPO) by remote control
  3. Output power factor is 0.8
  4. Advanced IGBT technology
  5. Support 6 units UPS in parallel or N+X redundancy
  6. Full microprocessor control with no-break static and manual bypass
  7. Event log with 128 messages,states,measurement and alarms
  8. The load is powerd continuously by the inverter with a filtered
  9. On-line double conversion technology with isolation transformer
  10. BACK FEED protection to avoid energy feeding back into the mains supply cause a fault occur

Technical Specifications of Online UPS GP9332C 10-200KVA


Model
GP9332C 10-200KVA
Rated Power (KVA) 10KVA 15KVA 20KVA 30KVA 40KVA 60KVA 80KVA 100KVA 120KVA
Active Power (KW) 8KW 12KW 16KW 24KW 32KW 48KW 64KW 80KW 90KW
Input
Nominal Voltage 380/400/415VAC 3-phase
Voltage tolerance 400V + 20%/ -25%
Frequency 45 ÷ 65 Hz
Soft Start 0 ÷ 100% in 30’’ (selectable)
Permitted frequency tolerance ± 2% (selectable from ± 1% to ± 5% from the front panel)
Standard features Back Feed protection; separable bypass line
Battery
Type Lead, flooded and VRLA AGM / GEL; NiCd
AC ripple < 1%
Temperature compensation -0.5V × ℃
Typical charging current 0.2 × C10
Output
Number of phase 3 + N
Nominal voltage 380/400/415VAC 3-phase +N
Static stability ± 1%
Dynamic stability ± 5% in 10ms
Voltage distortion <1% with linear load ; < 3% with no-Linear load
Crest factor (lpeak/1rms) 3:1
Frequency stability on battery mode 0.05%
Frequency 50 or 60Hz (selectable)
Overload 110% for 60’ ; 125% for 10’; 150% for 1’
Environment
Remote signaling Voltage-free contacts
Remote commands EPO and bypass
Communication Double RS232 + remote contacts +2 communication interface slots
Operating Temperature 0 ℃ / + 40 ℃
Relative humidity < 95% non condensing
Colour Light grey RAL 7035
Noise 54 60 62 63 ÷ 68 dBA at 1m
Protection rating IP20
Efficiency Smart Mode Up to 98%
Compliance European Directives: LV 2006/95/CE; EMC 2004/108/EC; Saftety IEC EN 62040-1;EMC IEC EN 62040-2 C2
Classification according to IEC 62040-3 (Voltage Frequency Independent) VFI –SS - 111
Physical parameters
Weight (kg) without batteries 210 220 230 280 330 450 600 640 650
Dimension (h×w×d) (mm)

1400 × 555

× 740

1400 × 800

× 740

1900 × 800

× 800

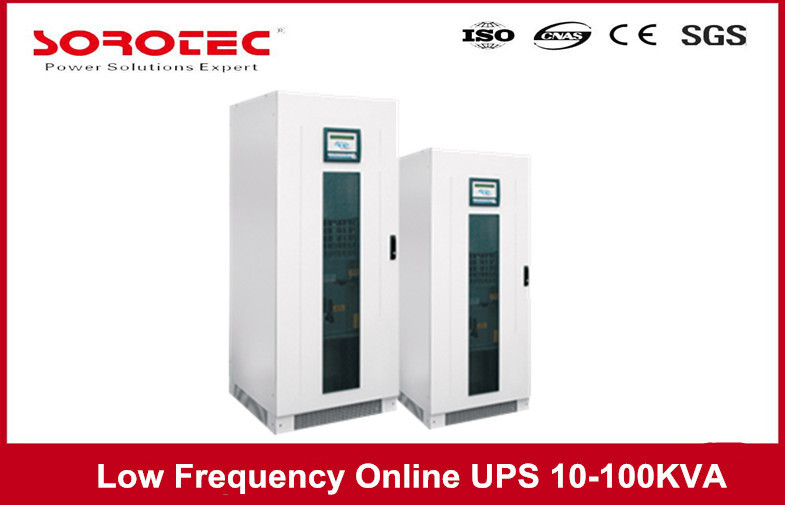

Product Show:

RS232 Low Frequency Uninterruptible Power Supplies / Telecom Remote Control UPSRS232 Low Frequency Uninterruptible Power Supplies / Telecom Remote Control UPS
