0.9 Power Factor Pure Sine Wave Ups Uninterruptible Power Supply with Flexible Extension Capacity

China 0.9 Power Factor Pure Sine Wave Ups Uninterruptible Power Supply with Flexible Extension Capacity supplier
0.9 Power Factor Pure Sine Wave Ups Uninterruptible Power Supply with Flexible Extension Capacity supplier 0.9 Power Factor Pure Sine Wave Ups Uninterruptible Power Supply with Flexible Extension Capacity supplier 0.9 Power Factor Pure Sine Wave Ups Uninterruptible Power Supply with Flexible Extension Capacity supplier

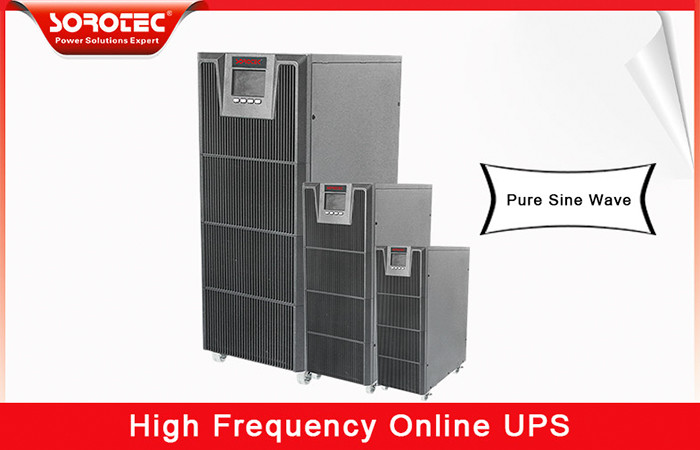

Large Image :  0.9 Power Factor Pure Sine Wave Ups Uninterruptible Power Supply with Flexible Extension Capacity

Product Details:

Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: HP9116C/HP9316 Plus 1-20K

Payment & Shipping Terms:

Minimum Order Quantity: 2
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Contact Now
Detailed Product Description
Frequency Regulation: 50/60HZ±0.05 Hz Power Factor: 0.9
Voltage Distortion: Linear Load<2% ,Non-Linear Load<5% Transfer Time: 0ms (AC Mode→Battery Mode)
Operation Temperature: 0~40℃ Humidity: 0~95% (Non-condensing)
Nominal Voltage: 208/220/230/240VAC Parallel Working: 3 PCS UPS



0.9 Power Factor Pure Sine Wave High Frequency Online UPS with 50/60Hz Frequency Conversion





Multifunction friendly design

Advanced parallel technology

1. Stable parallel control technology make sure current sharing to 1%

2. Select trip technology can avoid and isolation system fault then improved system availability

3. Flexible extension capacity and redundance management that can satisfy all kinds of requirements

4.Support maximum 3 units for parallel working Flexible strategy

5.On line mode provides higher system availability

6.High efficiency mode provides more economic operation

7.Frequency conversion provides more stable output





Brief Introduction

1.Battery voltage can be choice depend on capacity , can satisfy different requirement.

2.Convenience to get more back up time and lower system invests

3.Convenience to save cost of battery

4.Intelligent battery monitors Charge current can be adjust

5.Standant charge current 4A

6.Support more discharge time and more capacity battery for 8A charger Input topology design

7.Support three phase input or single phase input for three phase UPS

8.Super wide input voltage and frequency range suitable for bad power electirc environment

9.Digital control DSP technology and best power component make the system safe and reliable





Main function

Output power factor up to 0.9

1.Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.Input power factors up to 0.99

2.Three phase input model support three phase PFC , input THDI<5%

3.Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.

The efficiency up to 94%

4.Efficiency up to 93.5%when take the 30%load

5.ECO mode efficiency up to 98%





Technical Parameters



Model HP9116C/HP9316C 10-20KVA PLUS
10KT-XL 15KT-XL 20KT-XL
Rated Power 10KVA/9KW 15KVA/13.5KW 20KVA/18KW
Rated Voltage 220VAC/380VAC 3phase with ground
Rated Frequency 40-70 Hz (50/60 Auto-sense)
Input
Voltage Range Single phase: 120 ~ 275VAC ( 176-275VAC full load ) Three phase: 209-475VAC ( 304-475VAC full load)
Power Factor >0.95(Three phase) ≥0.99
Output
Voltage Regulation 208/220/230/240VAC (±1%)
Frequency Regulation 50/60HZ±0.05 Hz
Power Factor 0.9
Voltage Distortion Linear load<2% ,Non-Linear load<5%
Overload Capability 105% ~ 125% for 10min; 125% ~ 150% for 30s,>150% for 500 ms
Current Crest Ratio 3:01
Transfer Time 0ms (AC mode→Battery mode)
Battery
DC Voltage 192VDC 192/216V/240VDC
Recharge Current 4A 4A (8A optional)
Display
LCD Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate.
Communication
Interface Smart RS232,SNMP card (optional) USB (optional)
Environment
Operation Temperature 0~40℃
Humidity 0~95% (Non-condensing)
Storage Temperature -25℃~55℃
Sea Level Elevation <1500m
Noise Level (1m) <55dB
Physics Characteristic
Weight(KG) 16.9 31
Dimensions :(Wx D x H)mm 212X420X500 248X565X500
