Transformer Type Micro Sine Wave Power Inverter with MPPT Solar Charge Controller

China Transformer Type Micro Sine Wave Power Inverter with MPPT Solar Charge Controller supplier
Transformer Type Micro Sine Wave Power Inverter with MPPT Solar Charge Controller supplier Transformer Type Micro Sine Wave Power Inverter with MPPT Solar Charge Controller supplier

Large Image :  Transformer Type Micro Sine Wave Power Inverter with MPPT Solar Charge Controller

Product Details:

Place of Origin: Shenzhen,China
Brand Name: SOROTEC
Certification: CE,ROHS,RSO9000
Model Number: IG3115CS 1-12KW

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS (Inverter Sample Are Available)
Price: Negotiable

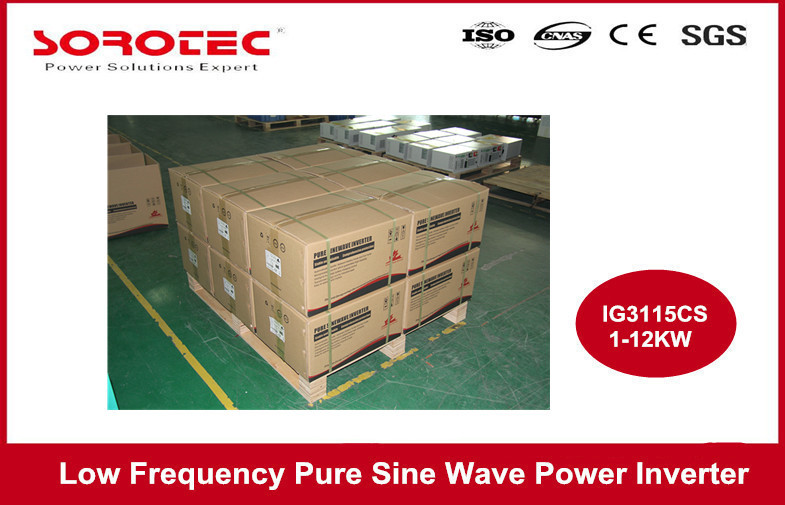

Packaging Details: Standard Exported Cartons and Pallets for Power Inverters
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: Western Union, T/T, L/C
Supply Ability: 5000PCS Per Month For Low Frequency Pure Sine Wave Inverters
Contact Now
Detailed Product Description
Product: Low Frequency Inverter Model: IG3115CS 1-12KW
Capacity: 1-12KW Waveform: Pure Sine Wave
Battery Voltage: 12V/24V/48V/96V Transfer Time: 10ms Typical
Output Power Factor: 0.9-1.0 Nominal Voltage: 230VAC, 120VAC(optional)
Certification: CE

Transformer Type Micro Power Inverter could be built-in MPPT Solar Charge Controller



Low Frequency Pure Sine wave Power Inverter,bypass and bypass voltage regulation,allow generator output ,provide reliable long backup power supply for home and office appliances.



IG3115CS Series Pure Sine Wave Output Inverter Key Features:

1.Pure sine wave output
2.The charging current is big up to 85 Amp
3.Output power factor:s 0.9-1
4.Well accept generator’s output
5.Full automatical and silent operation
6.Automatically transfer between battery and line modes
7.Microprocessor control guarantees high reliability
8.Remote control function
9.Three-steps intelligent charging control to recharging time
10.Bypass and bypass voltage regulation function
11.Could be setting frequency by LCD display with color screen
12.Battery type and charge current can be select





Technical Specification of Pure Sine Wave Inverter IG3115CS Series:

MODEL IG3115CS 1-12KW Pure Sine wave Output Inverter
1KW 1.5KW 2KW 3KW 4KW 5KW 6KW 8KW 10KW 12KW
Input  Wave form Sine wave (utility or generator)
Nominal Voltage 230Vac (120Vac optional)
Low voltage trip 90v ±4% & 184v/154v ±4%
Low voltage re engage 100v ±4% & 194v/164v±4%
High voltage trip 140v ±4% & 253v ±4%
High voltage re engage 135v ±4% & 243v±4%
Nominal Input Frequency 50Hz/ 60Hz (auto detection)
Frequency range 47Hz~65Hz
Output Wave form (Bypass mode)same as input
Efficiency on line transfer mode ≥95%+
Line transfer time 10ms Typical
Bypass without battery connected Yes
Inverter specification/output
Output wave form Pure sine wave
Output continuos power watts 1000 1500 2000 3000 4000 5000 6000 8000 10000 12000
Output continuos power VA 1000 1500 2000 3000 4000 5000 6000 8000 10000 12000
Power factor 0.9-1.0
Nominal Output Voltage rms 230Vac (120Vac optional)
Output Voltage regulation +/- 10%rms
Output frequency 50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Safety Certification >88%
Surge ratings 3000 4500 6000 9000 12000 15000 18000 24000 30000 36000
Short circuit protection Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage 12V/24V/48V 48V/96V
Minimum start voltage 10V/20V/40V 80V
Low battery alarm 10.5V/21V/42V 84V
Low battery trip 10V/20V/40V 80V
High voltage alarm 16V/32V/64V 128V
Power saver Same switched on/off on remote
Charger mode specification
Output voltage Dependent on battery type
Charge current 0-85A MAX 70/35A 85/45A  100/50A
Battery initial voltage for start up 0-15.7v for 12v(*2 for 24v;*4 for 48v;*8 for    96v)
Over charge protection shutdown 15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v)
Charger curves(4stage constant curren) battery types
4 step digital controlled progressive charge
Battery type Fast V                                                   Fast V(*2 for 24v;*4 for 48v)
Gel U.S.A 14                                                                 13.7
A.G.M. 1 14.1                                                               13.4
A.G.M. 2 14.6                                                               13.7
Sealed lead acid 14.4                                                               13.6
Gel euro 14.4                                                               13.8
Open lead acid 14.8                                                               13.3
Calcium 15.1                                                               13.6
De-sulphation 15.5 for 4 hrs
Remote control/RS232/USB Yes. Optional






Transformer Type Micro Sine Wave Power Inverter with MPPT Solar Charge Controller
