Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
Minimum Order Quantity : | 1PCS Inverter ( Sample Are Available) | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Standard Exported Cartons and Pallets for solar power inverter system | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
Payment Terms : | Western Union, T/T, L/C | Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
Place of Origin: | China | Brand Name: | SOROTEC |
---|---|---|---|
Certification: | CE,ROHS,ISO9000 | Model Number: | SSP3111C Plus 1-2KVA |
Detail Information |
|||
Product Name: | Solar Power Inverter System | Capacity: | 1-2KVA |
---|---|---|---|
Wave Form: | Modified Sine Wave | Power Factor: | 0.7 |
Solar Controller: | PWM Solar Charge Controller | Frequency: | 50/60hz |
Convertion: | DC To AC | Application: | Solar Power System |
Color: | Red Color | ||
High Light: | solar power inverter for home,solar energy inverter |
Product Description

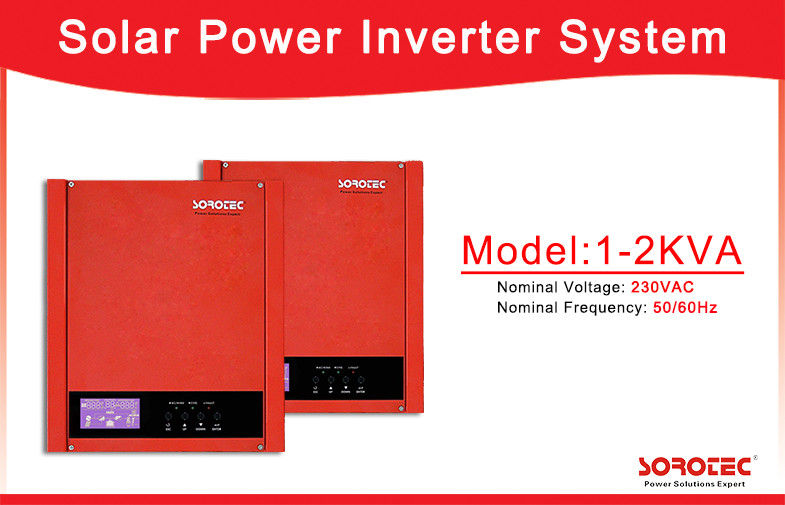

Built-in PWM Solar Charge Controller Solar Power Inverter System 1000VA 720W 12V 230VAC
Modified Sine Wave Solar Inverter with PWM Solar Charge Controller SSP3111C 1-2KVA,Off-Grid Modified Sine Wave Solar Power Inverter with 40A PWM controller supply continous backup power for home and office appliance,solar power system.etc.
SOROTEC SSP3111C Plus
Model | SSP3111C 1-2KVA |
Nominal Voltage | 220/230/240VAC |
Nominal Frequency | 50/60HZ |
Output power factor | 0.7 |
Battery charge current | 15/20A(optional) |
Application | Solar power |
Key Features
1.Built-in PWM solar charge controller.
2.Modified sine wave output.
3.High frequency design.
4.Optional input voltage range.
5.Full automatic and silent operation.
6.Automatic charging.
7.Automatic transfer AC-DC
8.Over-load protection.
9.Automatic restart.
10.Three-steps intelligent charging control to recharging.

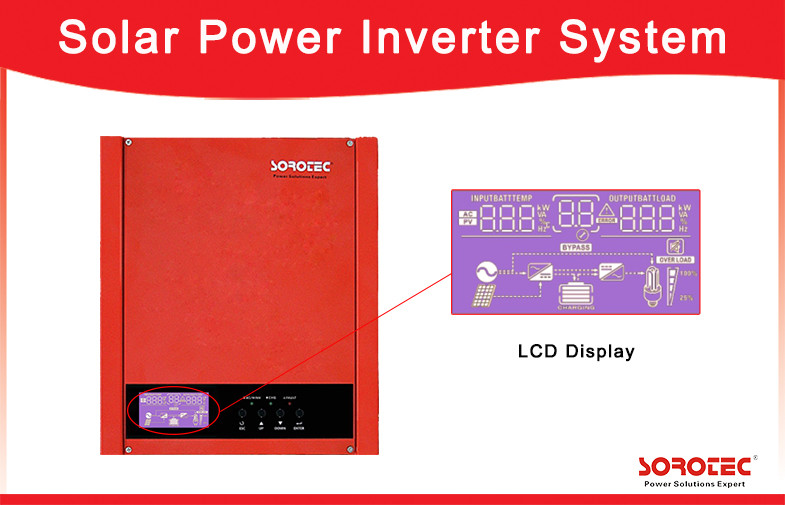

11.LCD display, audible and visual alarm.
Protection
Protection for low battery voltage,overload,output short circuit and overtemperature restrain surge interference,eliminate noise,protection for thunderstriking,provide the reliable power to the home appliances
Applications
Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.
Product Descriptions of Off Grid Hybrid Solar Inverter With Charger
Model | SSP3111C Plus 1000-2000VA | |
1000-12 | 2000-24 | |
Capacity | 1000VA/720W | 2000VA/1440W |
Nominal Voltage | 220/230/240VAC | |
Nominal Frequency | 50/60Hz | |
Input | ||
Voltage Range | 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range) | |
Frequency Range | 50/60Hz | |
Output | ||
Voltage Regulation | 230VAC±10% | |
Frequency Regulation | 50/60Hz±0.1Hz | |
Wave Form | Modified Sine wave | |
Utility to battery mode | 15-20ms typical(narrow range); 40ms max(wide range) | |
Battery mode to Utility | 10ms max | |
Battery mode efficiency | >80% | |
Line mode efficiency | >95% (battery full charged) | |
Battery | ||
DC Voltage | 12V | 24V |
Overcharge Protection | 16V | 32V |
Charge Current | 15A/20A | 10A |
LCD Display & LED Indicate | ||
Line mode | Line mode 1, charge current >3A Green flashing every 2 seconds | |
Line mode 2,charge current ≦3A Green solid lighting | ||
Off-charge mode Green flashing as cycle: | ||
Battery Mode | Yellow lighting | |
Overload | Red flashing every 0.5 second | |
Fault | Red lighting | |
SOLAR CHARGE | ||
Maximum PV Array Open Circuit Voltage | 55VDC | |
PV Optimal Work Voltage | 15V~18Vdc | 30-36Vdc |
Maximum Charging Current | 50A | |
Maximum Efficiency | >96% | |
Standby Power Consumption | <20W | |
Environment | ||
Temperature | 0°C~40°C | |
Humidity | 5%-95% (<40°C, Non-condensing) | |
Storage Temperature | -15°C~55°C | |
Elevation | <1500m | |
IP Proyection level | IP20 | |
PHYSICAL | ||
Dimension,D×W×H (mm) | 298.9×250×105 | |
Net Weight (kgs) | 2.62 | 2 |
