Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS (Sample are Available) | Price : | Price Negotiable |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for modified sine wave solar inverter | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | 30% TT in advance, the balance before shipping, L/C, T/T | Supply Ability : | 50000PCS/Month for Inverter |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | SSP3111C Plus 1000-2000VA |
|
Detail Information |
|||
| Product Name: | SSP3111C Series Micro Solar Inverter | Inverter Power: | 1-2KVA |
|---|---|---|---|
| Nominal Voltage: | 220/230/240VAC | Dc Voltage: | 12/24VDC |
| Display: | LCD&LED | Wave Form: | Modified Sine Wave |
| Built-in: | PWM Solar Charge Controller | Applications: | Computers |
| Color: | Red | ||
| High Light: | solar energy inverter,home power inverter |
||
Product Description

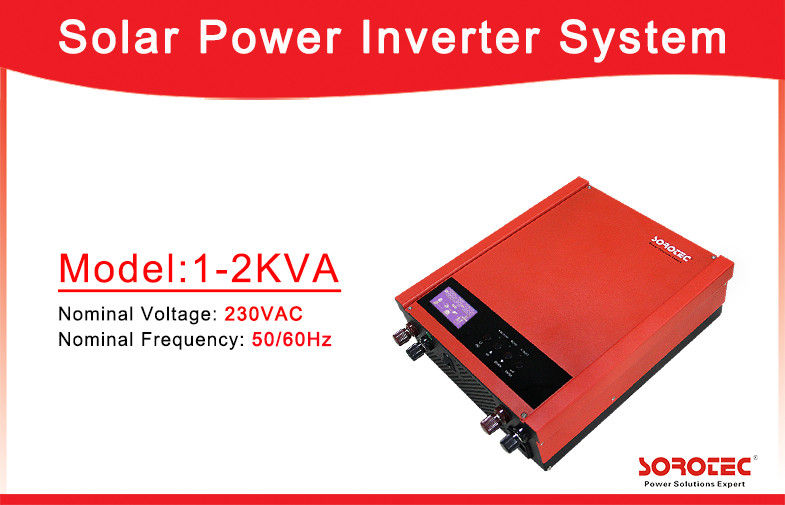

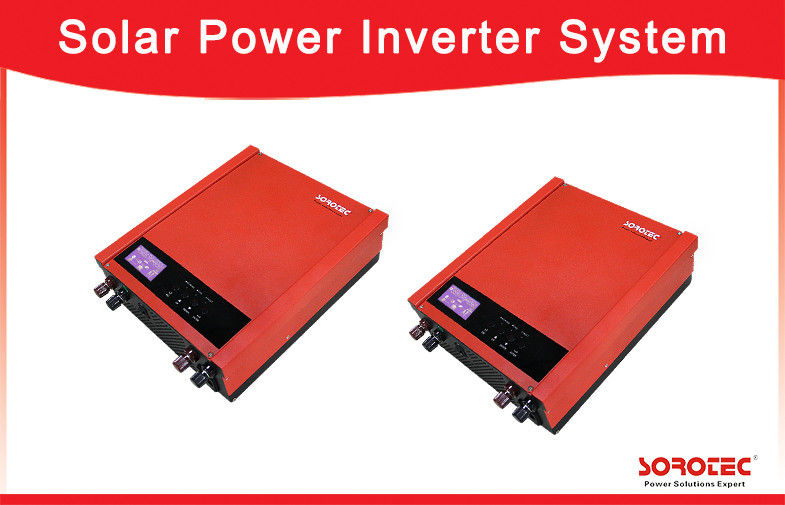

SSP3111C Plus Series Micro Solar Inverter Single Phase Solar Power Inverters 1~ 2KVA
SSP3111C Series high frequency modified sine wave solar power inverter
Quick Detailes:
Battery Voltage:
1000VA /720W/12VDC,2000VA/1300W/24VDC
Working with:
Solar Panels/Battery/Utilities/Generators/Miocro Home Appliances
Charging Current:
15A/20Amp optional for 1kva,10Amp for 2kva
Input Voltage Range:
170-280VAC (Narrow Range); 90-280VAC (Wide Range)
Key Features:
1.Built-in PWM solar charge controller.
2.Modified sine wave output.
3.High frequency design.
4.Optional input voltage range.
5.Full automatic and silent operation.
6.Automatic charging.
7.Automatic transfer AC-DC
8.Over-load protection.
9.Automatic restart.
10.Three-steps intelligent charging control to recharging.
11.LCD display, audible and visual alarm.
Application:
This type solar power inverter widely used to provide the reliable long time backup power supply for the household appliances office appliances (Personal computer/TV/DVD/Electric fan/FM Radio)solar power system.etc
Product Descriptions of Solar Inverter
| Model | SSP3111C Plus 1000-2000VA | |
| 1000-12 | 2000-24 | |
| Capacity | 1000VA/720W | 2000VA/1440W |
| Nominal Voltage | 220/230/240VAC | |
| Nominal Frequency | 50/60Hz | |
| Input | ||
| Voltage Range | 170-280VAC±4%(Narrow Range) 90Vac~280VAC±4%(Wide Range) | |
| Frequency Range | 50/60Hz | |
| Output | ||
| Voltage Regulation | 230VAC±10% | |
| Frequency Regulation | 50/60Hz±0.1Hz | |
| Wave Form | Modified Sine wave | |
| Utility to battery mode | 15-20ms typical(narrow range); 40ms max(wide range) | |
| Battery mode to Utility | 10ms max | |
| Battery mode efficiency | >80% | |
| Line mode efficiency | >95% (battery full charged) | |
| Battery | ||
| DC Voltage | 12V | 24V |
| Overcharge Protection | 16V | 32V |
| Charge Current | 15A/20A | 10A |
| LCD Display & LED Indicate | ||
| Line mode | Line mode 1, charge current >3A Green flashing every 2 seconds | |
| Line mode 2,charge current ≦3A Green solid lighting | ||
| Off-charge mode Green flashing as cycle: | ||
| Battery Mode | Yellow lighting | |
| Overload | Red flashing every 0.5 second | |
| Fault | Red lighting | |
| SOLAR CHARGE | ||
| Maximum PV Array Open Circuit Voltage | 55VDC | |
| PV Optimal Work Voltage | 15V~18Vdc | 30-36Vdc |
| Maximum Charging Current | 50A | |
| Maximum Efficiency | >96% | |
| Standby Power Consumption | <20W | |
| Environment | ||
| Temperature | 0°C~40°C | |
| Humidity | 5%-95% (<40°C, Non-condensing) | |
| Storage Temperature | -15°C~55°C | |
| Elevation | <1500m | |
| IP Proyection level | IP20 | |
| PHYSICAL | ||
| Dimension,D×W×H (mm) | 298.9×250×105 | |
| Net Weight (kgs) | 2.62 | 2.76 |
